HD Intelligent Pedestrian Detection System

ADA32,HD140D

STONKAM® 1080P HD Intelligent Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle , on the side and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety! The intelligent pedestrian detection camera can be installed on the side, front and back of the vehicle, to intelligently detect pedestrians within 20M in real time. In addition, this system can be used in various vehicles, such as buses, coaches, trucks, and construction machinery, etc.

Anfrage

hinterlassen Sie Ihre Nachricht und Kontaktdaten, wir werden uns schnellstmöglich melden!

Typnr. Stellen Sie sich vor* Nachricht *

Merkmale

  • Easy installation

  • Waterproof/Dustproof rating: IP69K, with shock resistance of 5.9G

  • The detection distance of front and side view is: 0.5M-20M; the detection distance of rear view is: 0.5M-12M

  • Full high definition 1080P video output (overlaid with pedestrian tracking and warning box)

  • Audio alarm output, can be connected to monitors or other devices with loudspeaker

  • Lens parameters: side view camera: 6mm, with the horizontal angle of 52°; rear view camera: 2.3mm, with the horizontal angle of 140°

  • USB2.0 interface, can be connected to WiFi modules and USB

  • Calibration on the web page of the phone by connecting to the WiFi hotspot

  • Automatic upgrade via USB

  • 1 channel alarm output

Supply Voltage

DC10V~32V

Consumption (12V IN)

150mA(IR light off)

700mA(IR light on)

Video Format

25 or 30

Video Output

AHD(1.0Vp-p, 75Ohm)

Resolution

1920 x 1080P

Horizontal Viewing Angle

52°/140°

Audio Output

Warning sound signal output

Communication Interface

USB 2.0 (for software upgrade)

Cable Length

3M

Working Temperature

-20 ~ +70℃

Storage Temperature

-30 ~ +80℃

Waterproof Rating

IP69K

Dimension

95 x 60 x70(mm)

Weight

500g

Housing Color

Black



Side View:



Rear view:



Are you worried about following problems when driving

There are too many blind spots to notice vehicles and pedestrians?

The traffic is too complicated to avoid pedestrians and vehicles?

What can warn us of the potential danger when driving?

......



Schematic diagaram of bus blind spot

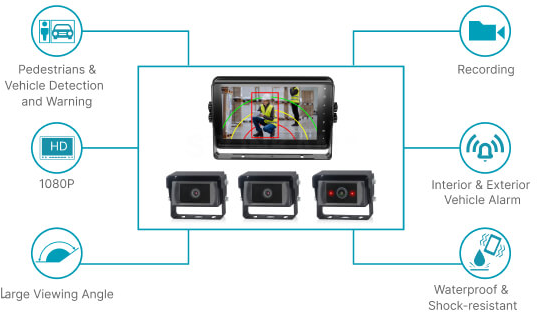

STONKAM 1080P HD AI Pedestrian & Vehicle Detection Camera Based on Deep Learning Complete Safeguard Your Driving

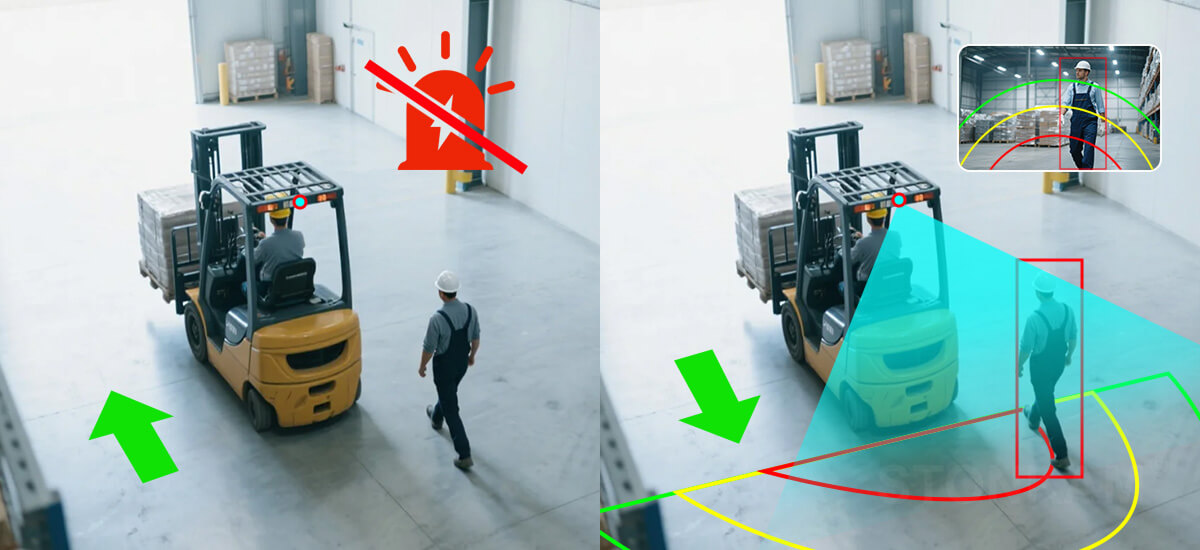

STONKAM® Intelligent Pedestrian & Vehicle Detection Camera is a device aiming to greatly enlarge the drivers field of vision. It can not only quickly detect pedestrians and vehicles, provide warning information to drivers in real time; but is featured with high detection accuracy, earning drivers more reaction time, thereby reducing the possibility of traffic accidents!



AI algorithm

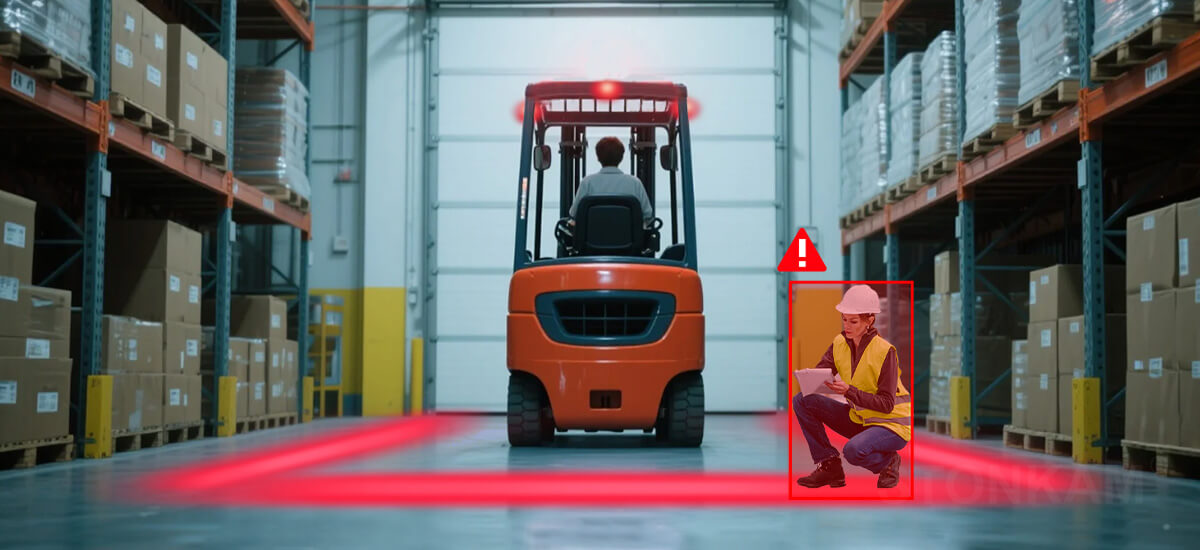

STONKAM® HD Intelligent Pedestrian & Vehicle Detection System adopts deep learning technology, contributing to the realization of intelligent and accurate pedestrian detection.

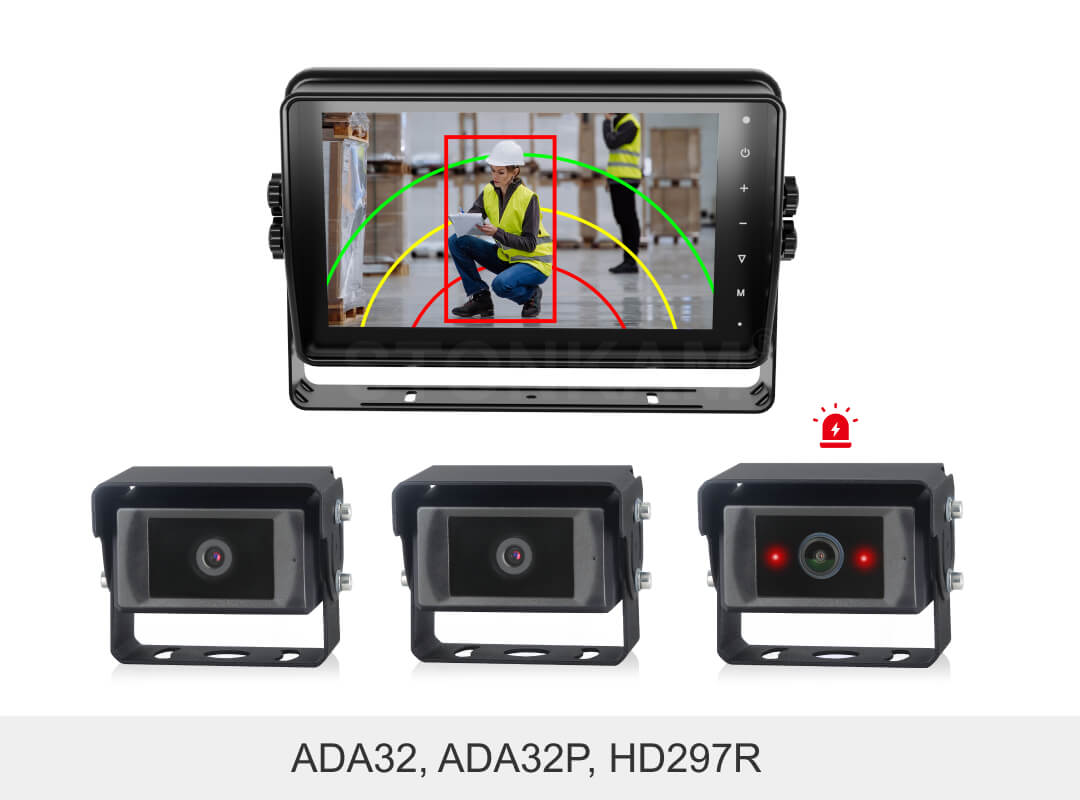

STONKAM 1080P HD Intelligent Pedestrian Detection Camera



STONKAM 1080P HD Intelligent Pedestrian Detection Camera



STONKAM 1080P HD Intelligent Pedestrian Detection Camera





IP69K waterproof, weatherproof and durable

STONKAM 1080P HD Intelligent Pedestrian Detection Camera

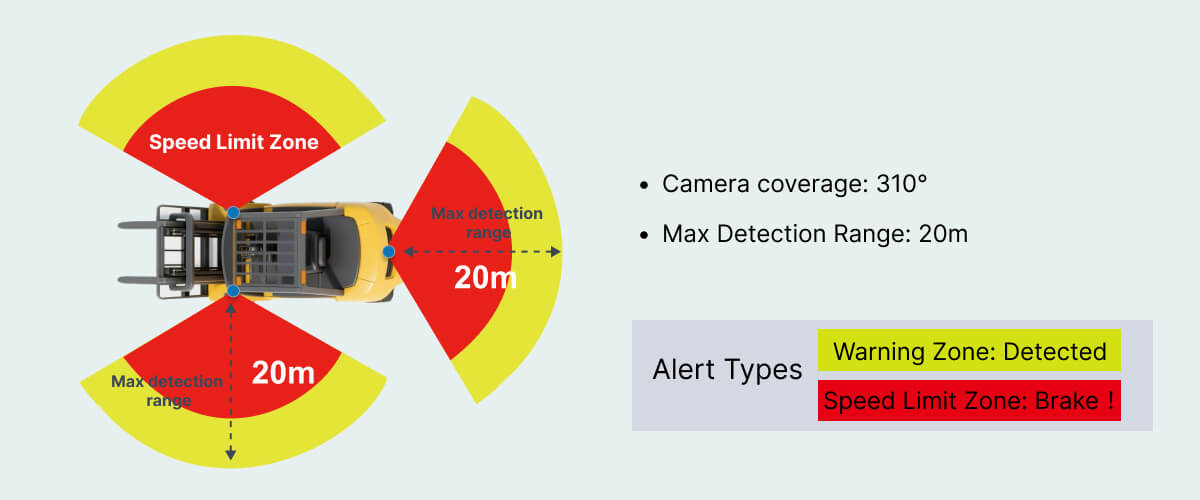

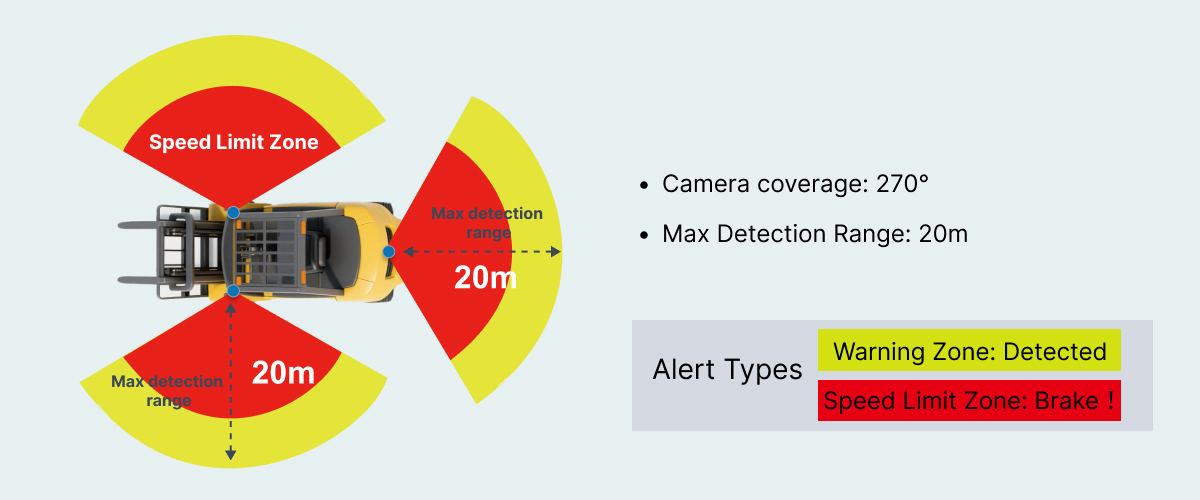

The distance for detection reaches up to 20 meters(side & front view)/12 meters(rear view)

STONKAM 1080P HD Intelligent Pedestrian Detection Camera



STONKAM 1080P HD Intelligent Pedestrian Detection Camera





Easy installation

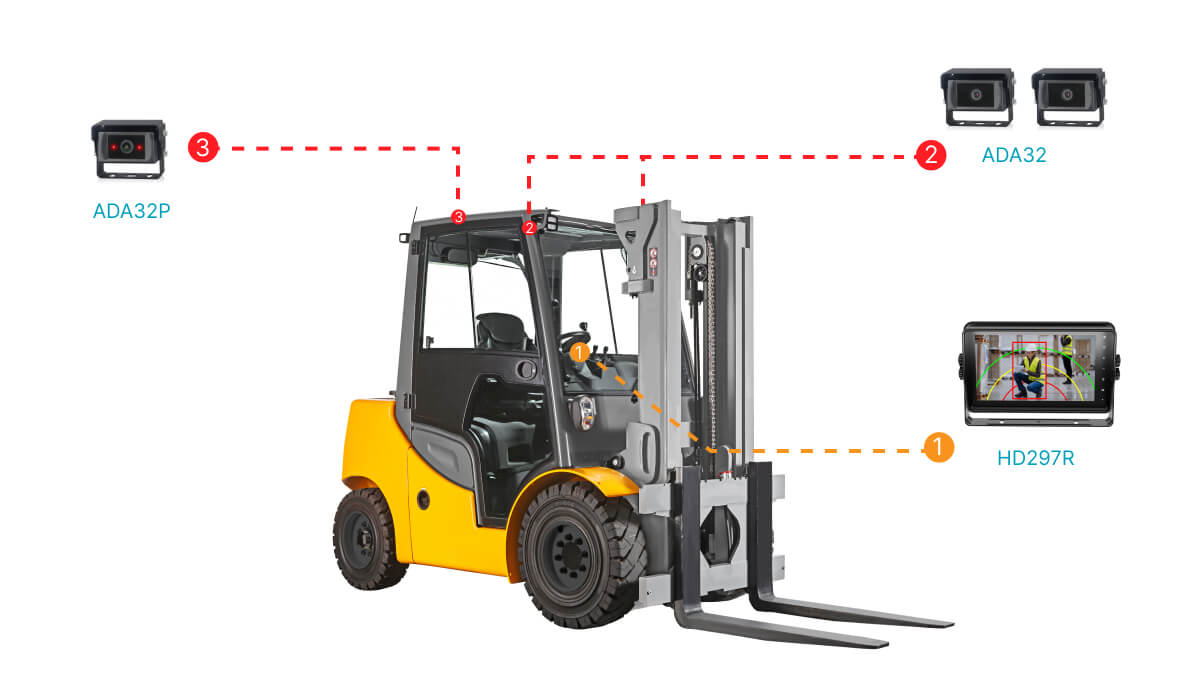

It can be installed on the side, front and back of the vehicle, with a suggested height of 1.0M-1.6M.

STONKAM 1080P HD Intelligent Pedestrian Detection Camera

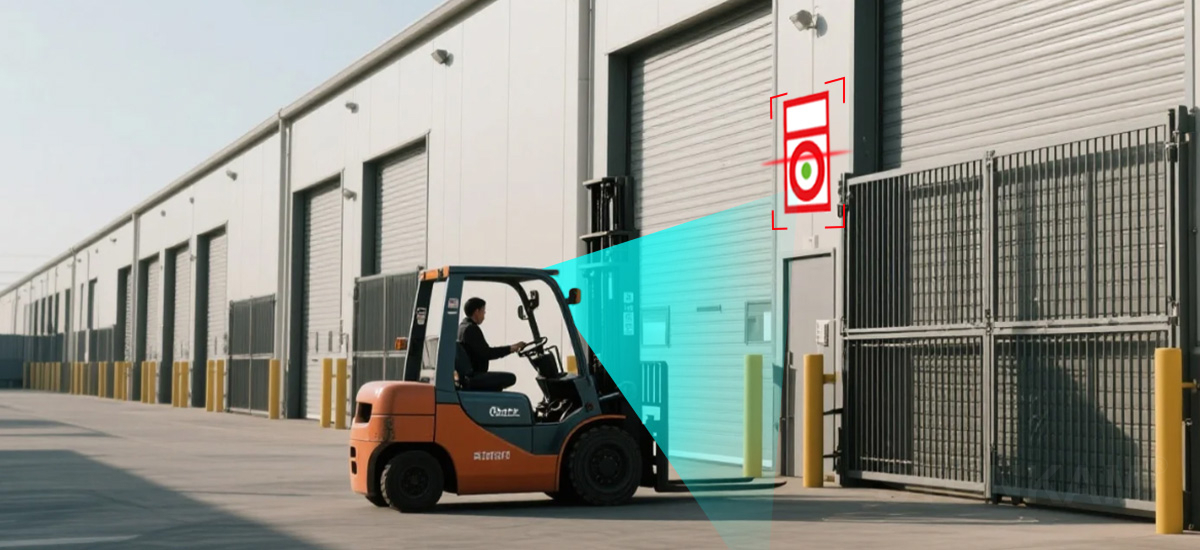

Application

STONKAM 1080P HD Intelligent Pedestrian Detection Camera
