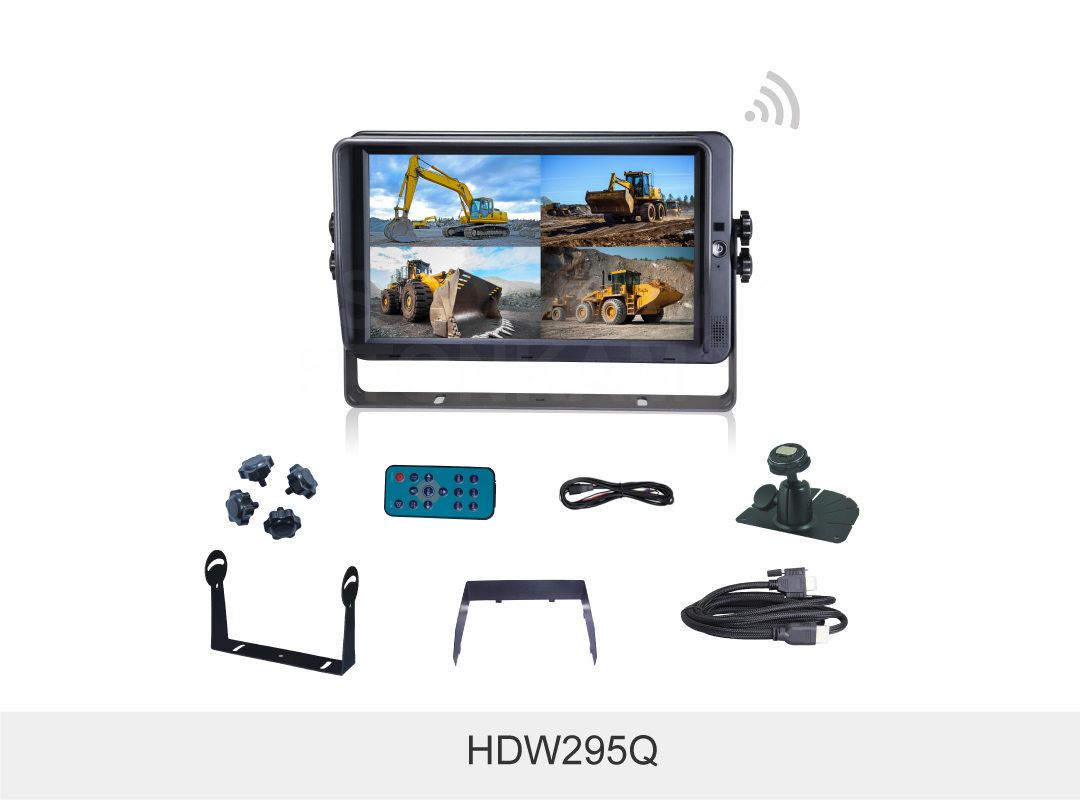

10.1 Inch HD Quad-view Wireless Monitoring System

HDW295Q,HDW897

STONKAM® 10.1 Inch HD Quad-view Wireless Monitoring System is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD digital wireless rear view camera to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Digital Wireless Camera System products.

Anfrage

hinterlassen Sie Ihre Nachricht und Kontaktdaten, wir werden uns schnellstmöglich melden!

Typnr. Stellen Sie sich vor* Nachricht *

Merkmale

  • Support 4CH wireless camera and wireless transmitter.

  • Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.

  • With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

  • Supports both manual and automatic pairing.

  • Supporting 1080P/720P camera input.

  • Touch screen optional.

  • Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.

  • Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.

  • Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.

  • Support power fail safeguard by super-capacitor.

  • Rear view parking lines can be configured.

Wireless monitor:

LCD size

10.1"

Resolution

1024x 3 (RGB) x600

Contrast

600:1

Brightness

600cd/m²

Viewing Angle

U:80 / D:85, R/L:85

Aspect Ratio

16:9

Channel

4 channels

Operating Frequency

2400MHz ~ 2483.5MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmitting power

FCC≤26dBm

CE≤20dBm

MIC≤10dBm

Decompression Form

H.264

Modulation

FHSS

Time Delay

200ms

Transmitting Distance

FCC≤300 M

CE≤200 M

MIC≤60 M

MicroSD

Max  128G

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10 W

Loudspeaker

1W/8Ω

Operating temperature

-20~+70ºC,RH90%

Storage temperature

-30~+80ºC,RH90%





Wireless camera:

Battery Capacity

3.6V/6400mAh

Charging Voltage

5V-12V

Charging Time

5V/8H,12V/3H

Charging Current

5V/1.5A(MAX),12V/1.5A(MAX)

Discharging Time

12H(daytime) 5H(night)

Charging Temperature

0~+40℃

Discharging Temperature

-20~+60℃

Storage Temperature

-20~+60℃

Waterproof Rating

IP69K

Size

116 x 80 x 66(mm)

Weight

670g

Sensor

1/2.9” CMOS SENSOR

Effective Pixels

1920 x 1080 pixels

AGC

Auto

S/N Ratio

38dB

White Balance

Auto

BLC

Auto

Operation Frequency

2403-2478MHZ

Transmission Distance (barrier free)

300m(20dBm)

Receiving sensitivity

-78dBm

Video Decode

H.264

Transmission power

10dBm/20dBm

Spread SPECTRUM

FHSS

Delay

170ms

RF Bit Rate

12Mbps

Minimum Illumination

0Lux

Night Vision Distance

8-10m

Audio

Optional

Viewing Angle

130°

IR cut function

Optional





What are the benefits of STONKAM® 10.1 inch Digital Wireless Vehicle Monitor System?





Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Wireless Monitoring System





Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Wireless Monitoring System





Open transmission distance up to 984ft (300m)

Wireless Monitoring System

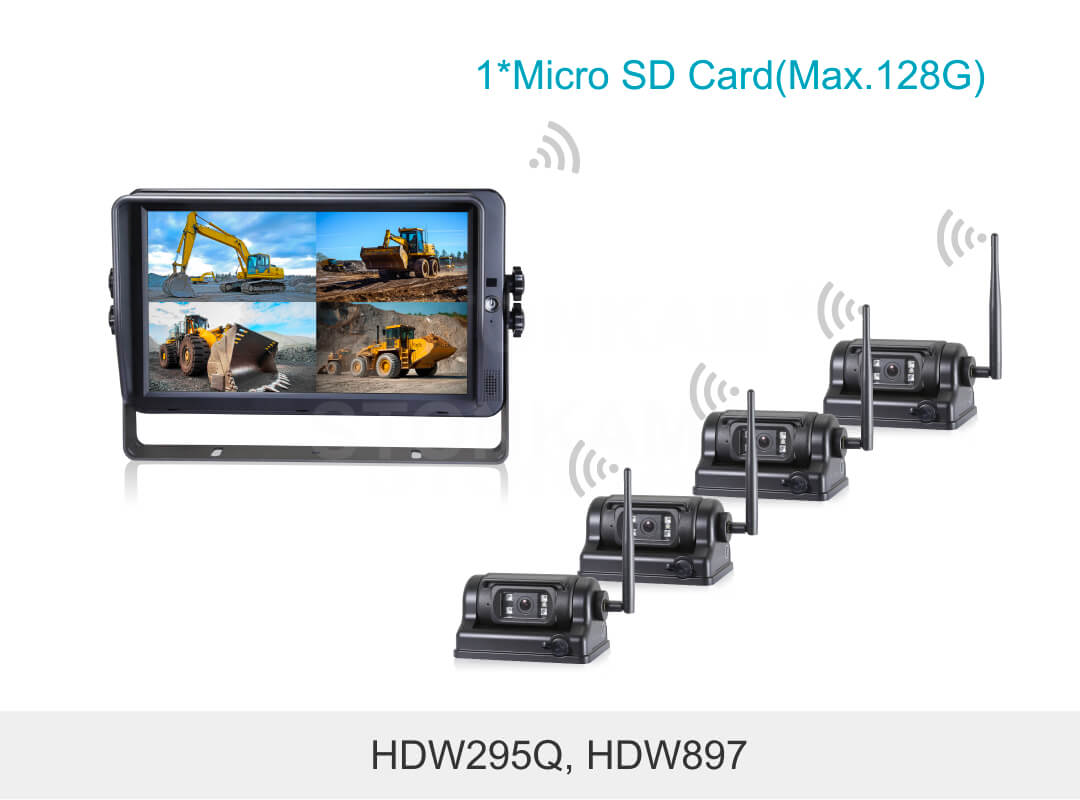

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

Digital Wireless Monitoring System






Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Digital Wireless Monitoring System





Touch screen optional

Digital Wireless Monitoring System





With magnetic base, no drilling, no wiring, easy installation!

With magnet base, STONKAM HD Wireless Camera can be installed  without drilling.

Digital Wireless Monitoring System




With rechargeable battery, it has up to 12 hours battery life, and has ultra-low standby power consumption

The rechargeable camera with battery has up to 12 hours battery life in the daytime, and can automatically stand by and wake up the monitor. When the standby power consumption is less than 0.01W, and it can save power without manual shutdown when not in use.

Wireless reverse camera





With IR-CUT function, night vision distance up to 10 meters

STONKAM  Vehicle Wireless Rechargeable Camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

Digital Wireless Monitoring System





IP69K Waterproof and dustproof+ Metal Body = Heavy Duty Camera

Waterproof Vehicle Wireless Rechargeable Camera





Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor System can be applied to various vehicles, such as forklift, crane, harvester, etc.

Digital Wireless Monitoring System

Harvester

Excavator

Digital Wireless System

Farm

Forklift

Digital Wireless Monitoring System

Crane

Planter
