360 Degree Surround View Control box:

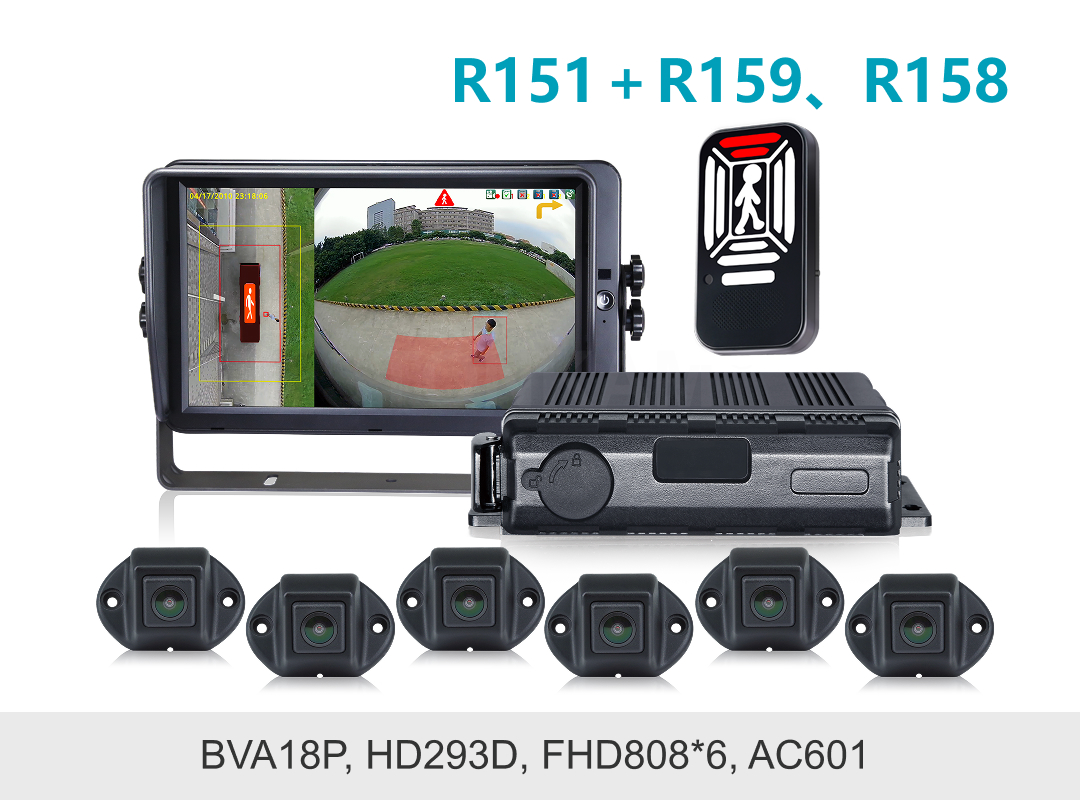

Compliant with UN ECE R151+R159, R158 regulations, eliminate lateral, anterior and rear blindness

6CH 1080P image, 360° seamless splicing

Specially designed for articulated buses, cranes, long trailers, container trucks, fire fighting trucks and other super long vehicles, 6CH ultra-wide angle HD cameras are spliced seamlessly to achieve real 360° panoramic bird view and zero blind spot monitoring, assisting in safe driving. Meanwhile, it also supports 360 surround view with 4 channels and other applications with 2 channels. In addition, expanding more camera inputs is feasible through Network Switch, meeting the monitoring demands of all kinds of vehicles.

One-minute calibration

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only 6 calibration mats are needed, and they can be placed randomly to achieve accurate calibration.
Calibration of 6 channel surround view system

Calibration of 4 channel surround view system

Dual AI Cores for Independent Processing, 2TOPS Computing Power

The control box supports dual AI cores for independent processing, achieving 2TOPS of AI computing power. This enables efficient execution of complex deep learning tasks and real-time image processing. It provides real-time analysis of complex road conditions and intelligent prediction of potential risks, ensuring comprehensive safety.

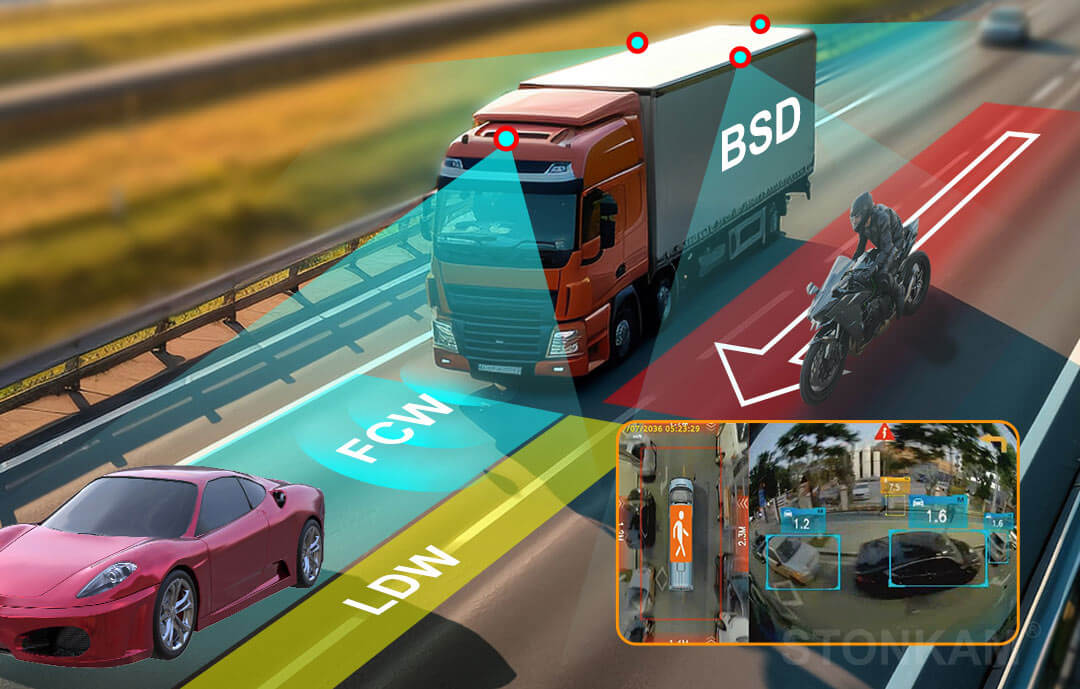

Built-in AI algorithm, integrating LDW+FCW+ BSD full area detection

Built-in AI algorithm, integrated with LDW+FCW+both sides BSD 360 degree detection, is able to detect lane departure, forward collision and overtaking/merging around the vehicle, and then to give an alarm.

AI-based pedestrian detection, all-around vehicle surround monitoring.

The control box is equipped with built-in processing capabilities, delivering more precise pedestrian detection. Each camera channel can cover a detection range of over 10 meters, providing comprehensive coverage with no blind spots.

Supports DMS algorithm, capable of monitoring driver fatigue.

Monitors driver fatigue and issues auditory and visual alarm.

Support radar access, and protect vehicle whole body

Able to work with radar and supporting the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards

Multiple viewing models, 3D and 2D switchable

360° panoramic image system,  in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing angles

Remote vehicle management

It could be connected to platform to achieve remote vehicle management via 4G network.

Applications

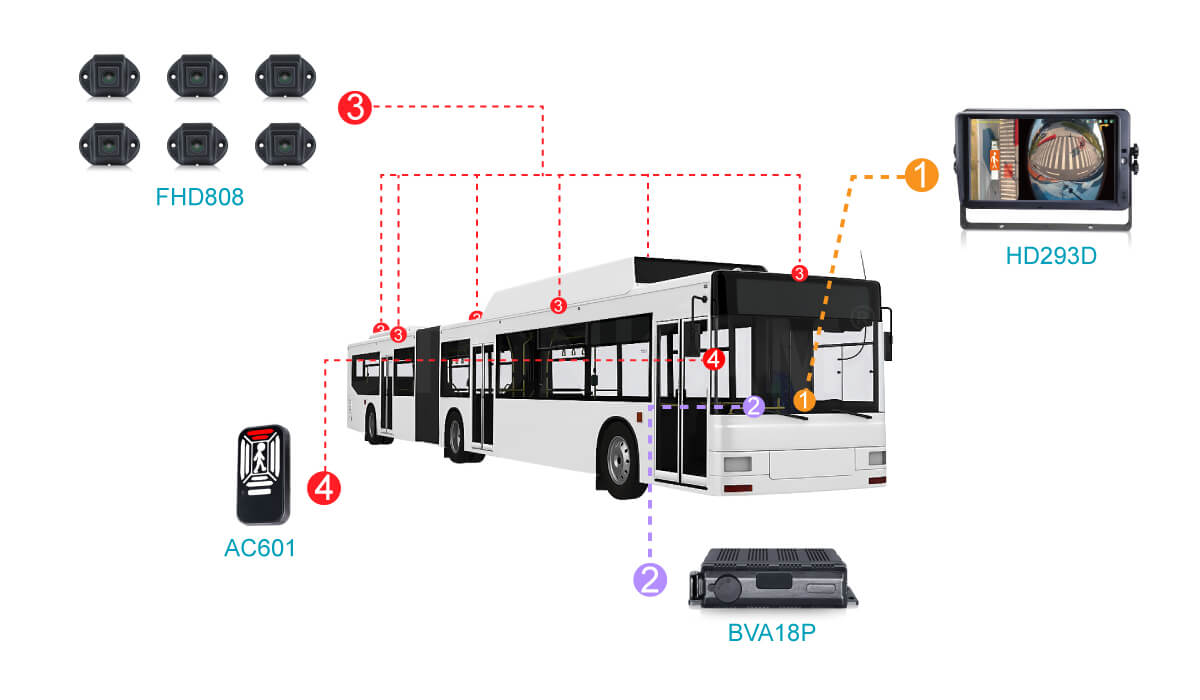

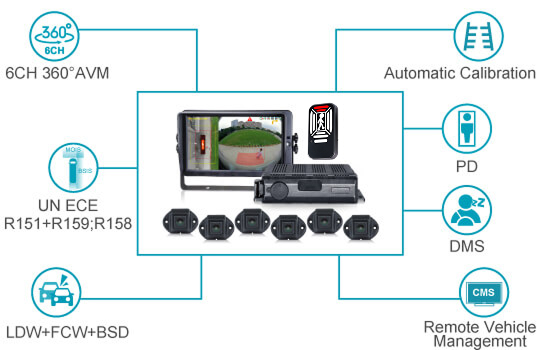

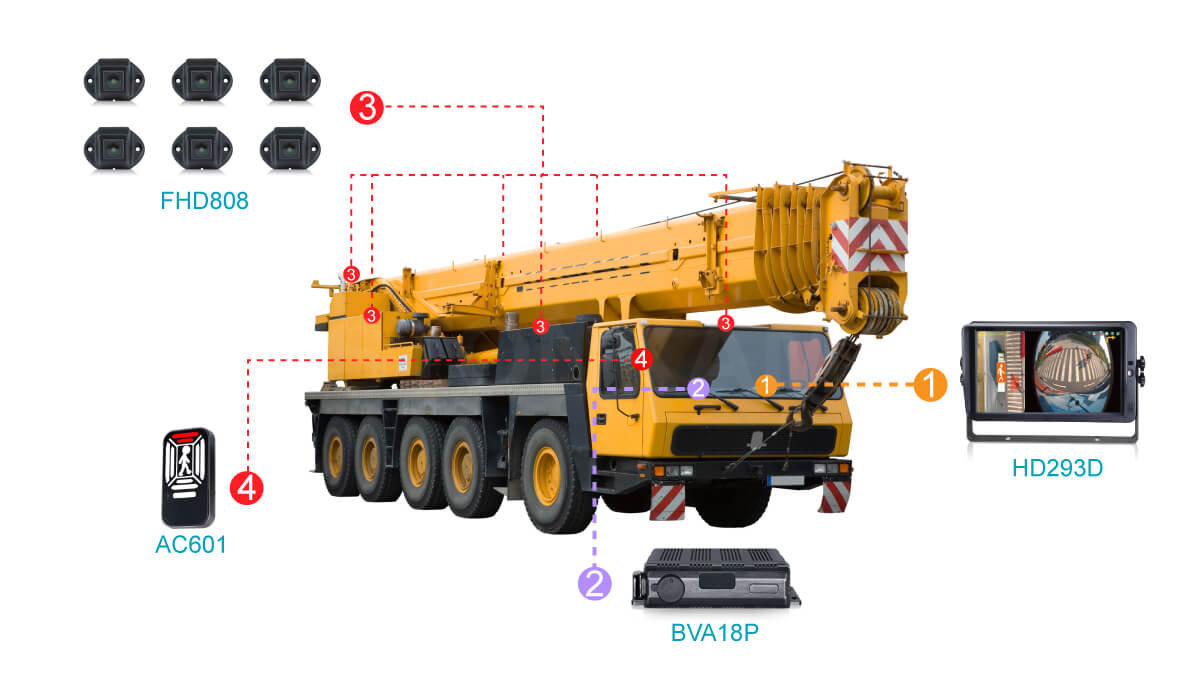

The 6-channel 1080P Vehicle 360° Panoramic Imaging System supports input from 6 wide-angle HD cameras and complies with BSIS/MOIS regulations. The system features an upgraded algorithm with integrated pedestrian detection, LDW (Lane Departure Warning), FCW (Forward Collision Warning), BSD (Blind Spot Detection), and DMS (Driver Monitoring System) algorithms, enabling intelligent vehicle monitoring both inside and outside the vehicle. This system is suitable for various long vehicles, including articulated buses, cranes, long trailers, container trucks, and fire trucks.
