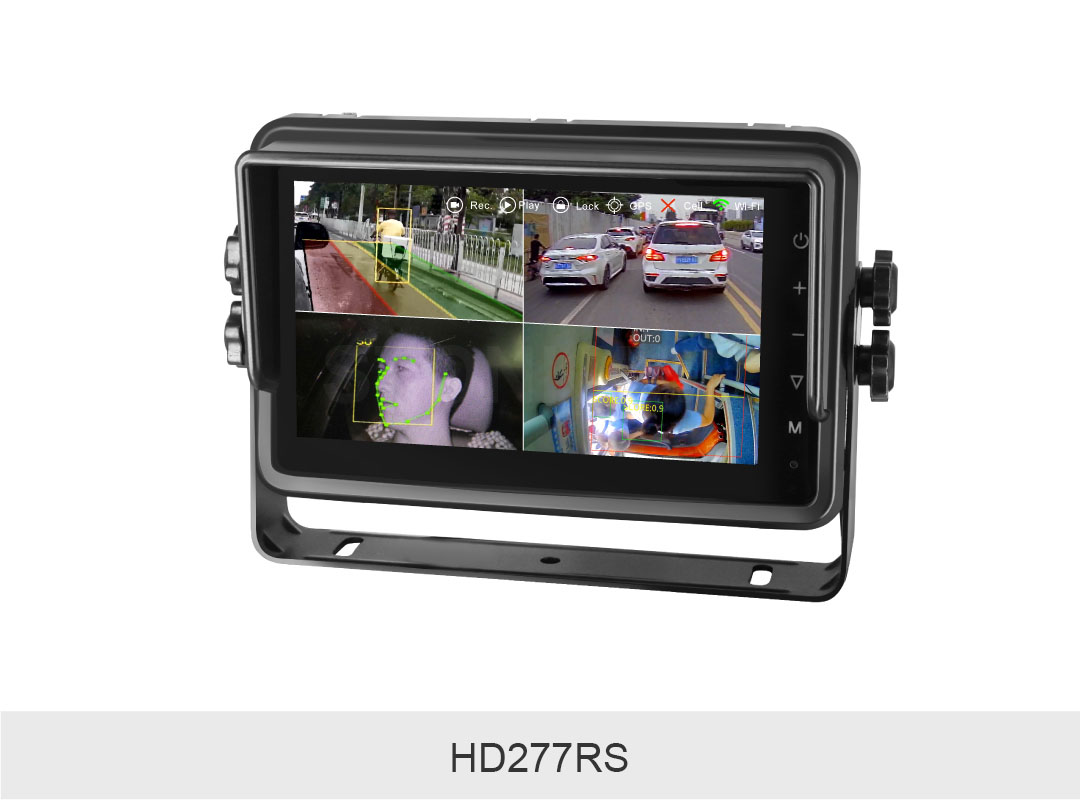

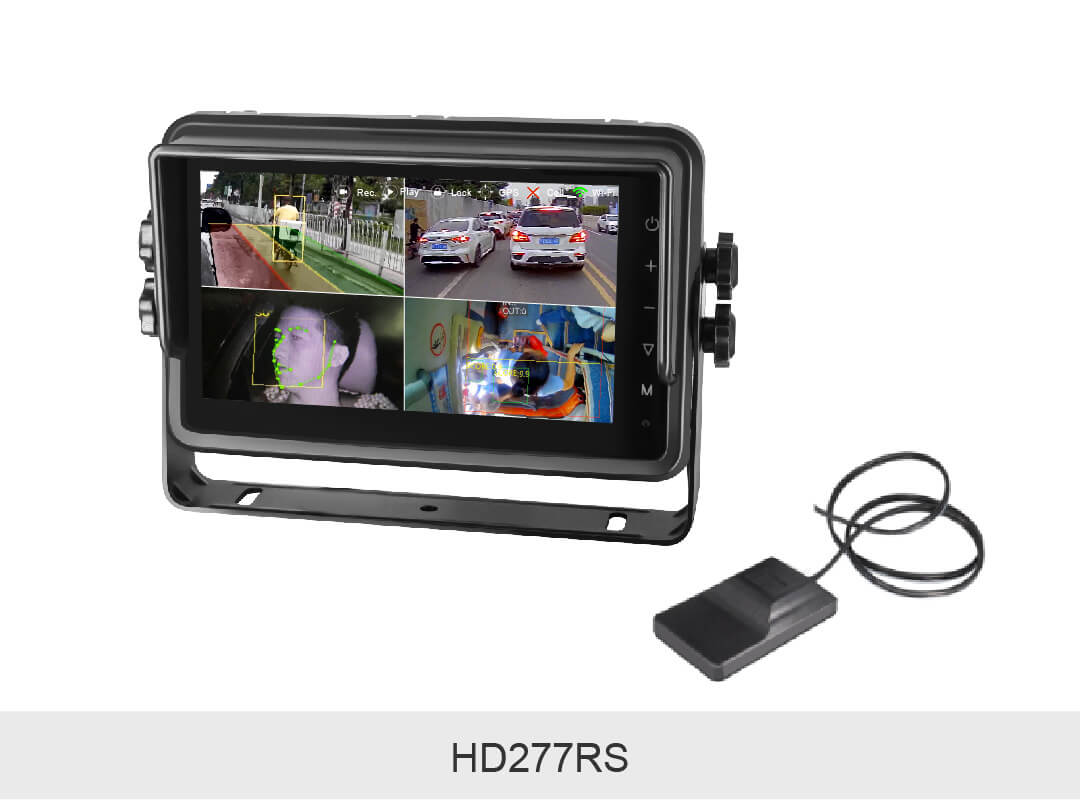

HD277RS

7'' 6CH Intelligent Vehicle Recording Monitor With Algorithm(ADAS/BSD/DMS)

HD277RS

7 inch 6CH Intelligent Vehicle Recording Monitor With Algorithm adopts deep learning technology and supports various algorithms ADAS, BSD, DMS & customized algorithm. It can monitor and detect abnormal situations of pedestrian and vehicles on roads during driving, providing an ideal solution to assist driving. Additionally, the monitor is built-in modules GPS/Wi-Fi/4G, so there is no need for an extra DVR. It supports high-definition real-time recording and automatic loop recording, with storage capacity up to 512GB (TF card), which helps improve fleet management efficiency. Moreover, t he monitor is IP66 waterproof, capable of working outdoors in rainy and snowy days.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Typnr. Stellen Sie sich vor* Nachricht *

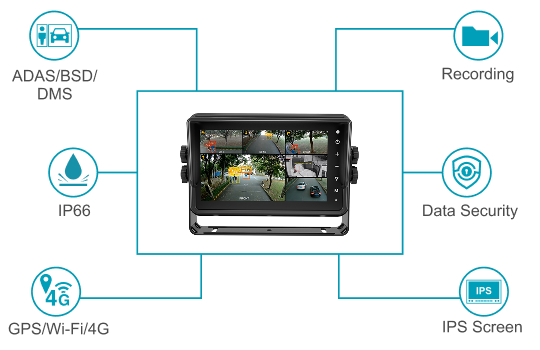

Merkmale

【6-CH Algorithm Configuration】Supports up to 6-channel algorithms with customization (ADAS, BSD, DMS), enabling real-time perception and monitoring of all abnormal conditions related to drivers, vehicles and roads to enhance driving safety.

【Support Recording】Support 512GB TF card storage and cycle recording, to ensure that the video recording will be uninterrupted.

【DVR and MonitorTwo-in-One】Built-in GPS/Wi-Fi/4G, compatible with CMSV6/WIALON platforms and JT808 protocol, reslize remote fleet monitoring and management, easy and efficient.

【Other Functions】Data Security, Multi-screen Split Display Mode, IPS High-brightness Screen, Touchscreen Control, IP66 Waterproof

LCD Dimension

7''

Resolution

1024 * 600 * 3(RGB)

Contrast

700

Brightness

600cd/㎡

Viewing Angle

U: 85 / D: 85, R / L: 85

Aspect Ratio

16:9

Video Input

6CH

Storage

SD card * 1(Max.512G)

Alarm Input

4CH

Alarm Output

1CH

USB2.0

1CH

IR

Support

WIFI

Support

GPS

Support

4G

Support

Gsensor

Support

Loudspeaker

1W/8Ω

Power Supply

DC 10V-32V

Power Consumption

Max 25W

Storage Temperature

-20~70℃, RH <90%









Have you ever met the following problems?

How to avoid unusual driver behaviour or ignoring blind spot risks?
How to provide evidence for traffic accidents?
How to check vehicle position and monitoring footage in real time?
How to maske sure we get a clear view even in  rain and snow?
Can we use a single monitor to achieve efficient fleet management and intelligent driving warning?
……







STONKAM 7 inch 6CH Intelligent Vehicle Recording Monitor With Algorithm Solution
Smarter  safer  more cost-effective







Latest AI technology, able to achieve 6CH algorithms and functions

It supports ADAS, BSD, DMS algorithms and algorithm customisation to meet various algorithmic needs, efficiently realise multi-class AI task processing and real-time detection and accurate identification of multi-class targets, improve driving safety and scene adaptability, and provide optimal solutions for assisted driving.

In-vehicle monitoring

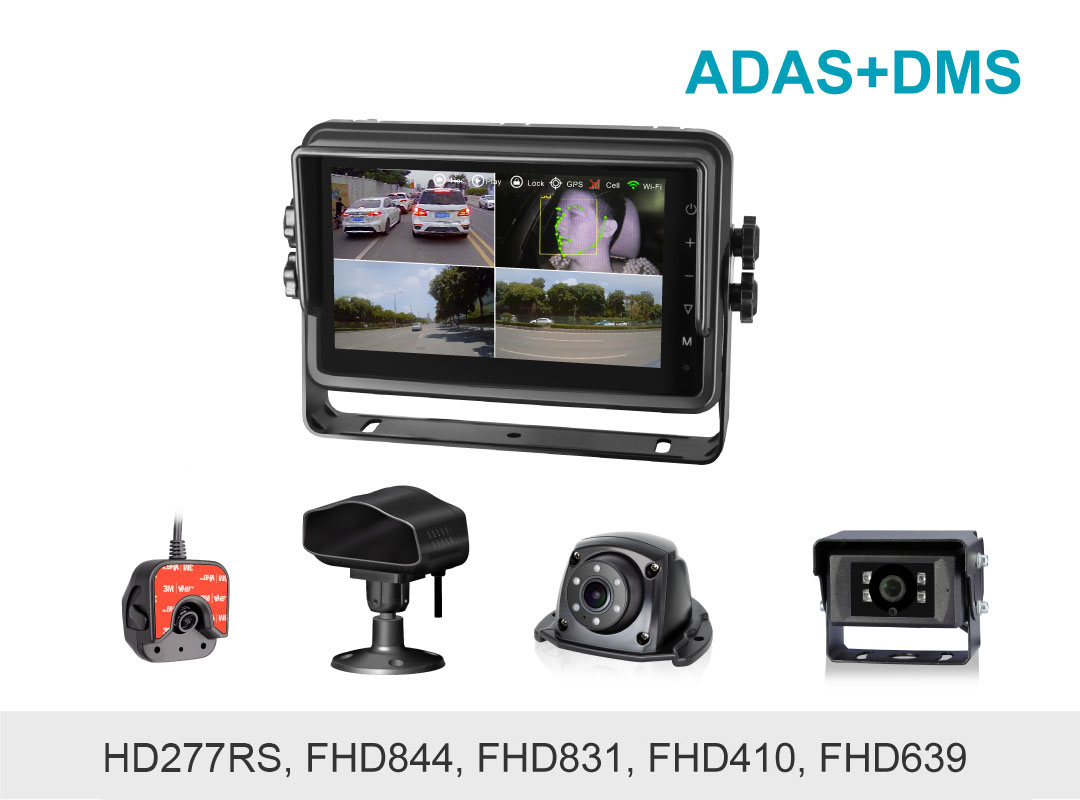

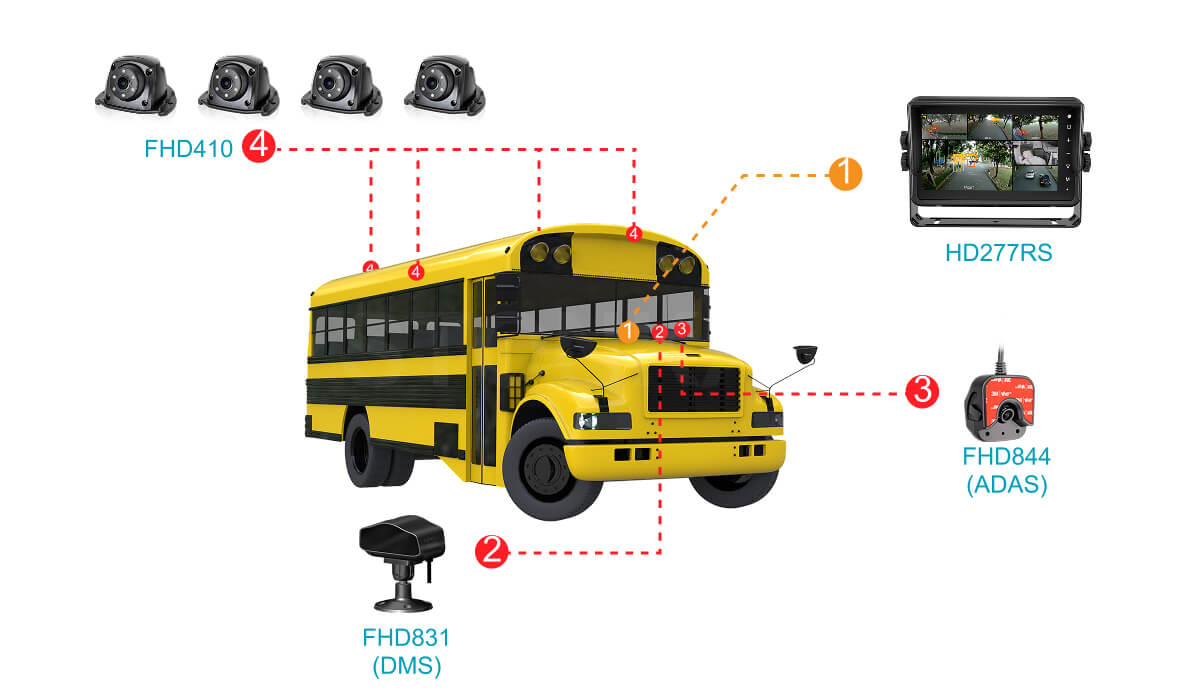

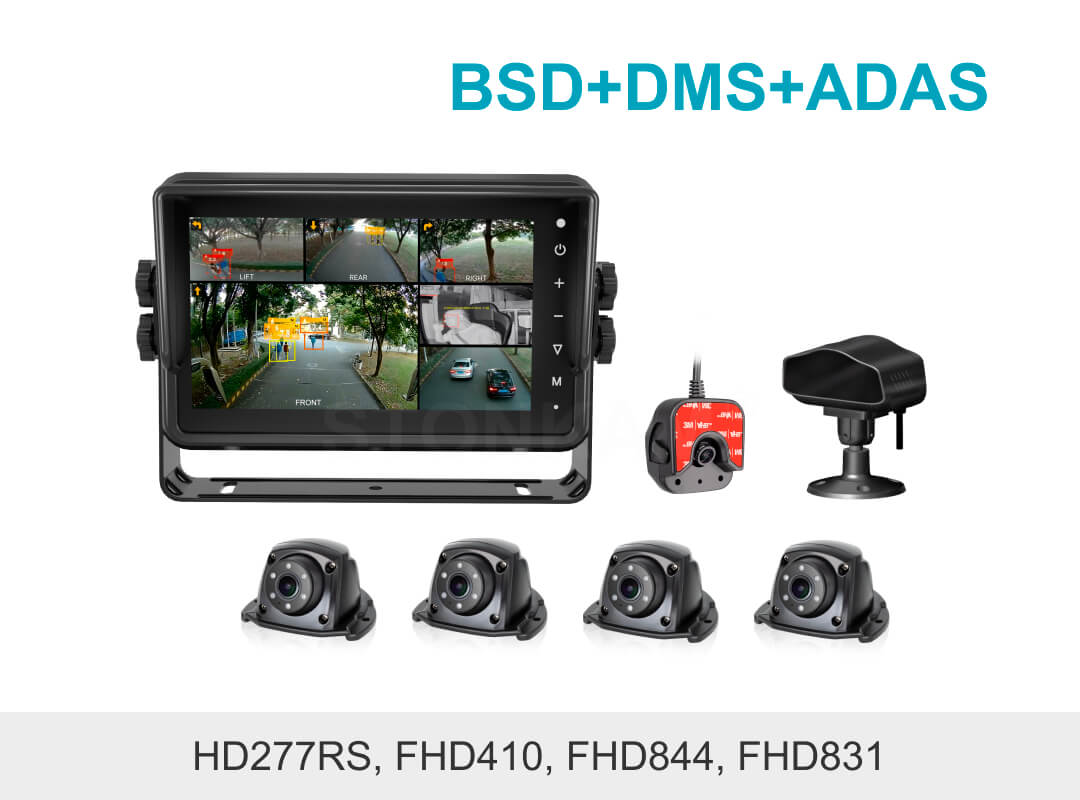

Option One: ADAS+DMS

Integrates ADAS and DMS algorithms, combining advanced driver assistance and driver monitoring into one system, continuously monitoring the vehicle's driving status and the driver's behavior, helping to ensure safe driving.

In-vehicle monitoring system

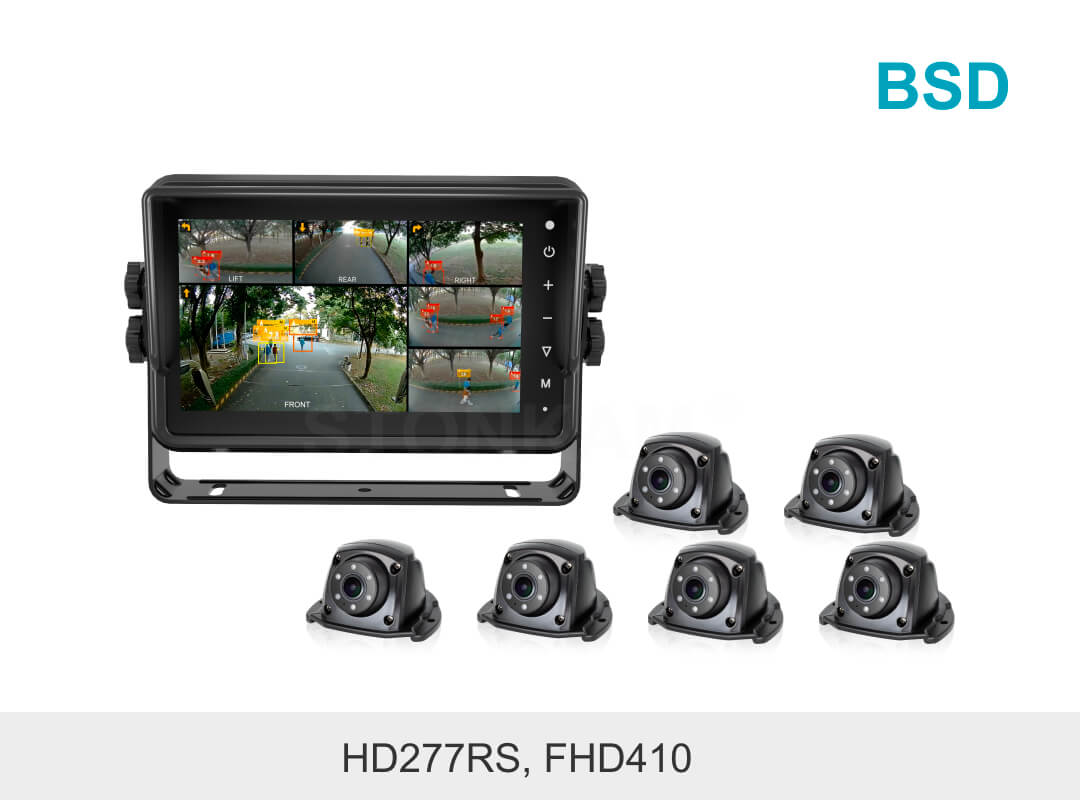

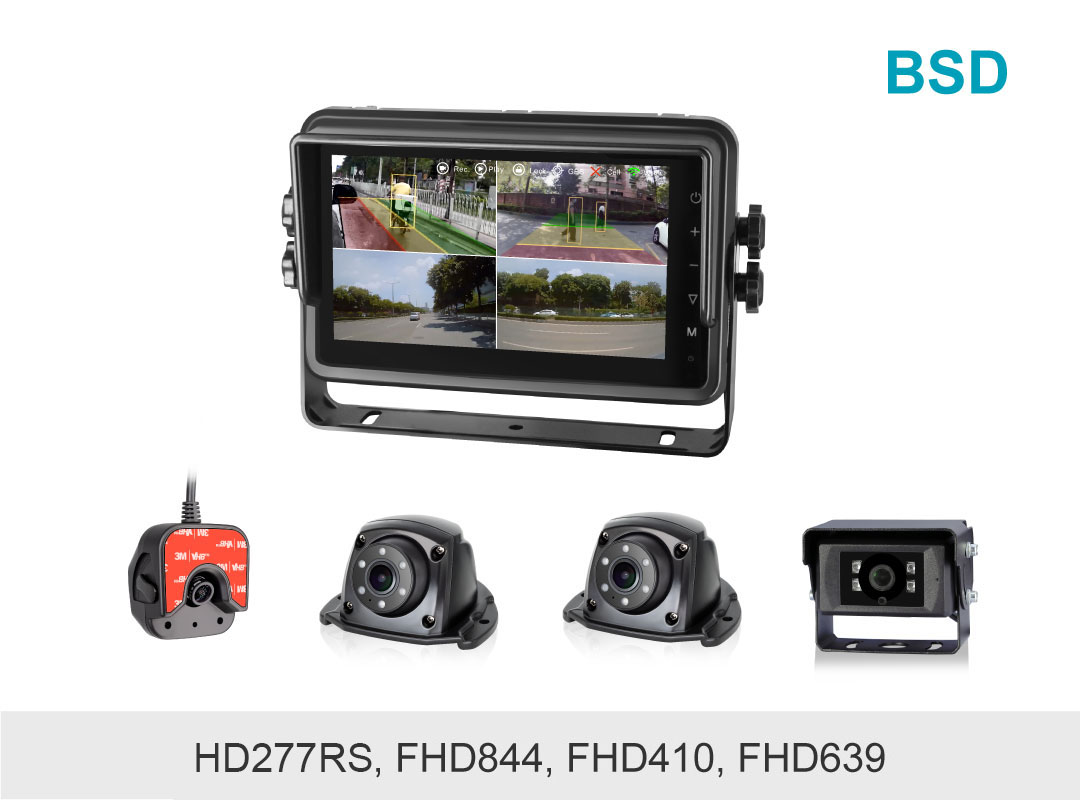

Option Two:BSD Function

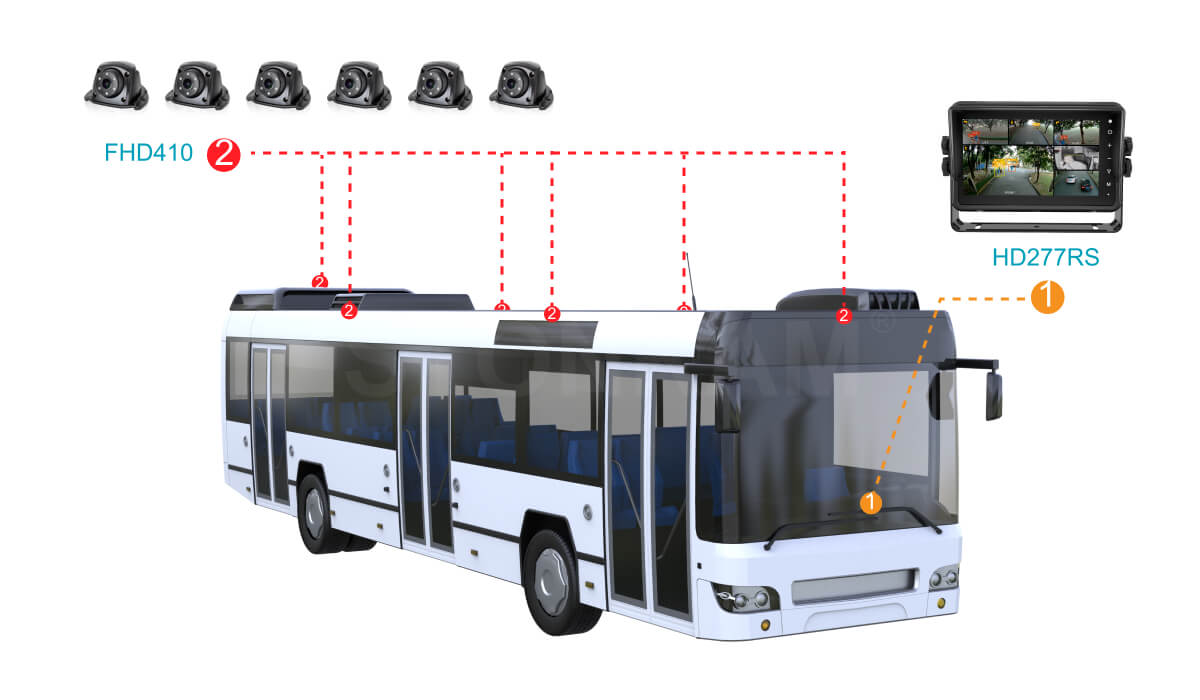

With 6-channel BSD algorithm, the Intelligent Monitor can detect pedestrians and vehicles at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots. Thus, this driving assistance device is essential for large-size vehicles like trucks, buses, construction machines, etc.

In-vehicle 4-channel monitoring system

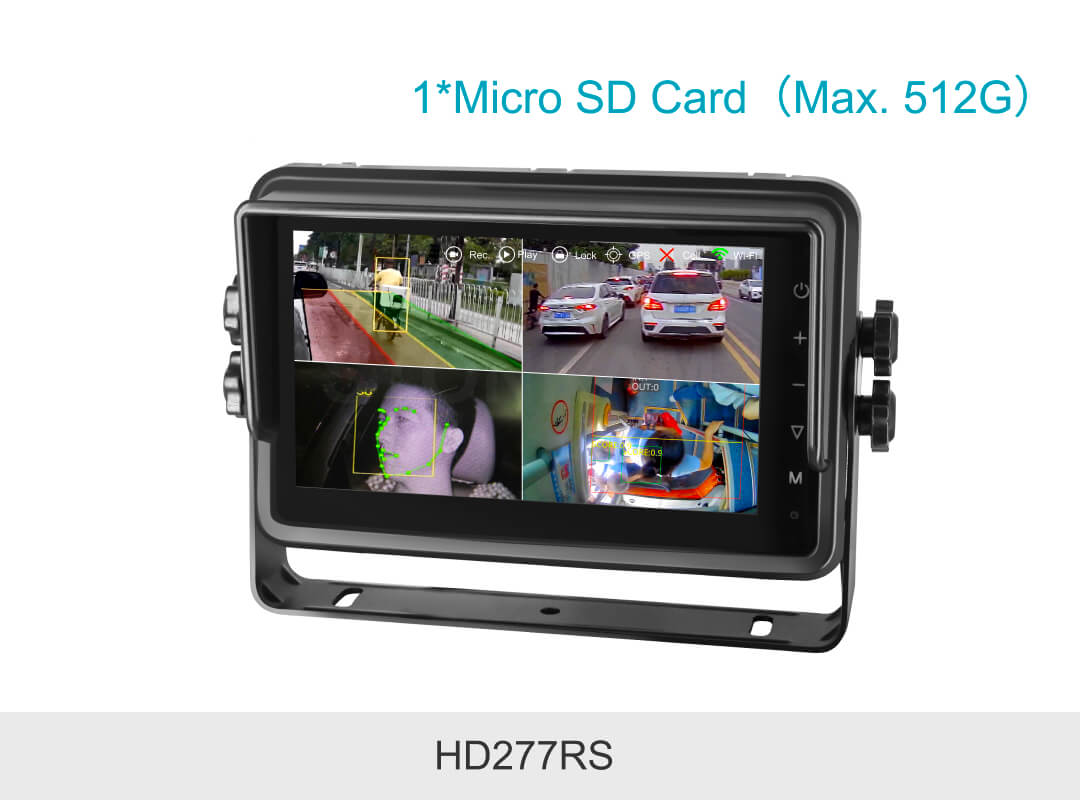

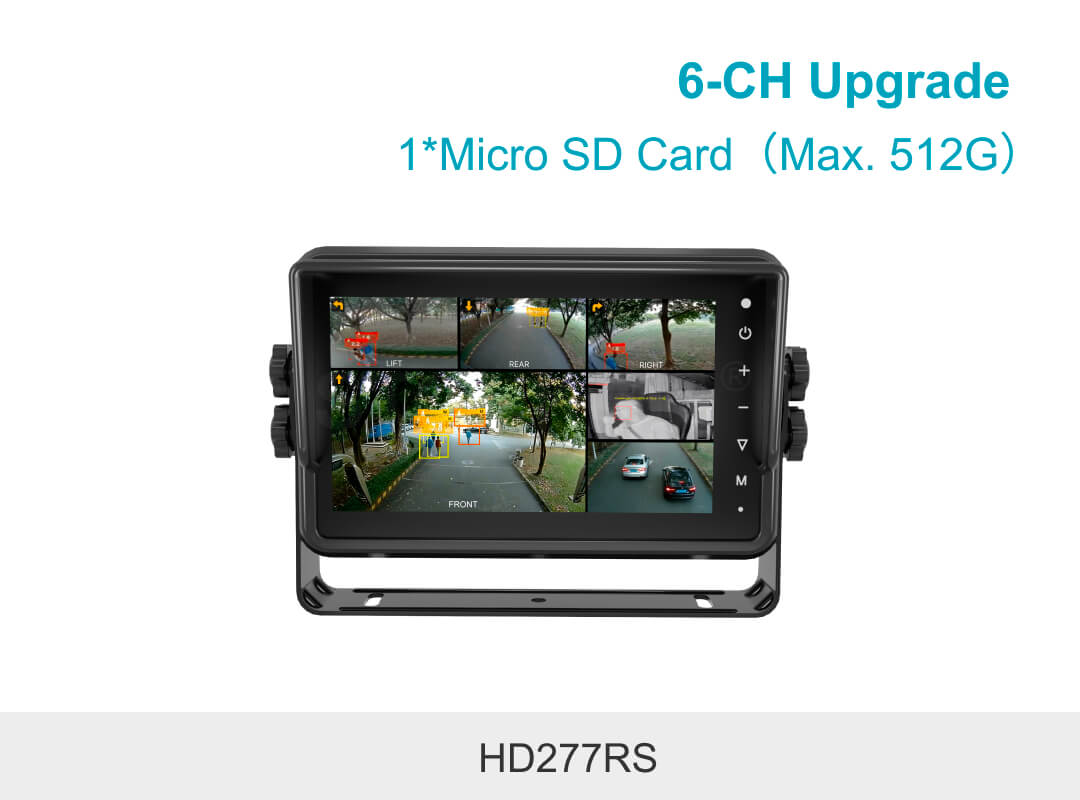

Large-capacity video storage to ensure uninterrupted recording

Support video recording, with 512GB TF card storage; Support automatic loop recording, which means new records overwrite the earliest videos when the storage is full. In this way, recording will be forever on going and obtain reliable  driving records for accident investigation, dispute resolution and driving analysis when necessary.

In-vehicle monitoring





Two-in-one that combines in-vehicle DVR and monitor, make your driving safer

No need of external DVR, with built-in GPS/Wi-Fi/4G, compatible with CMSV6/WIALON platforms and JT808 protocol, you can easily track vehicle location, receive surveillance images and data at any time through wireless network for remotemonitoring and vehicle management.

In-vehicle 4-channel monitoring system

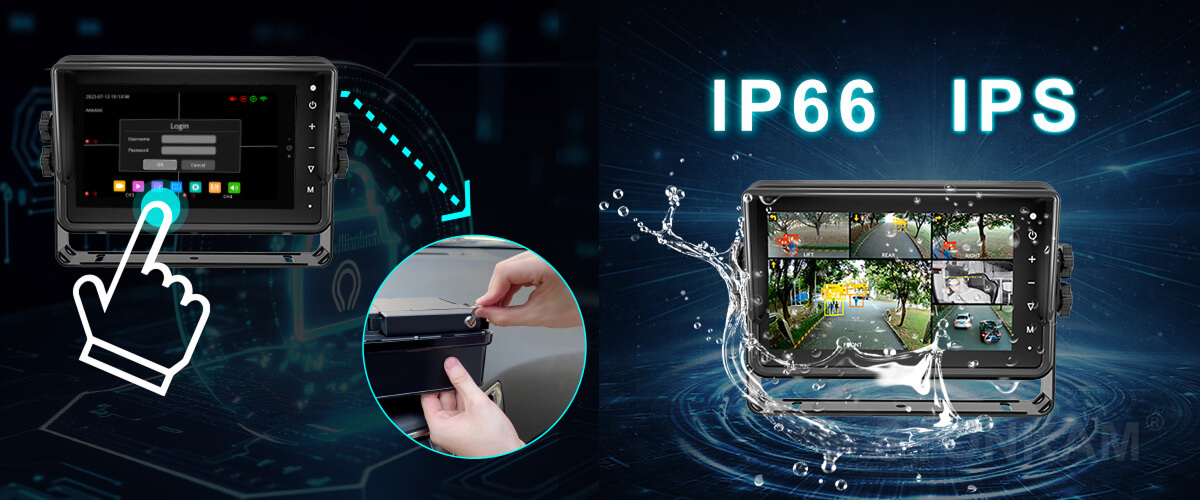

Other Functions

Lockable card slot and account/password login for data protection; Supports 6CH 1080P AHD camera input with multiple display modes (single, dual, quad, 6-split, etc.); High-brightness IPS screen; Easy-to-use touchscreen; IP66 waterproof.

Truck monitoring





Applications

STONKAM®  7 inch 6CH Intelligent Vehicle Recording Monitor With Algorithm is a remarkable breakthrough in this field. It is powerful and adapts to a wide range of applications, for example trucks, buses, trailers,RVs, school buses, tractors, and even ships, etc., helping improve driving dafety and operation efficiency.

In-vehicle monitoring

In-vehicle monitoring
