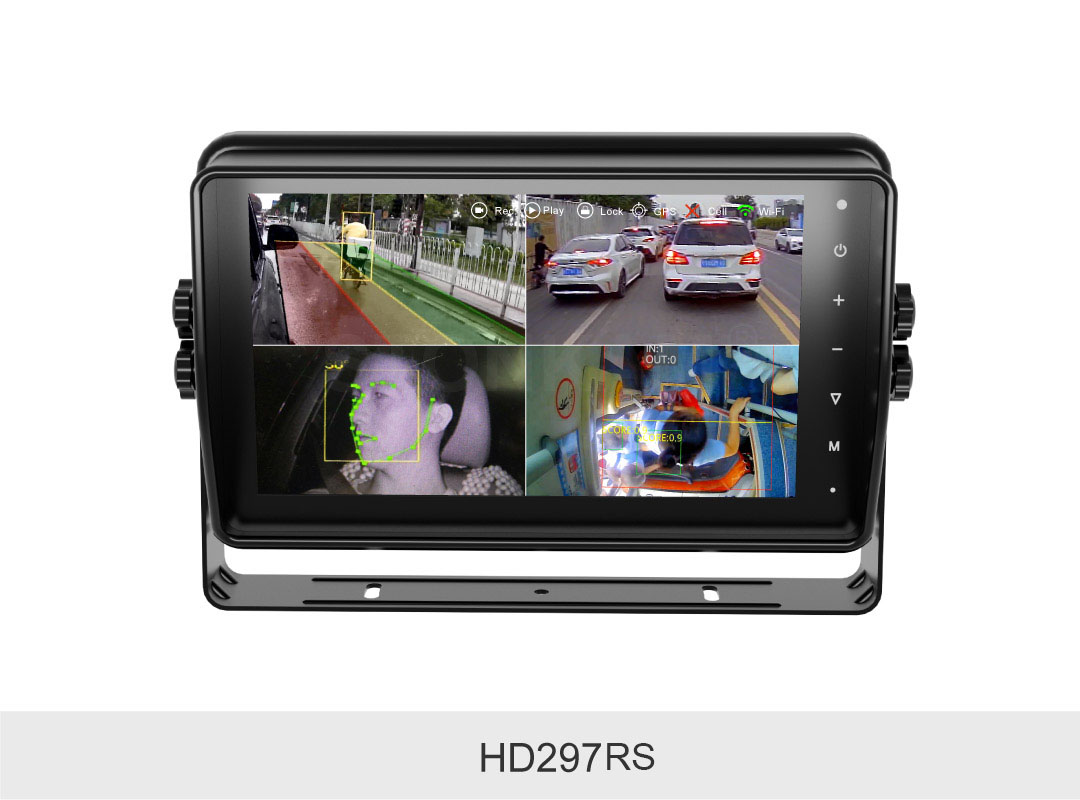

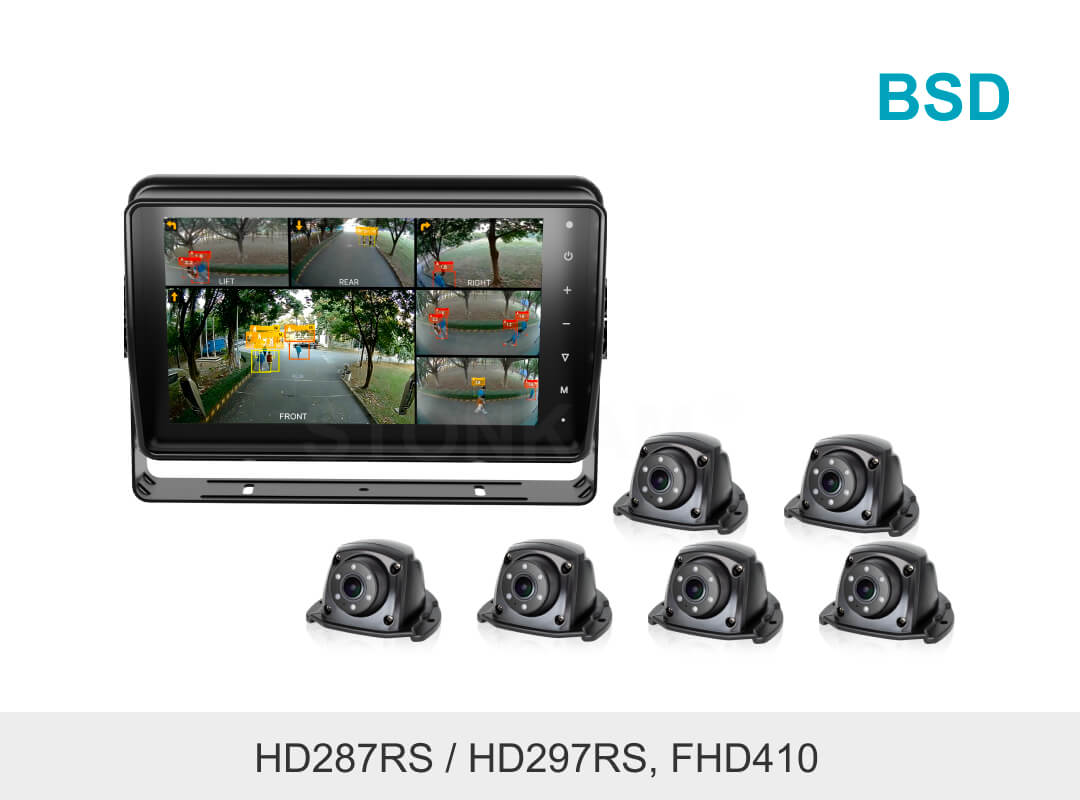

10.1 inch 6CH Intelligent Vehicle Recording Monitor

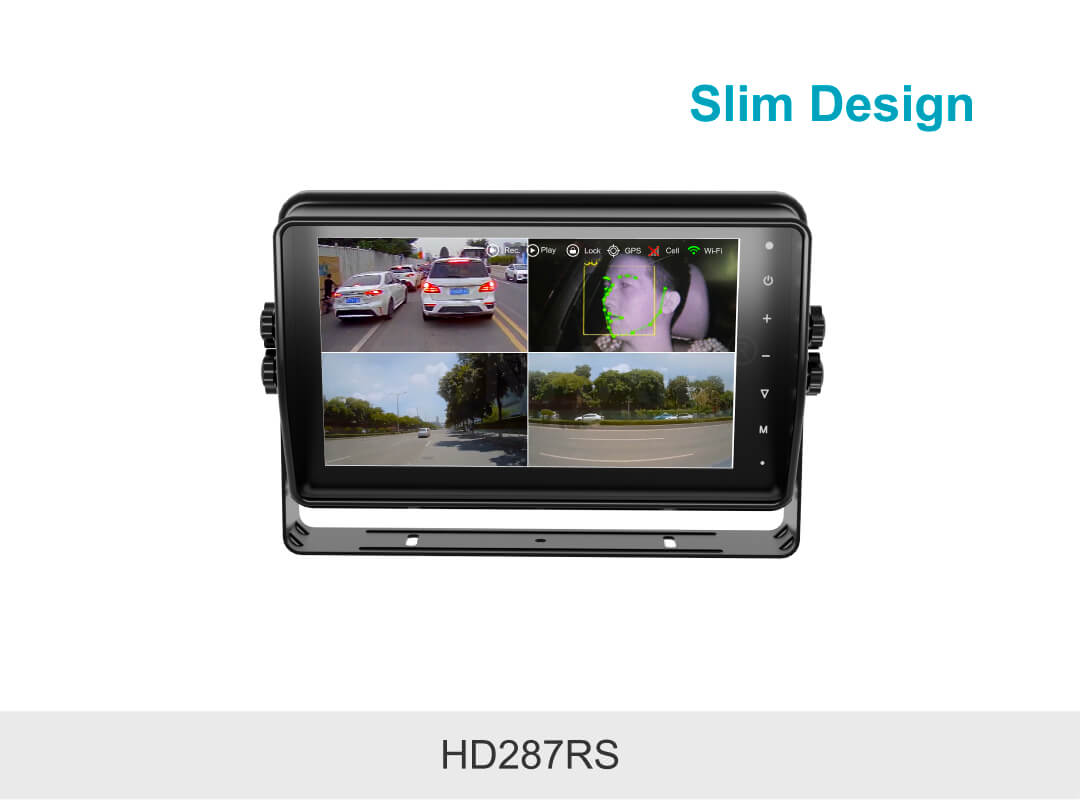

HD287RS, HD297RS

STONKAM® 10.1 inch 6CH Intelligent Vehicle Recording Monitor for Pedestrian & Vehicle Detection and Warning adopts deep learning technology, has 4-channel built-in AI algorithm, detecting pedestrian and vehicles all around the vehicle to remind drivers of potential risks and avoid collision, improving driving safety! Meanwhile, it carries GPS/Wi-Fi/4G function,can record HD real-time video and suppoprt cyclic recording without external DVR, with its storage room up to 2 x 512GB (micro SD) + 1*2T (SSD).This helps improve fleet management efficiency. Moreover, t he monitor is IP66 waterproof, capable of working outdoors in rainy and snowy days.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Typnr. Stellen Sie sich vor* Nachricht *

Merkmale

【6-CH Algorithm Configuration】Supports up to 6-channel algorithms with customization (ADAS, BSD, DMS), enabling real-time perception and monitoring of all abnormal conditions related to drivers, vehicles and roads to enhance driving safety.

【Support Recording】Supports large-capacity video storage and loop recording functionality to ensure uninterrupted video capture.

【DVR and MonitorTwo-in-One】Built-in GPS/Wi-Fi/4G, compatible with CMSV6/WIALON platforms and JT808 protocol, reslize remote fleet monitoring and management, easy and efficient.

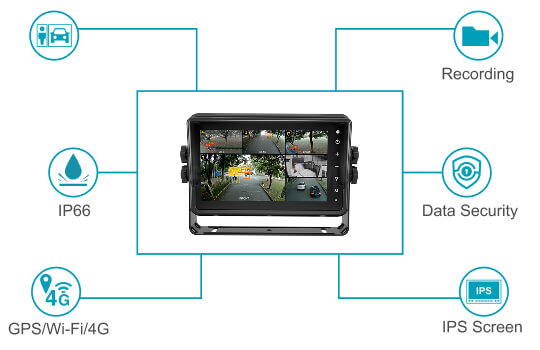

【Other Functions】Data Security, Multi-screen Split Display Mode, IPS High-brightness Screen, Touchscreen Control, IP66 Waterproof.

Brightness

600 cd/m2

LCD Dimension

10.1"

Resolution

1024x600

Viewing Angle

U: 85°/ D: 85°, R/L: 85°

Aspect Ratio

16:9

Contrast

700

Number of colours supported

16.7M

Waterproof Rating

IP66

Anti-vibration

ISO 16750-3

Video Input

 6-channel camera input, support mutiple resolutions (1080P25/1080P30/720P25/720P30/PAL/NTSC)

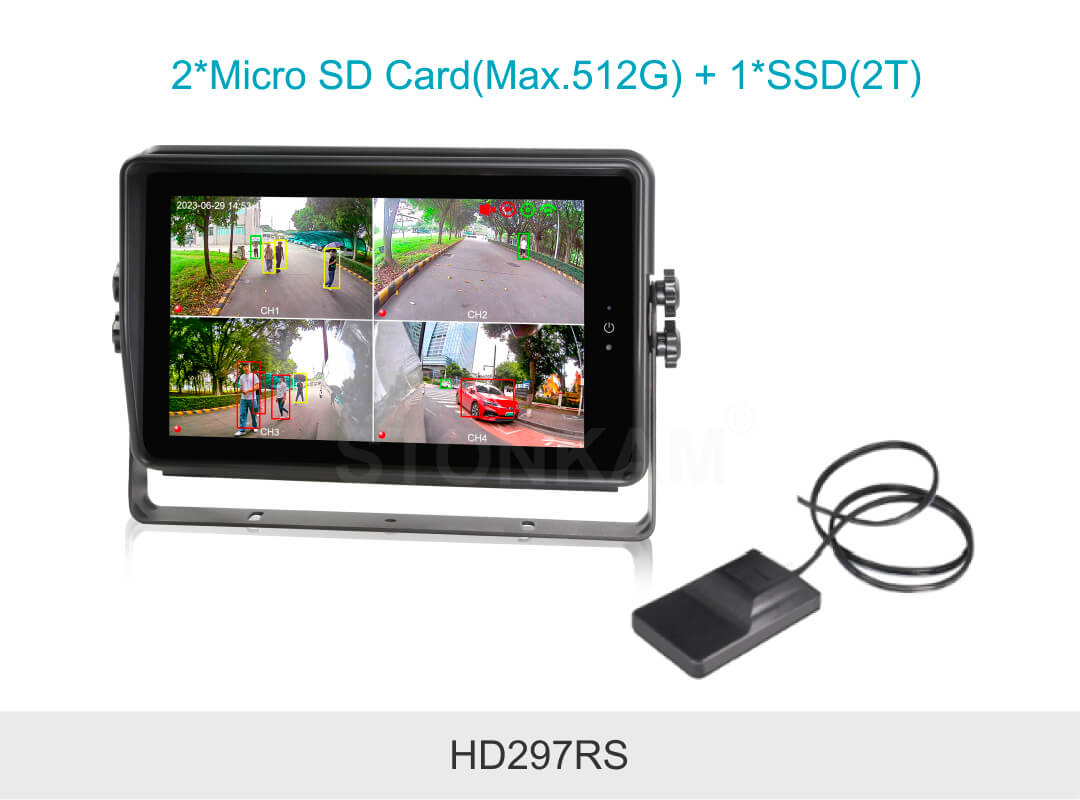

Storage

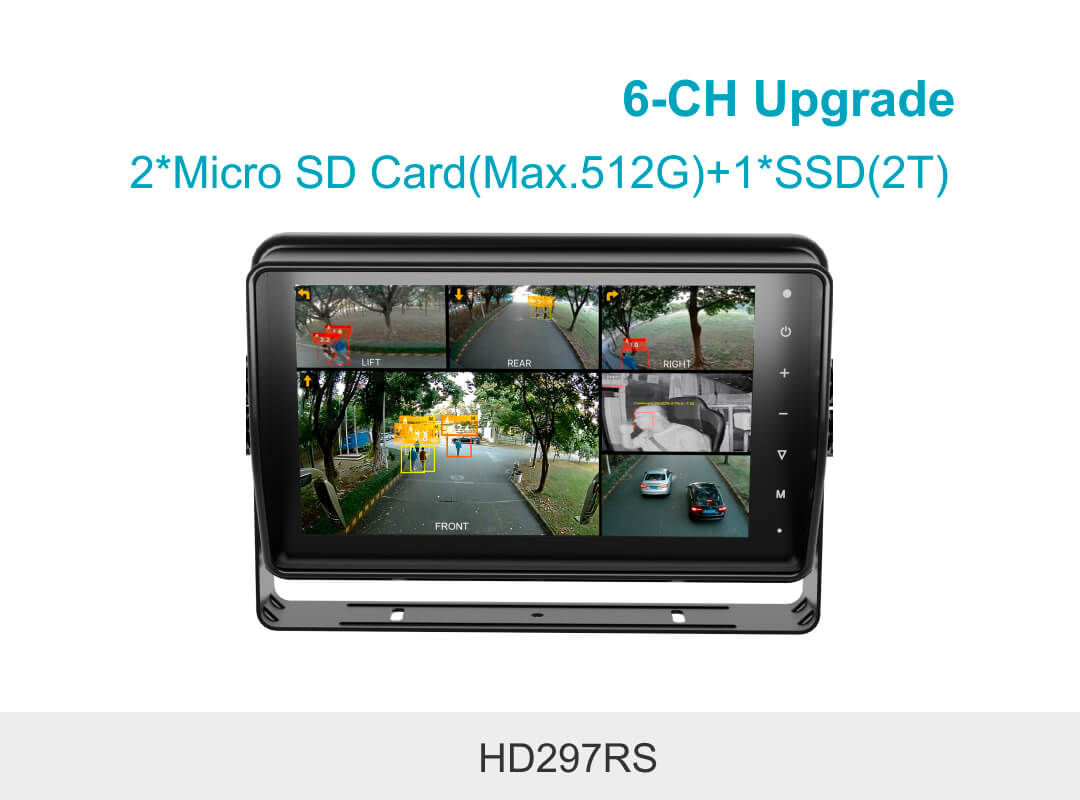

2*Micro SD(512G) + 1*SSD(2T) (HD297RS)

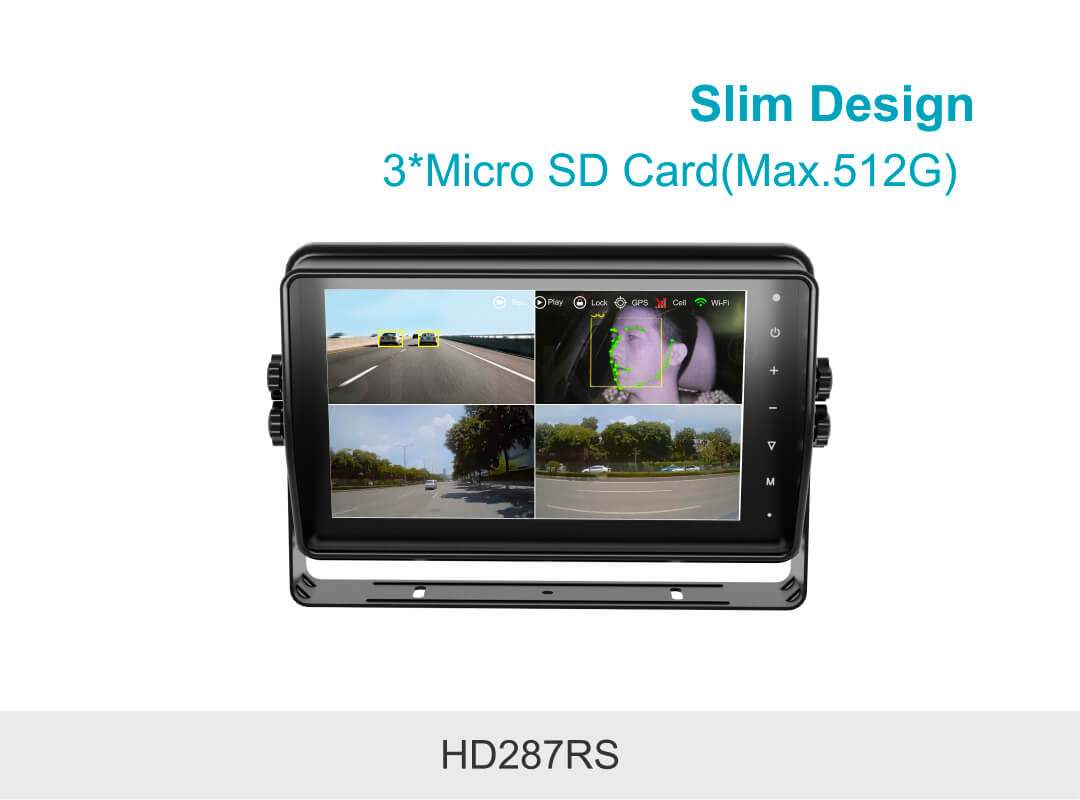

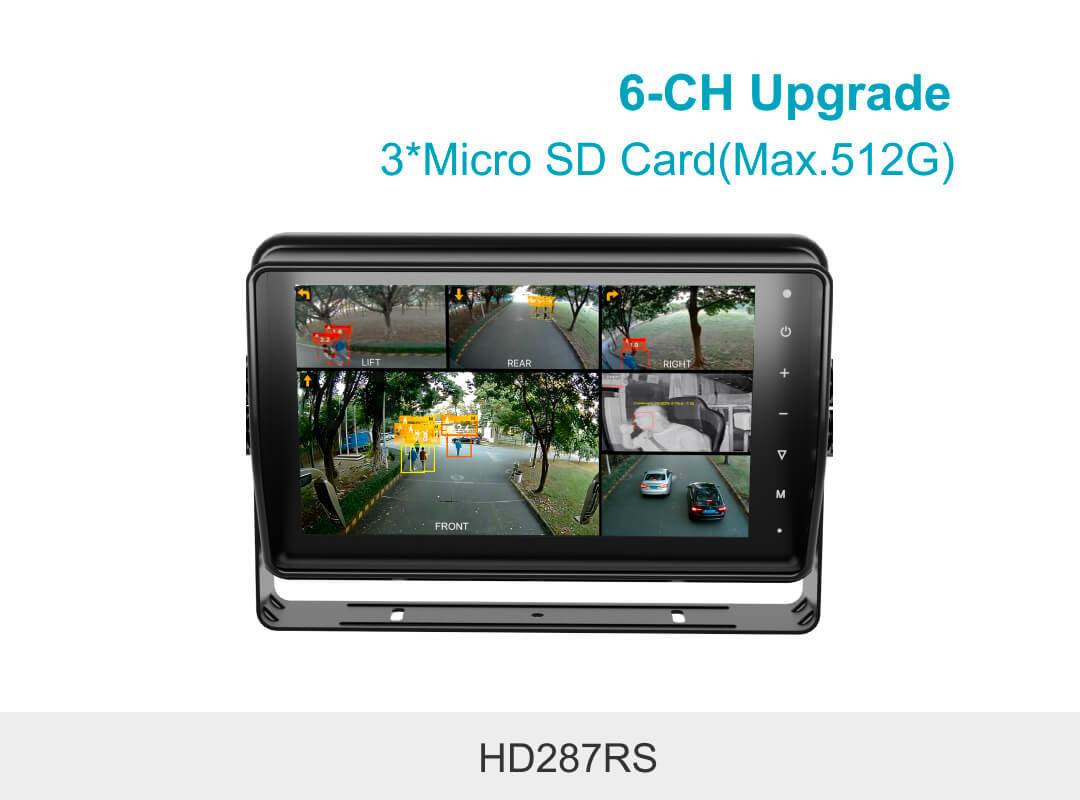

3*Micro SD(512G) (HD287RS)

Operating Temperature

-20 ~ +70℃

Storage Temperature

-30 ~ +80℃

Power Consumption

Max. 30W

Loudspeaker

1W/8Ω

Power Supply

DC 10V-32V







Have you ever met the following problems?

How to know if there are pedestrians or vehicles in the blind spot and avoid a collision?
How to provide evidence for traffic accidents?
How to check vehicle position and monitoring footage in real time?
How to maske sure we get a clear view even in  rain and snow?
Can we use a single monitor to achieve efficient fleet management and intelligent driving warning?

……

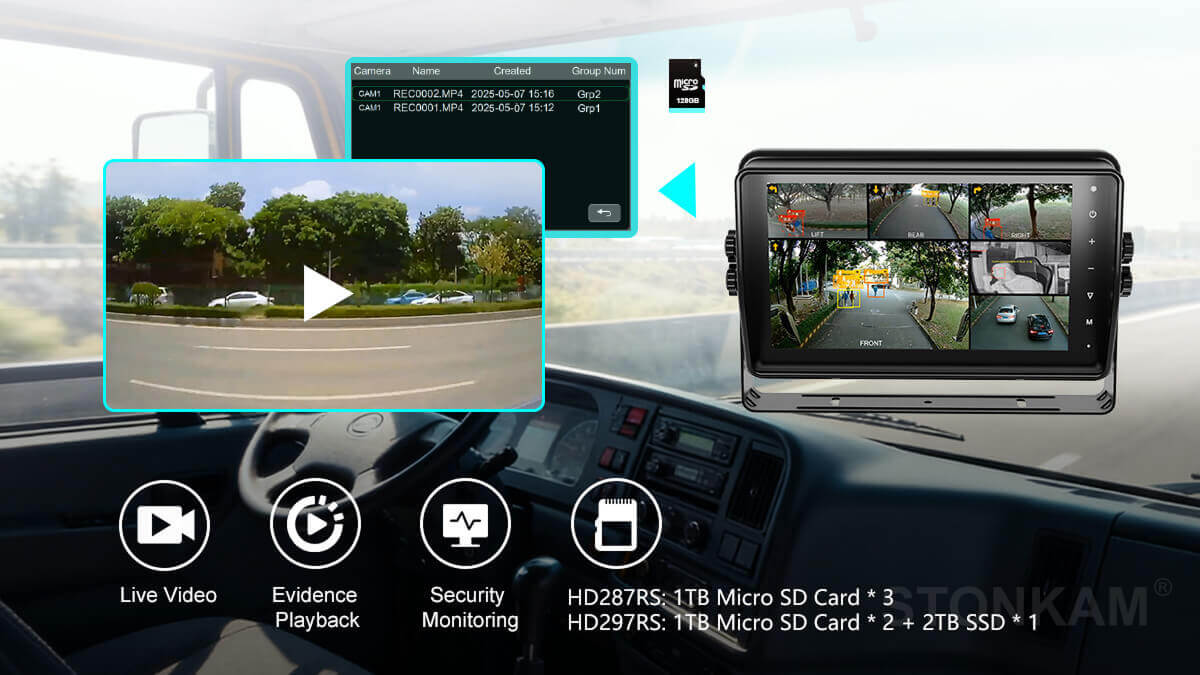

In-vehicle monitoring display







STONKAM® 10.1" 6CH Pedestrian & Vehicle Detection and Warning Intelligent Vehicle Video Surveillance Monitor Solution
Smarter  safer  more cost-effective

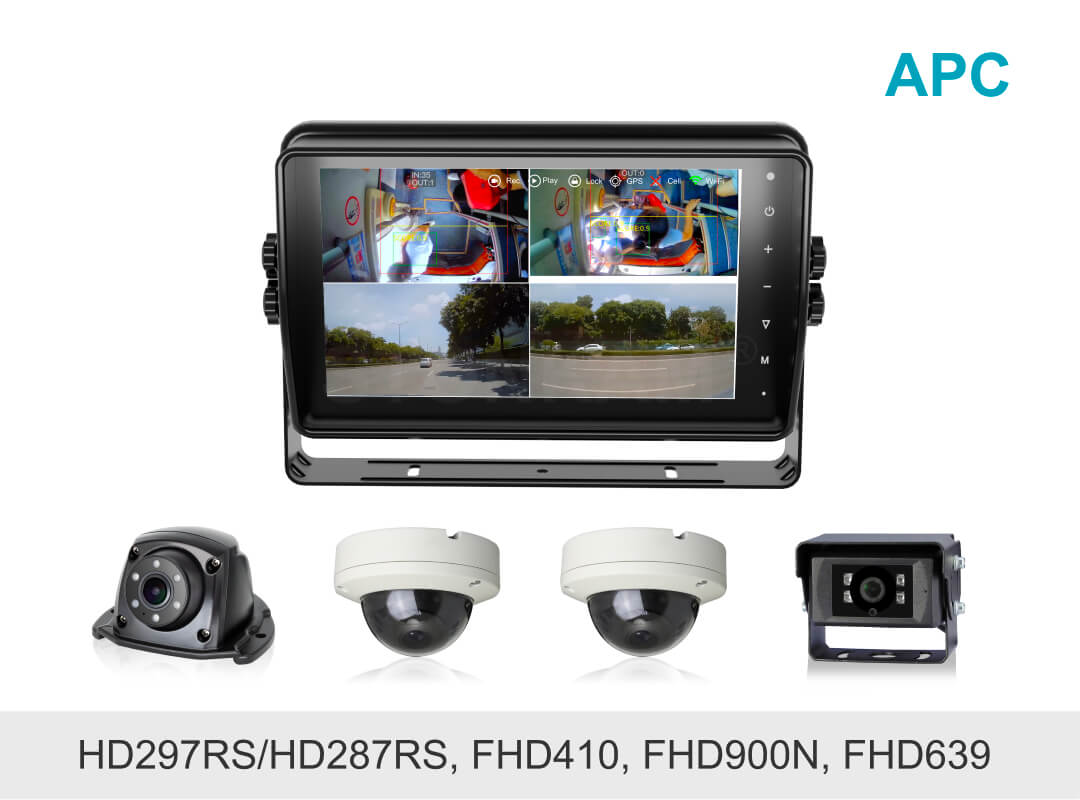

Latest AI technology, able to achieve 6CH algorithms and functions

It supports ADAS, BSD, DMS, APC algorithms and algorithm customisation to meet various algorithmic needs, efficiently realise multi-class AI task processing and real-time detection and accurate identification of multi-class targets, improve driving safety and scene adaptability, and provide optimal solutions for assisted driving.

In-vehicle monitoring

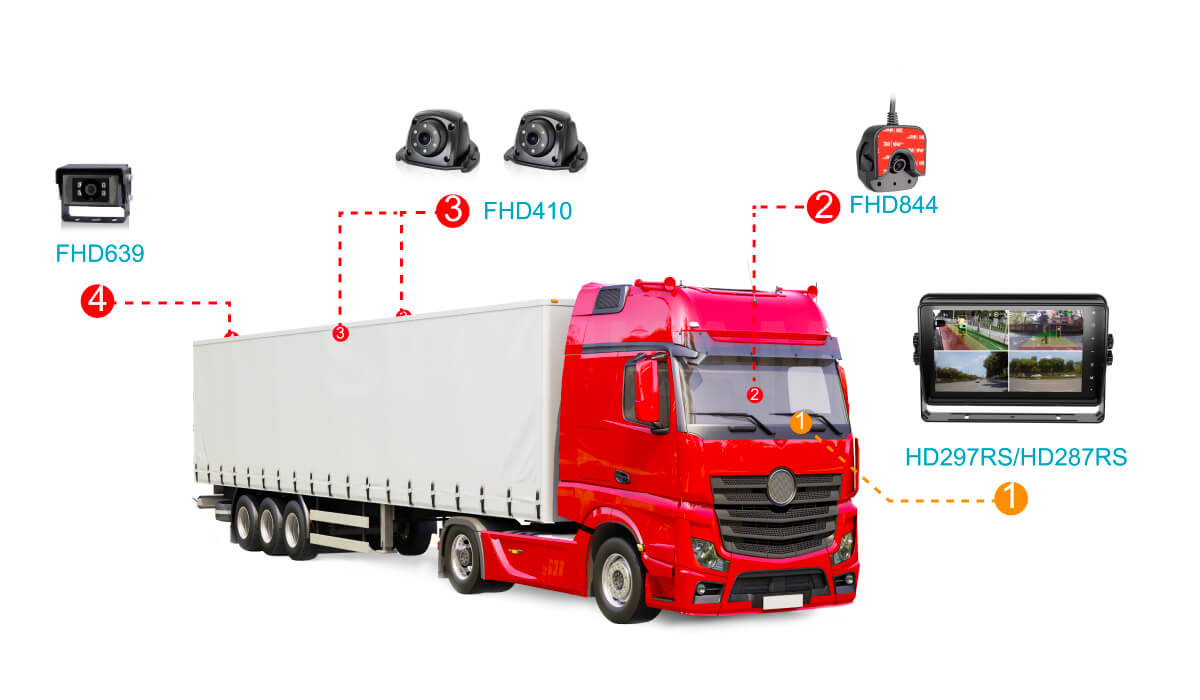

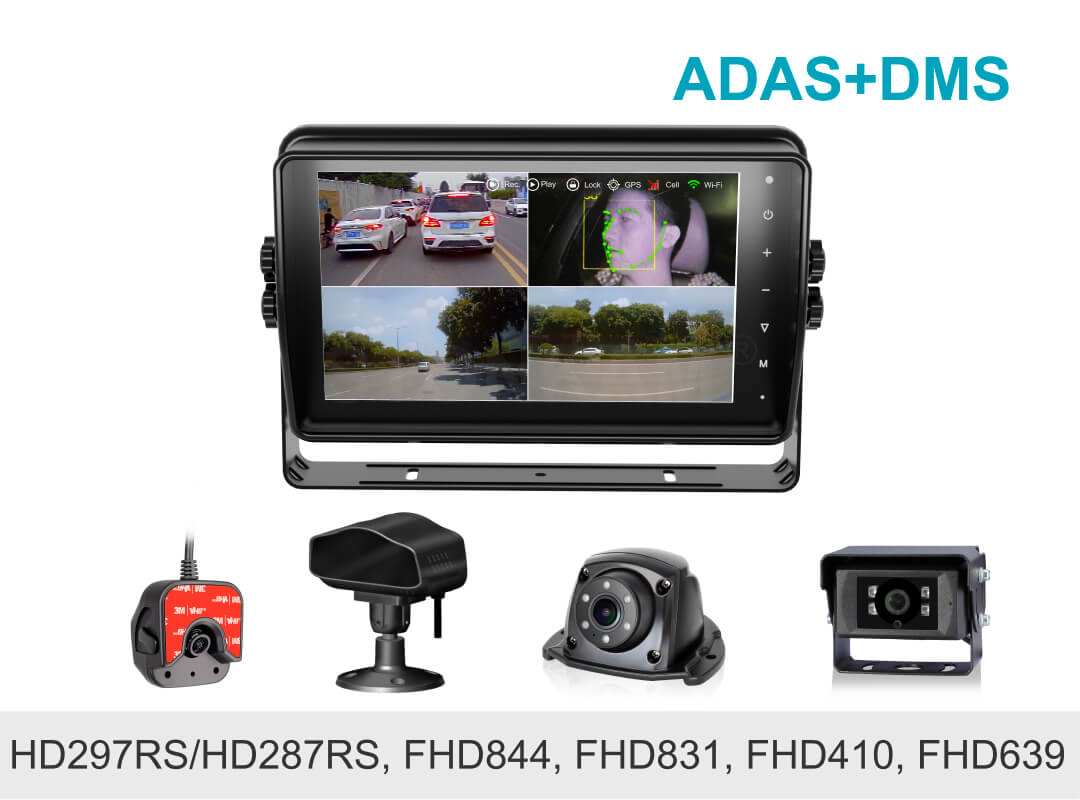

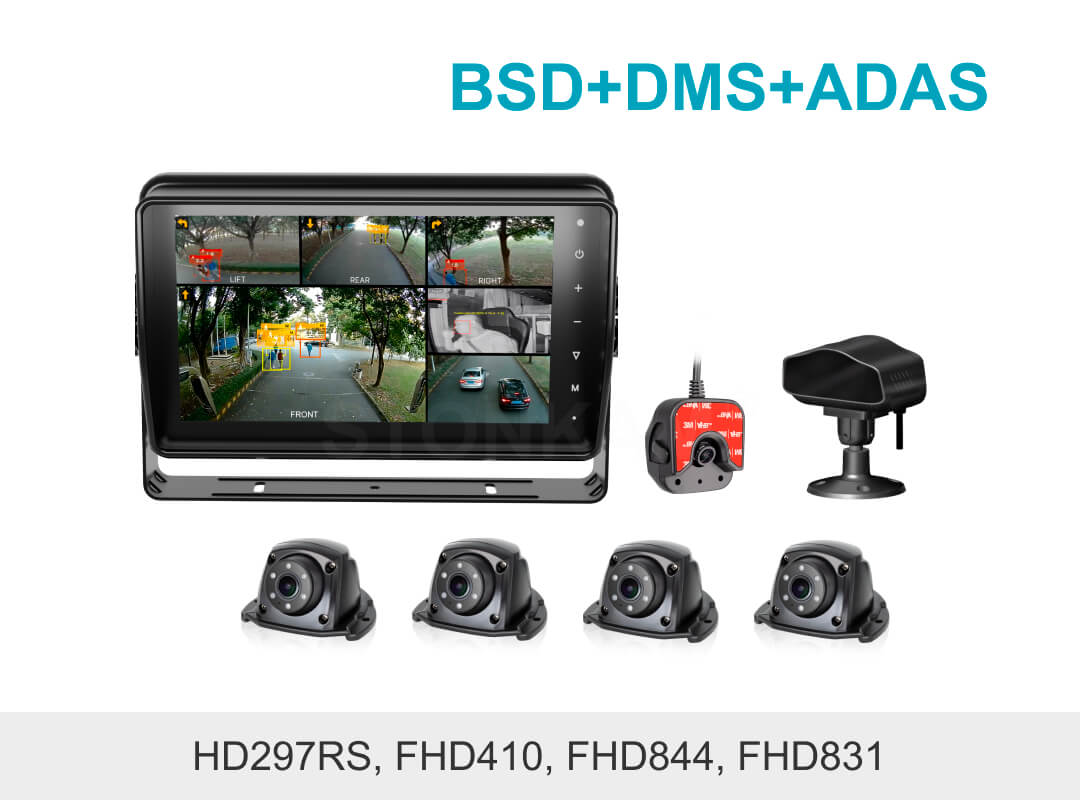

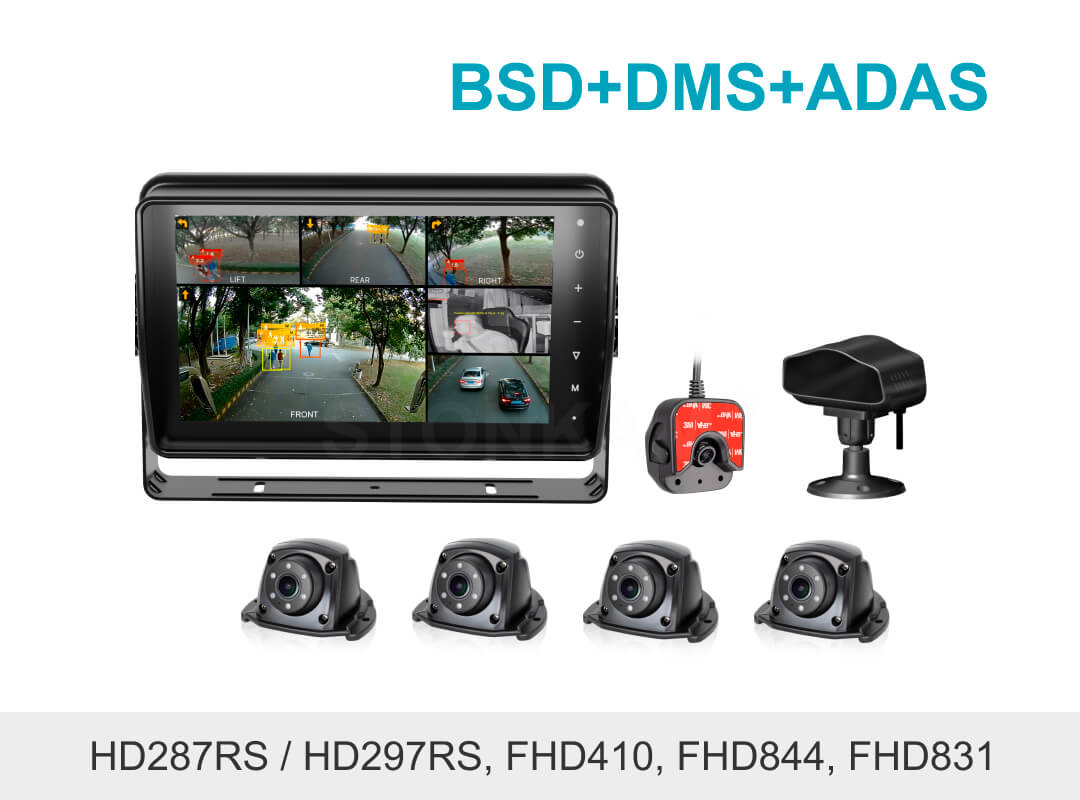

Option One: ADAS+DMS

Integrates ADAS and DMS algorithms, combining advanced driver assistance and driver monitoring into one system, continuously monitoring the vehicle's driving status and the driver's behavior, helping to ensure safe driving.

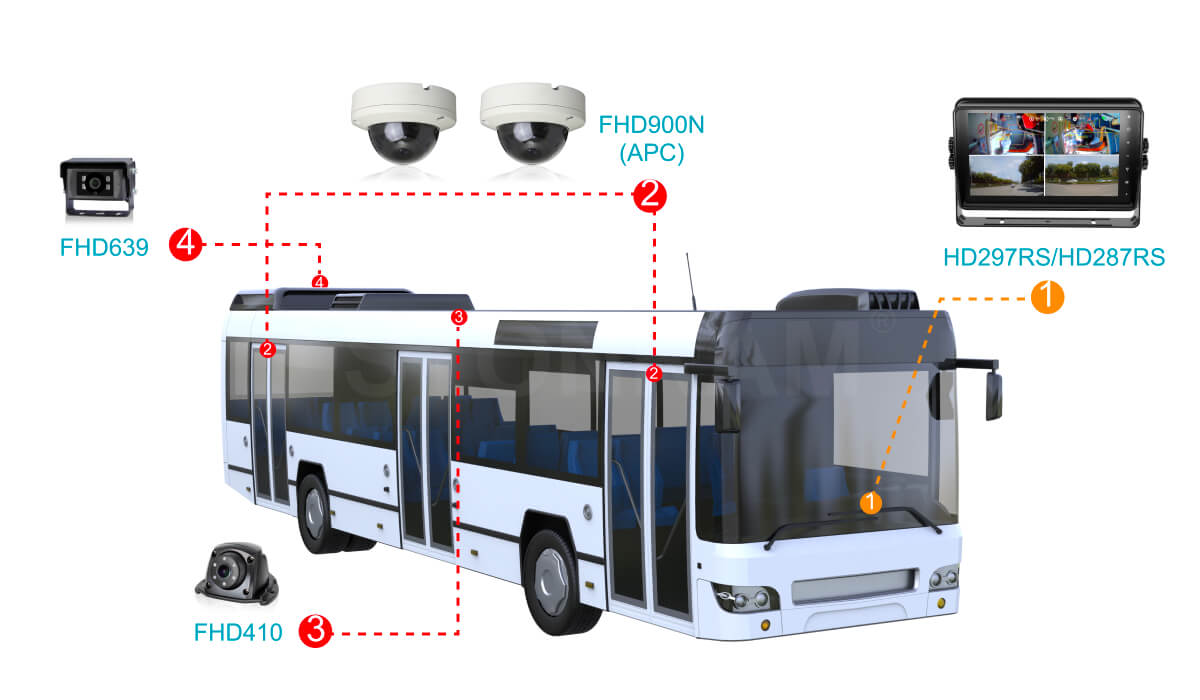

In-vehicle monitoring

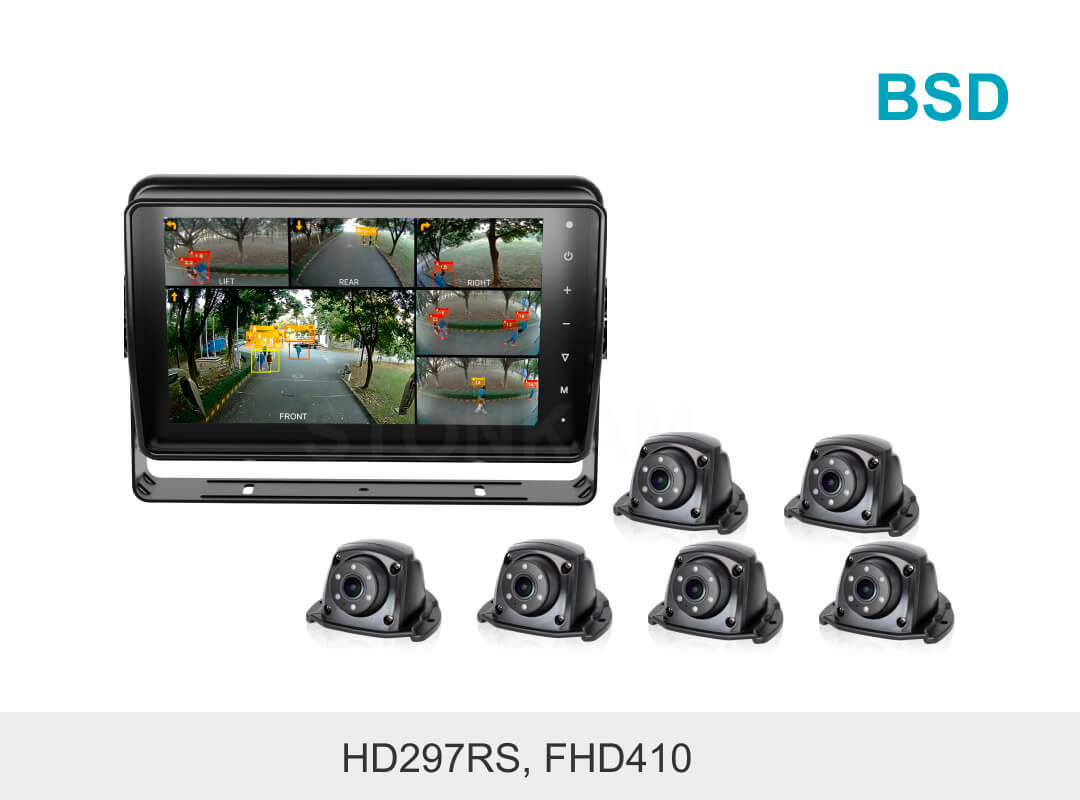

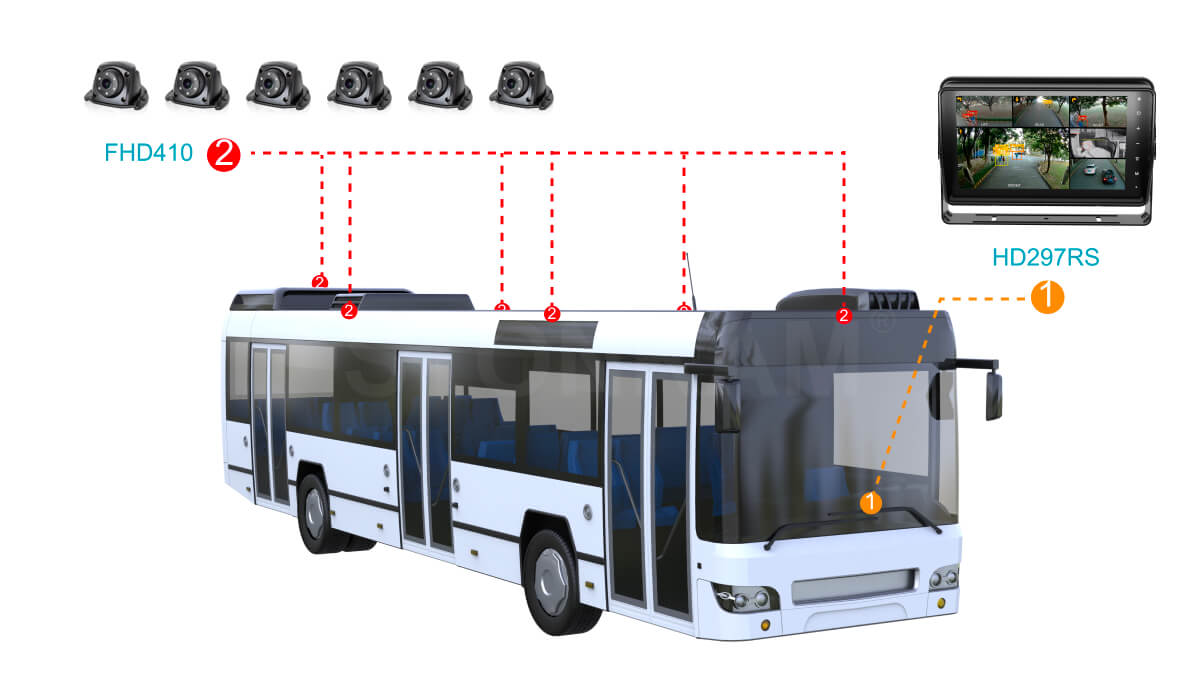

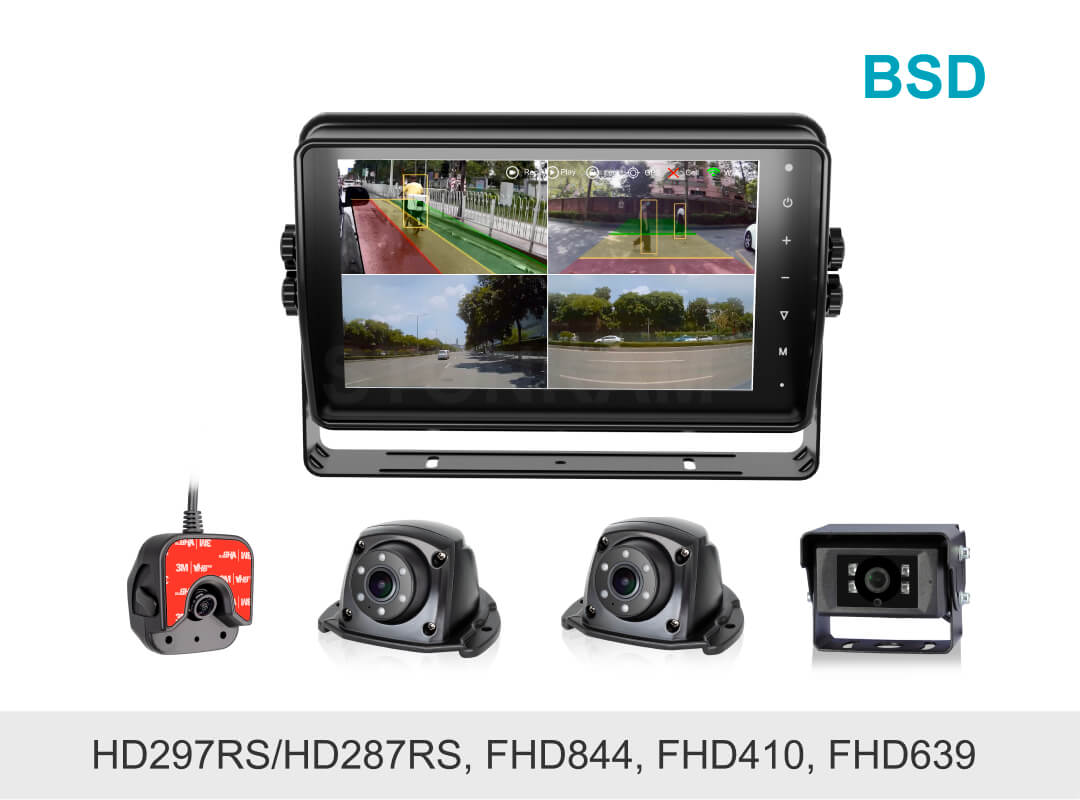

Option Two:BSD Function

With 6-channel BSD algorithm, the Intelligent Monitor can detect pedestrians and vehicles at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots. Thus, this driving assistance device is essential for large-size vehicles like trucks, buses, construction machines, etc.

In-vehicle monitoring system





Latest AI technology, able to achieve 6CH algorithms and functions

It supports ADAS, BSD, DMS algorithms and algorithm customisation to meet various algorithmic needs, efficiently realise multi-class AI task processing and real-time detection and accurate identification of multi-class targets, improve driving safety and scene adaptability, and provide optimal solutions for assisted driving.

In-vehicle monitoring display

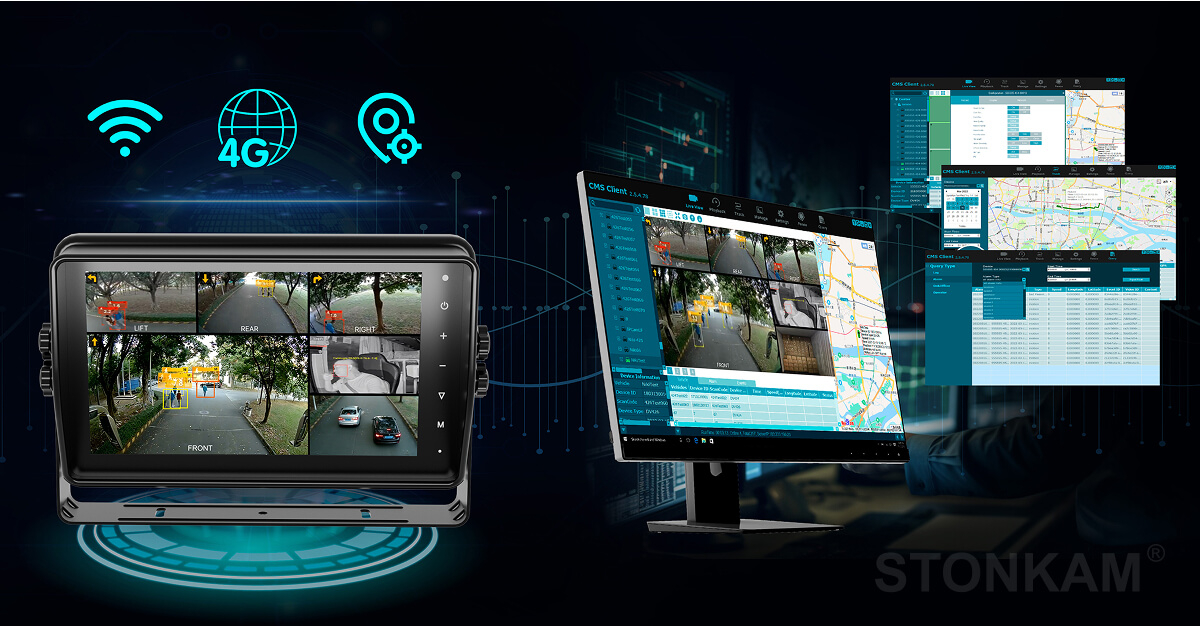

Two-in-one that combines in-vehicle DVR and monitor, make your driving safer

No need of external DVR, with built-in GPS/Wi-Fi/4G, compatible with CMSV6/WIALON platforms and JT808 protocol, you can easily track  vehicle location, receive surveillance images and data at any time through wireless network for remotemonitoring and vehicle management.

Multi-function display for vehicle





Other Functions

Lockable card slot and account/password login for data protection; Supports 6CH 1080P AHD camera input with multiple display modes (single, dual, quad, 6-split, etc.); High-brightness IPS screen; Easy-to-use touchscreen; IP66 waterproof.

Vehicle-specific display





Applications

STONKAM® 10.1-inch 6CH Pedestrian & Vehicle Detection & Early Warning Intelligent Vehicle Video Surveillance Monitor is a remarkable breakthrough in this field. It is powerful and adapts to  a wide range of applications, for example trucks, buses,  trailers, RVs, school buses, tractors, and even ships, etc., helping improve driving dafety and operation efficiency.

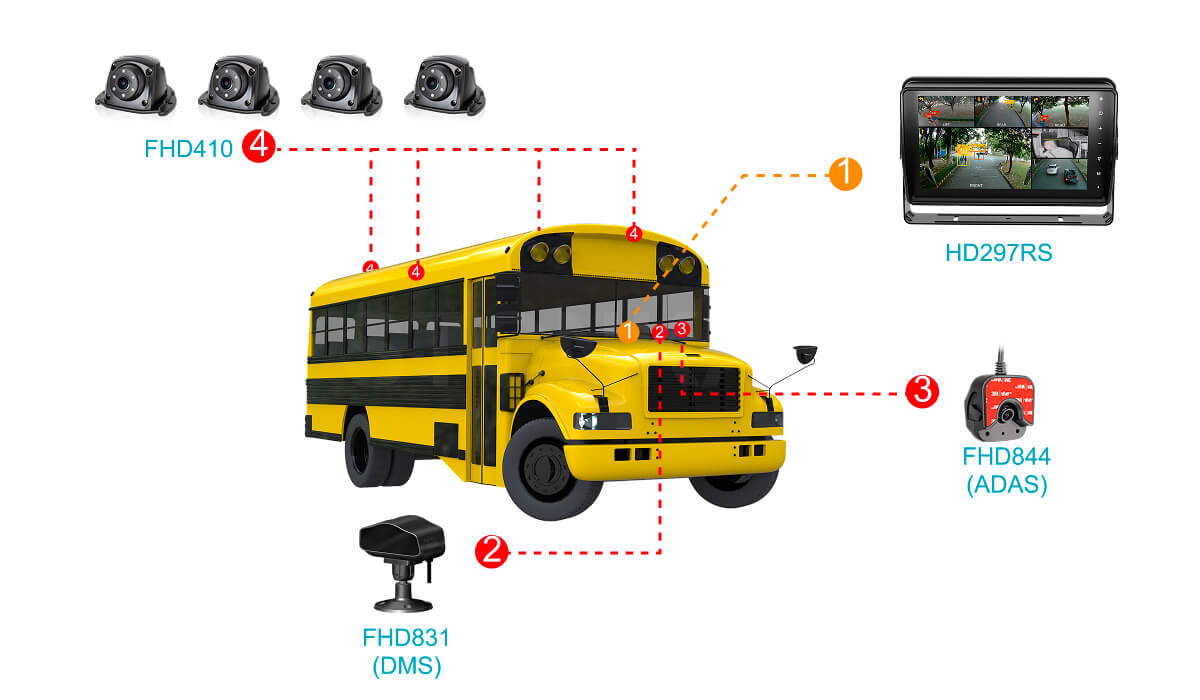

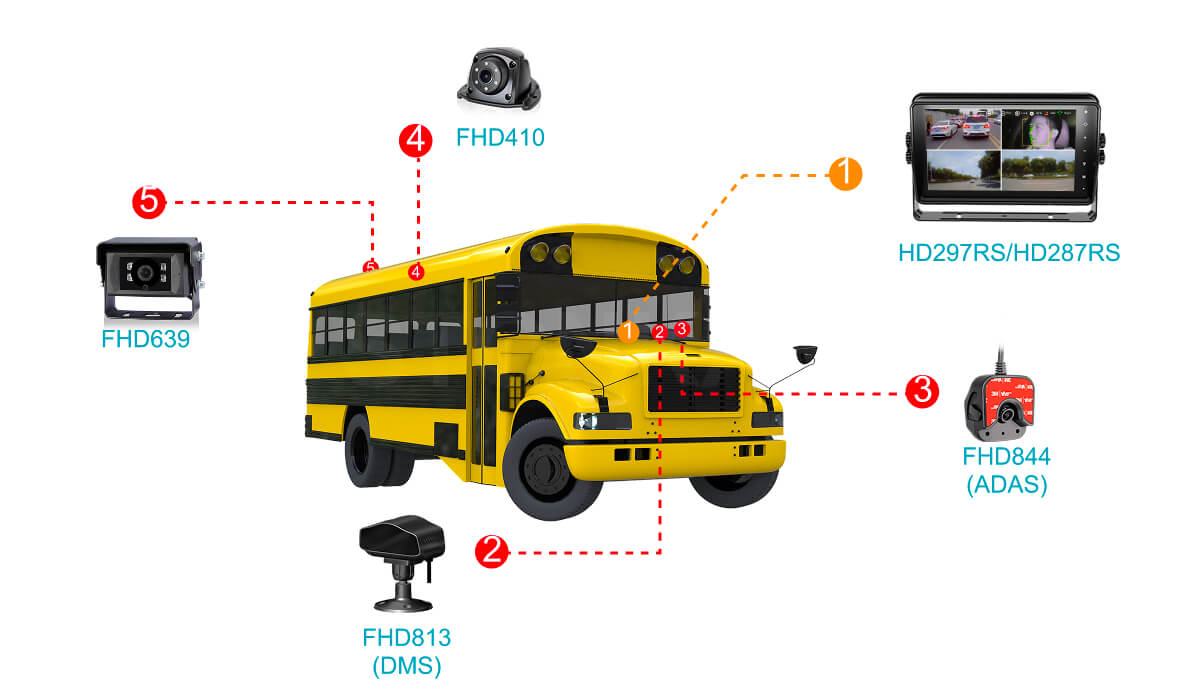

In-vehicle 4-channel monitoring systemIn-vehicle monitoring system
