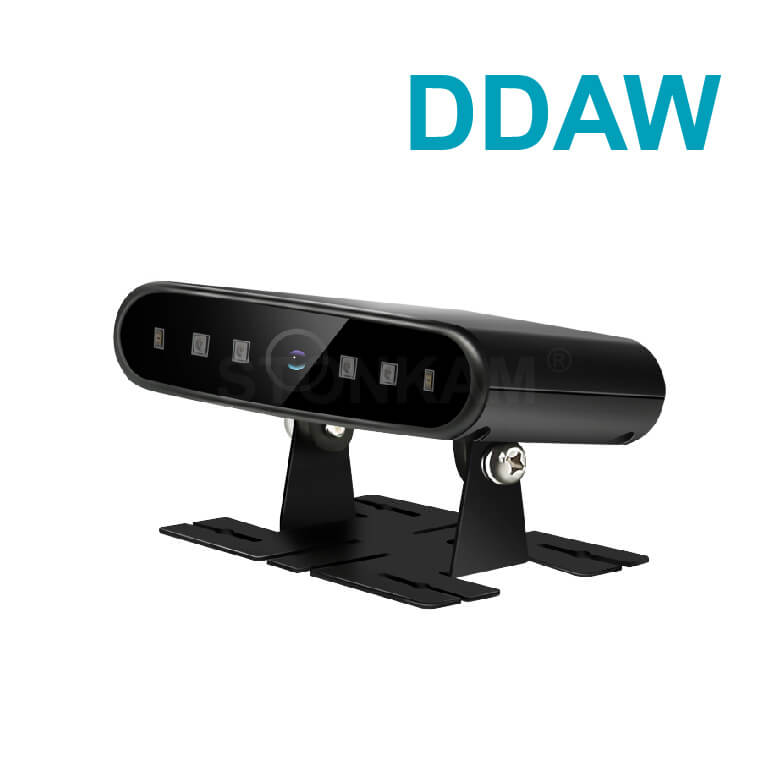

DMS Driver Status Monitoring System (DDAW)

DMS31

STONKAM DMS driver status monitoring system complies with DDAW (Driver Drowsiness and Attention Warning) regulation, effectively detecting driver fatigue and issuing timely alerts. Additionally, the system features driver identification, attention monitoring, and detection of hazardous driving behaviors. It is ideal for logistics, freight transport, public transit, and intelligent driving applications, improving driving safety while optimizing fleet management efficiency.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Typnr. Stellen Sie sich vor* Nachricht *

Merkmale

【DDAW-Compliant Safety Solution】Real-time monitoring of driver fatigue, detection of drowsiness and timely triggering of alarms to ensure driving safety.

【Aberrant Behavior Detection and Alarm】Fatigue detection, distraction detection, phone call detection, smoking detection, no driver detection, no mask detection, no seat belt detection, camera block detection, infrared blocking glasses detection, and drinking water detection, etc

【ID Recognition】 Driver identification, up to 400 certifications

【Remote Monitoring and Alarm】The vehicle operation company can monitor the driver's status in real-time via the user platform. Should any abnormal behavior and status occur, the remote platform will send alarms automatically

【Audio Alarm & Video Alarm】When aberrant driving baheviors are detected, the device will issue alarms and record the video

【All-whether Working Capability】Strong adaptability to driving environment, working 24/7, not limited by weather conditions  and day/might shift

【Auto Sensativity Adjustment】Stop or start working according to vehicle speed

【WIFI SettingCan access parameter setting on mobile phone via WiFi connection

【Powerful Compatibility】Support AHD/CVBS/fast ethernet output and RTSP, ISO17215 and other network protocols. Strong compatibility and wide application range

Power Supply

10~36V DC

Power consumption

Max 4W

Built-in camera module parameters

FHD 1920x1080P/25f or 1920x1080P/30f

Video output

1CH, AHD, 1920x1080/25f or 1920x1080/30f

Video compression

H.264

Video record resolution

720P or 1080P

Recording parameters

The recording file is in MP4 format, 128G Micro SD card

Audio compression

ADPCM

WIFI module parameters

802.11b/g/n 150Mbps

Operating temperature

-20°C ~ +60°C

Storage temperature

-40°C ~ +85 ℃

Dimension

110x86.5x64 mm

Weight

200g

GPS

YES

Speaker power

Max. 2W

Output mode

AHD/CVBS/Fast ethernet

Network protocol

RTSP/ISO17215







Why do you need STONKAM® Driver Monitoring System?



Distracted and drowsy driving are leading causes of a large number of road accidents. They’re dangerous and may happen to anyone, no matter how experienced a driver is. But with Driver Fatigue Monitoring System, you can constantly monitor driving status and promptly receive alarms upon unsafe driving behaviors, and therefore effectively reduce the risk of accidents caused by distraction and drowsiness.

驾驶员疲劳预警系统







STONKAM® Driver Monitoring System

Make Your Driving a Safe Journey





DDAW-compliant solution, smart&automatic alarm for safe driving

STONKAM® Driver Monitoring System, based on facial feature recognition, collects the driver’s facial images and head postures through the camera, and then compares them with various abnormal driving behavior models in the database to identify the current driver status.





If there is any abnormal driving behavior (such as fatigue, distraction, smoking, phone call), audible alarm and visual alarm will be given.

Driver Status Warning System-Unsafe Behaviors



Driver Status Warning System-Unsafe Behaviors



Driver Status Warning System-Unsafe Behaviors



Driver Status Warning System-Unsafe Behaviors



Driver Fatigue Monitoring System



Driver Fatigue Monitoring System





Easily set up the device on APP via Wi-Fi

The Driver Fatigue Monitoring System can connect to the Android APP designed by STONKAM® on mobile phone via Wi-Fi. Device configuration, file uploading and other functions can be easily done on the APP.

Driver Fatigue Monitoring System-Set Up on APP via WIFI





HD Video recording by 128GB SD card

 When the system detects abnormal driving behaviors, it will automatically give alarms and record for about 20 seconds of 720P/1080P HD resolution on 1 x 128GB (Max.) Micro SD card.

Driver Fatigue Monitoring Camera-Automatic Alarm Recording





Built-in GPS enables the system to automatically start or stop working

The system records the vehicle position and speed through GPS when alarm recording occurs. And it automatically stops working when the speed is lower than the starting speed set by the APP (0-25km/h), you don’t have to manually turn off the system when it’s not needed, for example, when it’s severe traffic jam.

Driver Drowsiness Detection System-Automatic Stop Working When Speed Lowered Down





Perfect seamless integration with STONKAM® Mobile DVR for fleet management
When working with our MDVR, the MDVR system can automatically record alarm events and upload relevant files; alarm info will simultaneously pop up on PC client/ mobile Android APP for fleet administrators to analyze the driving situation of vehicles.

STONKAM® Driver Fatigue Monitoring System Cooperating with MDVR





Applications

STONKAM®Driver Monitoring System is applicable to various vehicles, such as buses, trucks, and construction machinery, etc.

驾驶员疲劳预警系统

驾驶员疲劳预警系统
