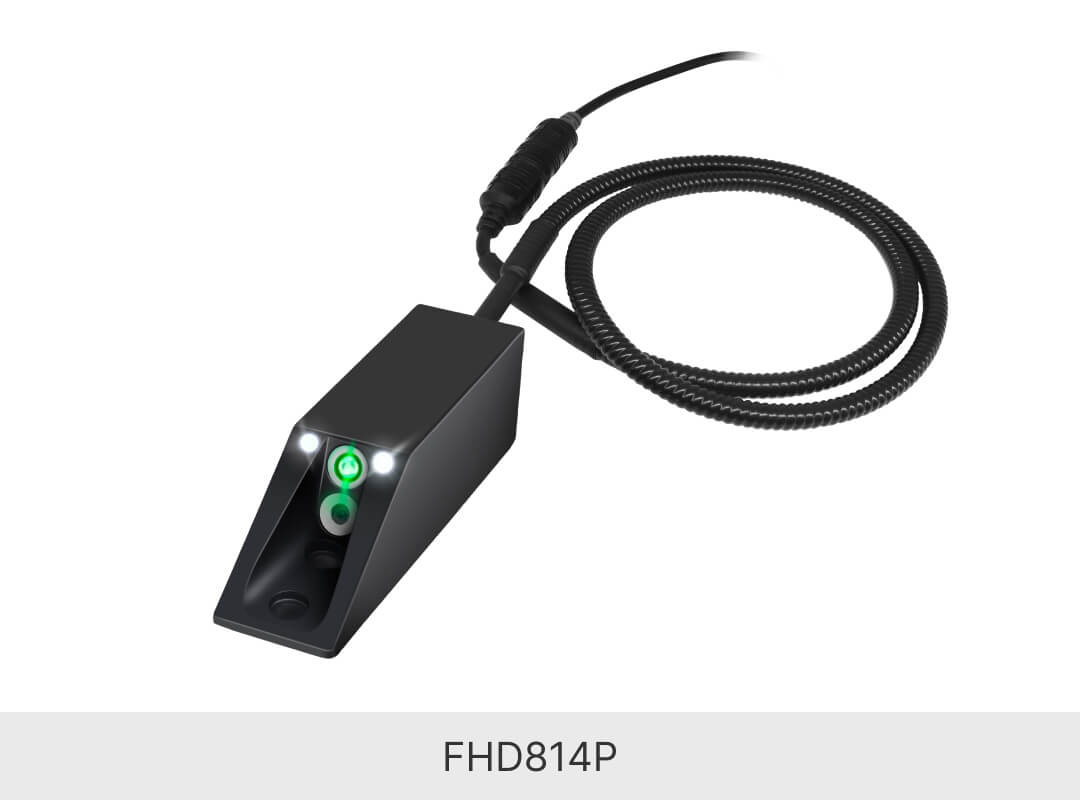

1080P HD Laser Positioning Forklift Camera

FHD814P

Forklift cameras has become a standard auxiliary tool for forklift drivers in their operations and are able to improve safety and field of view when maneuvering and storing loads, allowing drivers to work faster and safer.The STONKAM 1080P HD Laser Positioning Forklift Camera has a stable signal and a 70° viewing angle, helping to avoid blind spots and accidents while improving operational efficiency.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Typnr. Stellen Sie sich vor* Nachricht *

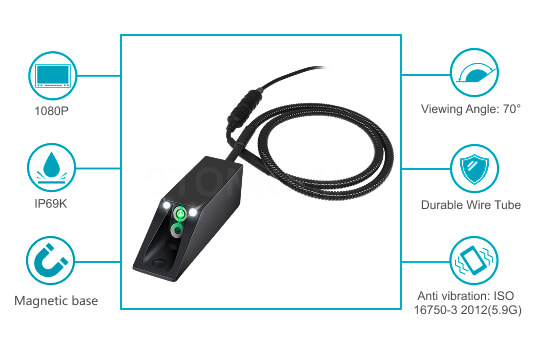

Merkmale

【1080P High Definition】1080P CMOS image sensor can help you get a clear view during forklift operation
【Laser Positioning】Built-in laser positioning line helps the driver to accurately operate the fork, so as to avoid damage to the goods
【70° Viewing Angle】Wide enough visual range can help solve blind spots problems
【Magnetic housing】No need for wiring, time-saving and effortless.
【Waterproof & Shock-resistant】IP69K waterproof, dustproof,shock resistant, durable and fit for forklift to work outside
【Pinhole Lens】The glass outside the lens is relatively small, which can protect the lens well and prevent collisions with other objects such as sawdust, extending the it's lifespan.
【Mini appearance】The camera is compact and mini in size, and can be easily installed on a slim forklift arm.
【Corrugated Wire Tube】 Wire tube design for impact resistance, enhancing wire durability.

Forklift camera(FHD814P):

Image Device

1/2.9"

Frame Rate

25/30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.8 μm x 2.8 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

Auto

AGC

Auto

BLC

Auto

Dynamic Range

81dB

Electronic Shutter

1/30(1/25)~1/50,000 Seconds

Operating Temp. & Humidity

–20℃ ~ +70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~+ 80℃, RH95%MAX.

Minimum Illumination

0Lux

Power Supply

DC10-32V

Power Consumption

1.7 ~ 2.2W

Night Vision Distance

NO IR LED

Waterproof Rating

IP69K

Audio

No

Viewing Angle

Horizon:70° Vertical:39°

Heater

No

IR-Cut Function

No

Image Mode

Normal







Troubling problems......





Forklift Safety







STONKAM 1080P HD Laser Positioning Forklift Camera can solve your troubles!



Increased efficiency
STONKAM forklift camera provides a better view during operation and solve blind spots problems so you can quickly observe the working area on the monitor, and place the forks on exact position. It makes your work time-saving and high efficient.



►Increased safety
Low visibility around forklifts due to cargo obstructions leaves drivers little reference point, will cause collisions and accidents. STONKAM forklift cameras help drivers catch clear image in front of the vehicle especially in areas where human blind spots exist, avoiding accidents.



►Improved comfort
The display saves driver from strenreous posture adjustment to view cargoes, racks and aisles. This can reduce muscle tension to lessen driver fatigue, improve workability and efficiency.

Forklift Safety

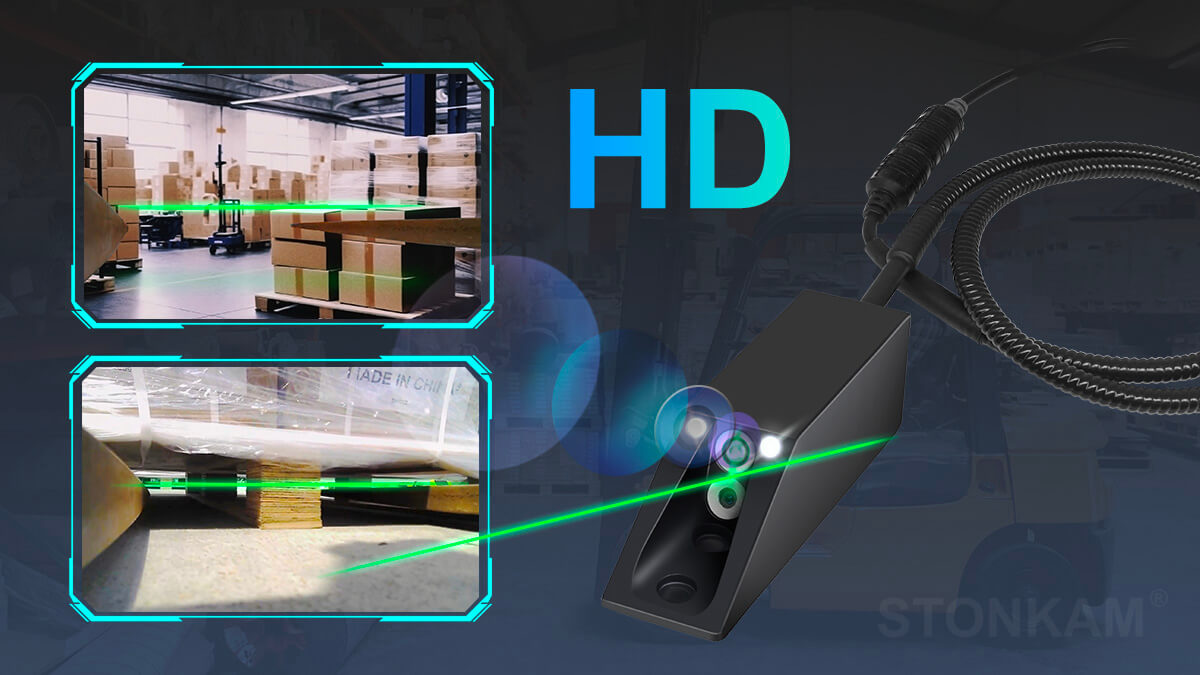

1080P High Definition, make your work easier and more efficient

STONKAM forklift camera with 1080P CMOS image sensor provides a clear view of the route and operation environment. The LED lights also make it clear and easy in different environment to load, unload, transport and store goods at exact position.

Forklift Camera

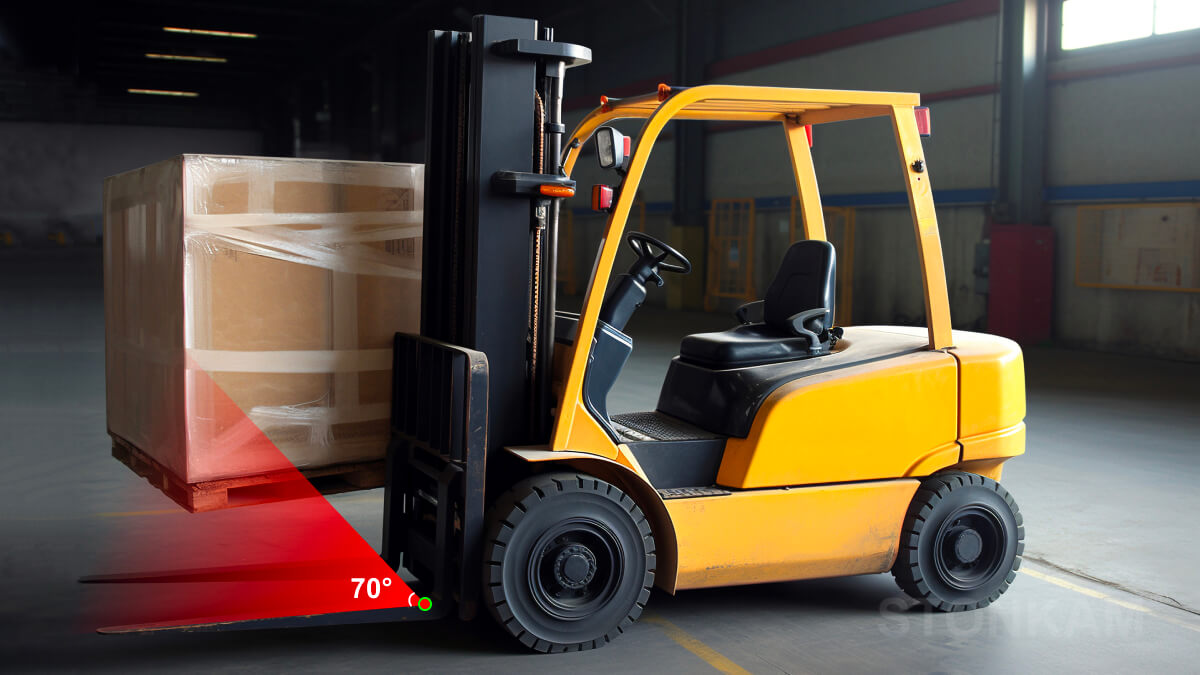

70° forklift front view angle for fewer blind spots!

The forward view of the forklift extends the driver's operational visibility, helping the driver to clearly see the work area in front of the vehicle and minimize the risk of hitting objects, other material handling equipment or even people.

forklift safety camera

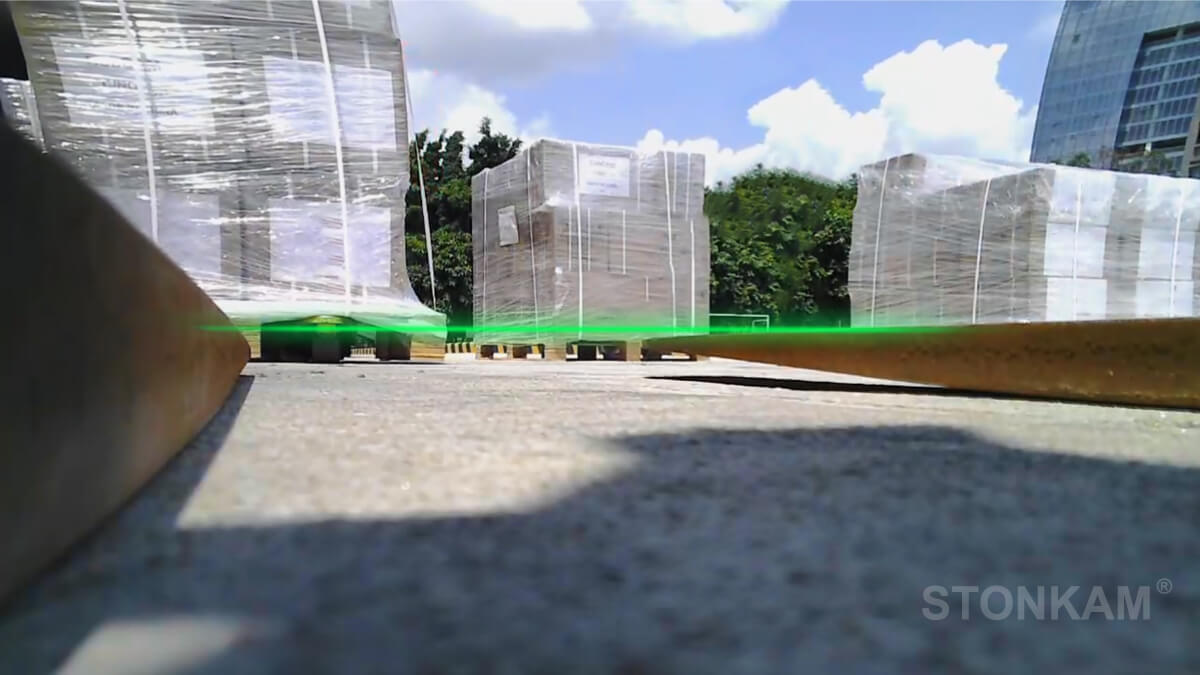

Laser Positioning, accurate handling

The built-in laser positioning line perfectly solves handling inaccuracy and cargo damages when the driver operates the lift. By projecting a green line, the driver can precisely control forks by the green line reference, thus can avoid damage to goods and improve operational efficiency. What's more, the laser positioning line can work as warning light when the forklift is turning around, it can remind other people to stay away from the forklift and avoid collisions.

forklift safety camera



forklift safety camera

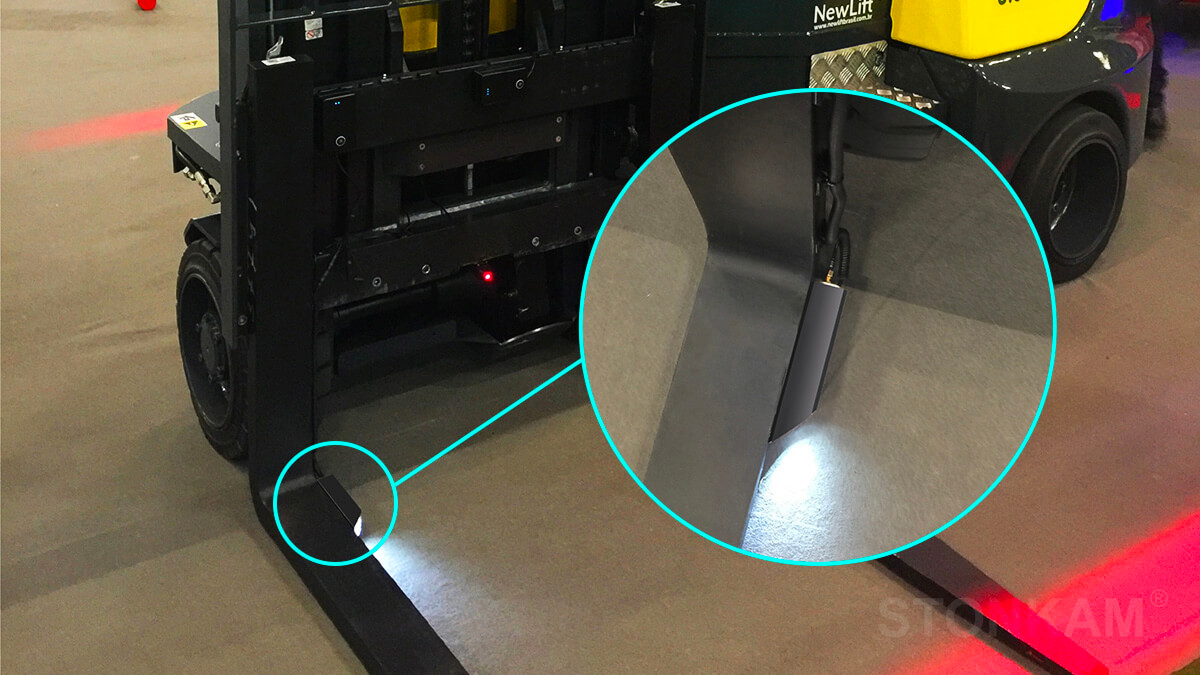

Magnetic housing for wire-free installation

Just simply place the magnetic forklift camera on the iron arm, and the camera can firmly attach to the forklift.

forklift camera

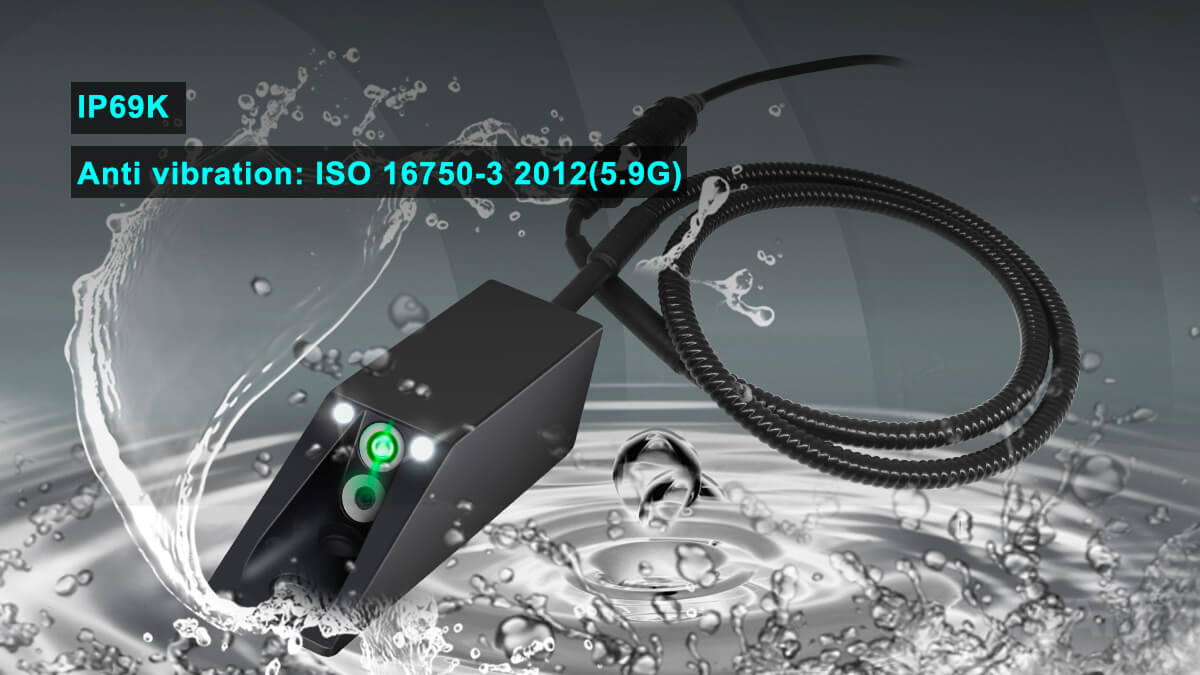

Waterproof & Shock-resistant

IP69K waterproof, dustproof,shock resistant, durable and fit for forklift to work outside.

forklift safety camera

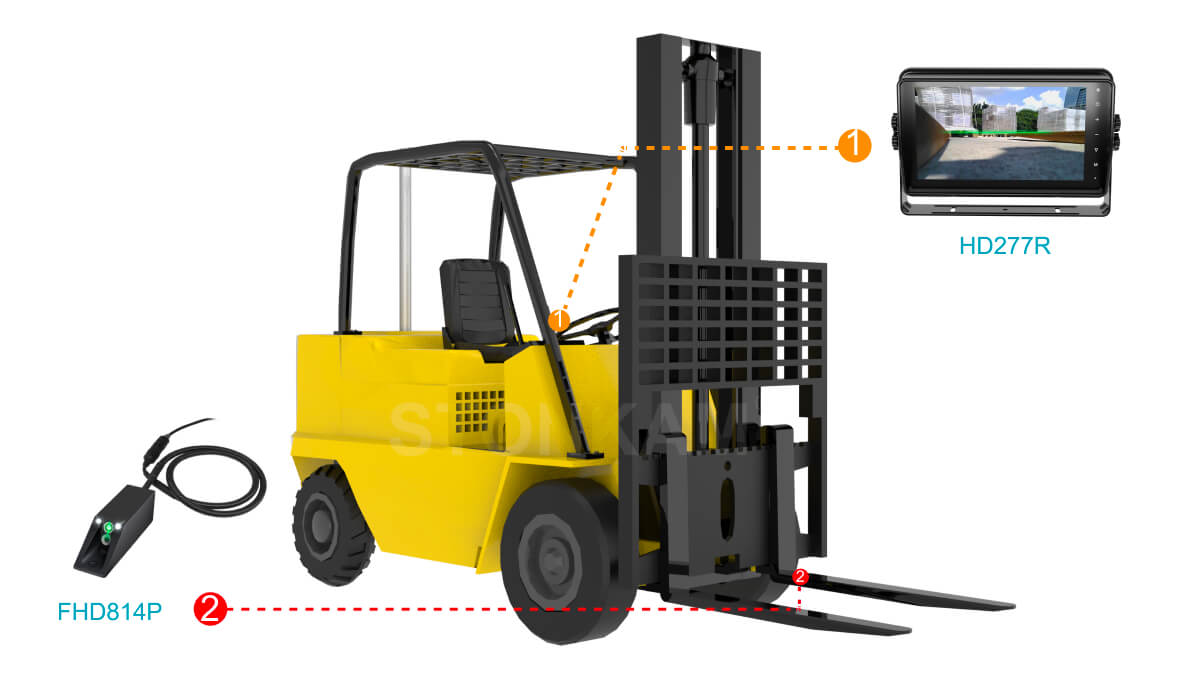

Applications

Forklift cameras has become a standard auxiliary tool for forklift drivers in their operations and are able to improve safety and field of view when maneuvering and storing loads, allowing drivers to work faster and safer.The STONKAM 1080P HD Laser Positioning Forklift Camera has a stable signal and a 70° viewing angle, helping to avoid blind spots and accidents while improving operational efficiency.

forklift safety camera
