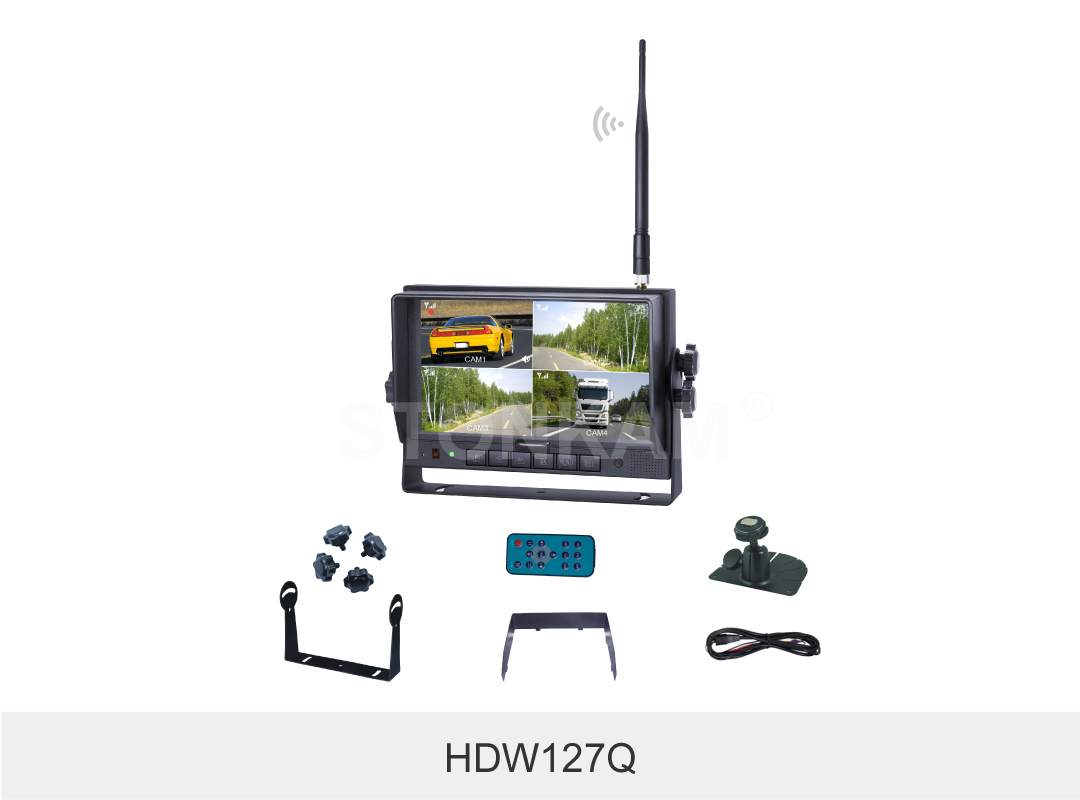

7 inch HD 2.4GHz Digital Wireless Vehicle Quad-view Monitor

7 inch HD 2.4GHz Digital Wireless Vehicle Quad-view Monitor

HDW127Q

STONKAM® HD Digital Wireless Vehicle Quad-view Monitor is easy to install and has built-in video recorder. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD wireless cameras to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Wireless Monitor System products.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

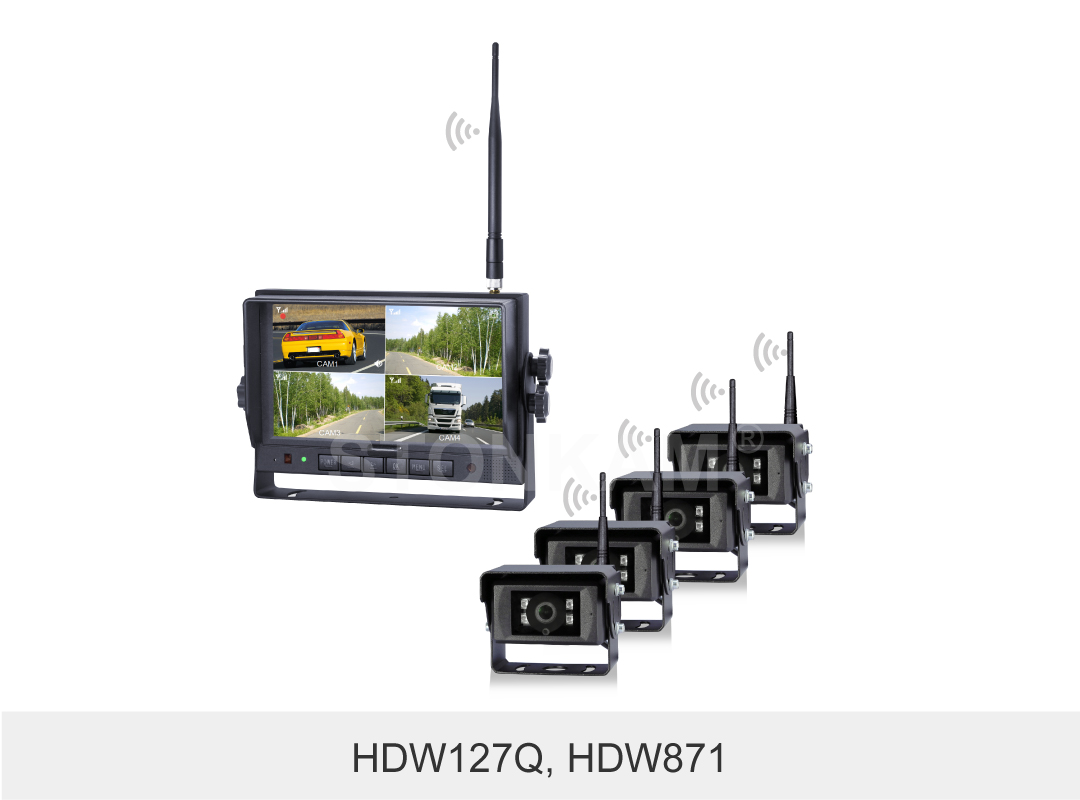

Support 4CH wireless camera and wireless transmitter
Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly

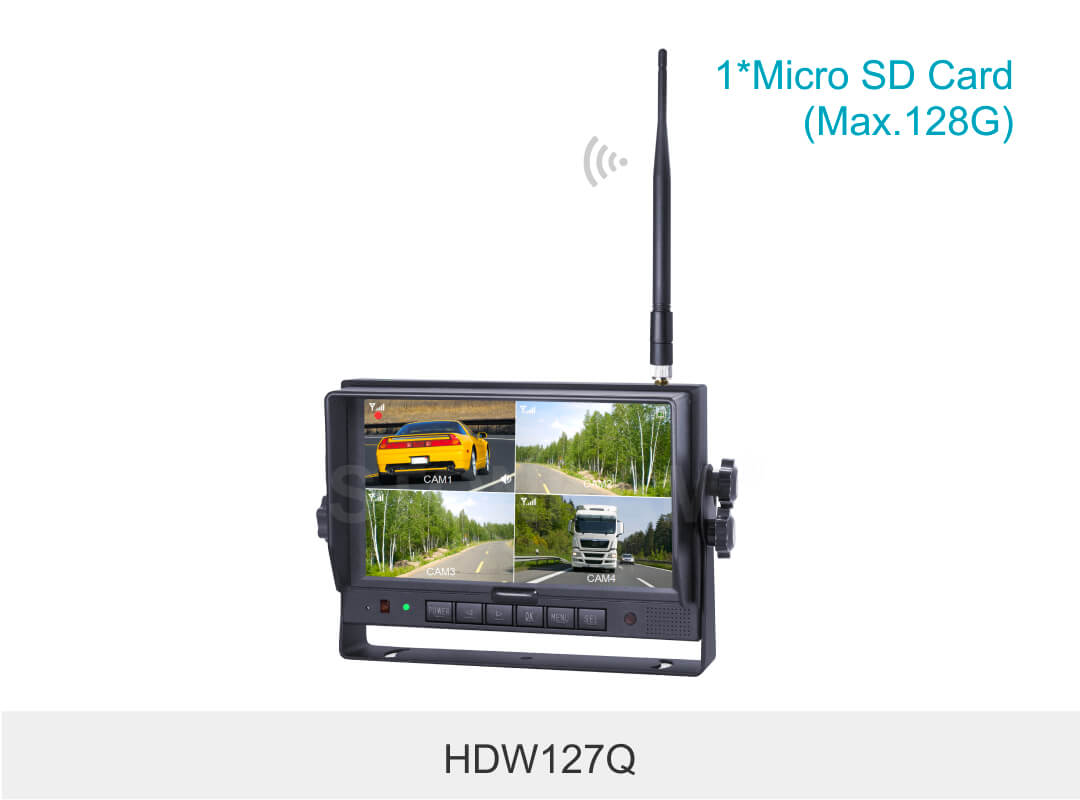

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback
Supports both manual and automatic pairing
Supporting 1080P/720P camera input
Touch screen optional
Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable
Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds
Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds
Support power fail safeguard by super-capacitor
Rear view parking lines can be configured

LCD Dimension	7"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:80 / D:85, R/L:85
Pixel size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2400MHz ~ 2483.5MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmission Power	FCC≤26dBm CE≤20dBm MIC≤10dBm
Decompression Form	H.264
Modulation	FHSS
Delay	200ms
Transmission Distance	FCC≤300 M CE≤200 M MIC≤60 M
Storage	Micro SD card, up to 128GB
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1W/8Ω
Operating temp. & humidity	-20~+70ºC,RH90%MAX
Storage temp. & humidity	-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® Digital Wireless Vehicle Monitor?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Open transmission distance up to 984ft (300m)

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Touch screen optional

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Crane	Planter

Applications

STONKAM® Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.
