7 Inch Waterproof Rear View System

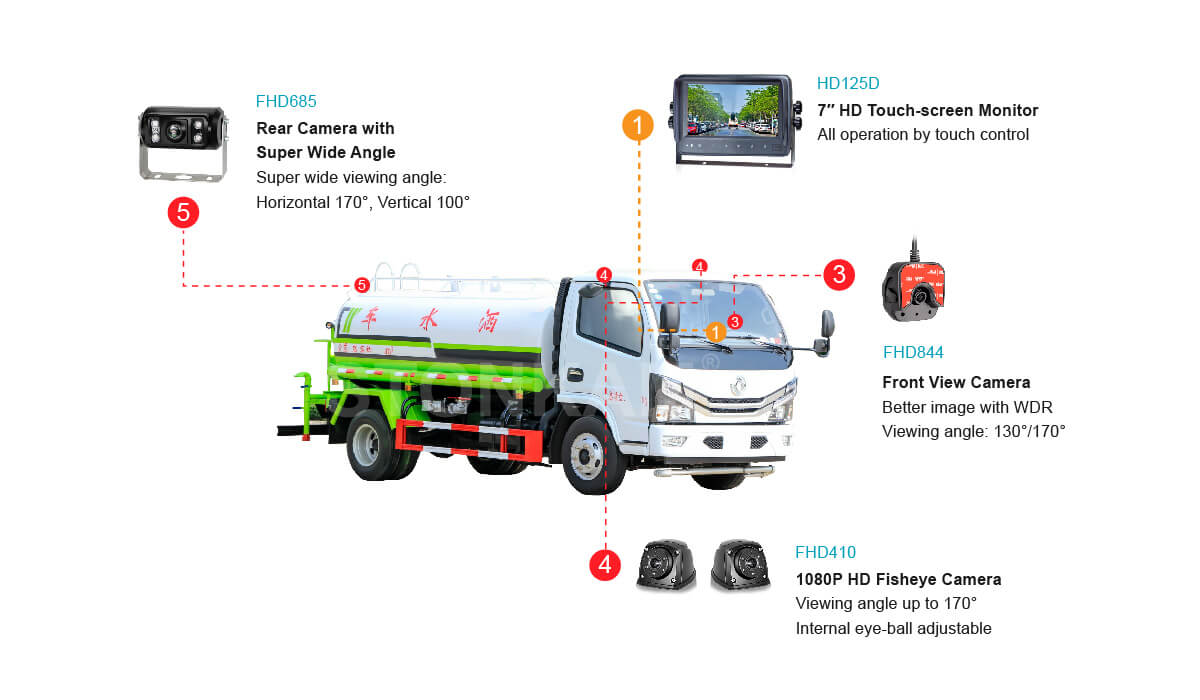

HD125D, FHD844, FHD410, FHD685

STONKAM® supplies the best high definition car rear view monitors featuring touch screen/ button, anti-vibration, remote control, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

IP66 waterproof
TFT LCD display with wide viewing angle and high resolution
4 channel cameras input, 4 reverse trigger wire
Picture image adjustable for vertical, mirror and normal viewing
Multiple video formats available:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
Full-function remote control
Support touch buttons with backlight
Speaker available and users can adjust the volume from the control panel
8 languages selectable for user operation: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
Automatic backlight adjustment
10 - 32V wide voltage input; support 12V or 24V automobile battery

Color Depth	24 bit
Display Colors	16.7M dithering
Power Supply	Automobile storage battery (10-32V)
Power Consumption	Max 6W
Dimension	197.2mm (W) × 132mm (H) × 30.5mm (T)
Dot Pitch	0.1506(H) × 0.1432 (V)
Resolution	1024 x 3(RGB) x 600
Waterproof	IP66
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U: 85°,D: 85°, R/L: 85°/85°
Operating Temp. & Humidity	-20ºC~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30ºC~+80ºC,RH90%MAX

Application

HD vehicle surveillance monitor

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

IP66 waterproof

TFT LCD display with wide viewing angle and high resolution

4 channel cameras input, 4 reverse trigger wire

Picture image adjustable for vertical, mirror and normal viewing

Multiple video formats available:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC

Full-function remote control

Support touch buttons with backlight

Speaker available and users can adjust the volume from the control panel

8 languages selectable for user operation: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian

Automatic backlight adjustment

10 - 32V wide voltage input; support 12V or 24V automobile battery

Color Depth

24 bit

Display Colors

16.7M dithering

Power Supply

Automobile storage battery (10-32V)

Power Consumption

Max 6W

Dimension

197.2mm (W) × 132mm (H) × 30.5mm (T)

Dot Pitch

0.1506(H) × 0.1432 (V)

Resolution

1024 x 3(RGB) x 600

Waterproof

IP66

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U: 85°,D: 85°, R/L: 85°/85°

Operating Temp. & Humidity

-20ºC~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30ºC~+80ºC,RH90%MAX

Application
