10.1 inch HD Digital Wireless Quad-view Monitor

10.1 inch HD Digital Wireless Quad-view Monitor

HDW295Q

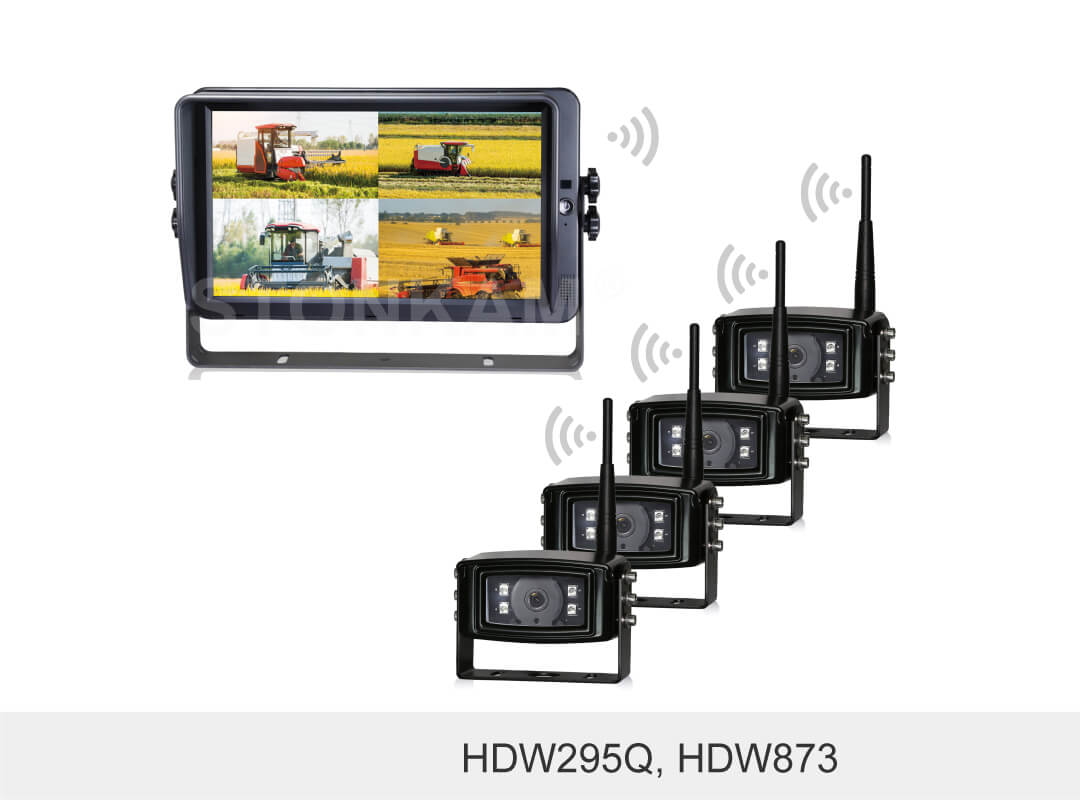

STONKAM® 10.1 inch HD Digital Wireless Vehicle Quad-view Monitor is easy to install and has built-in video recorder. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD wireless cameras to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Wireless Monitor System products.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

Support 4CH wireless camera and wireless transmitter.
Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.
Supports both manual and automatic pairing.
Supporting 1080P/720P camera input.
Touch screen optional.
Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
Support power fail safeguard by super-capacitor.
Rear view parking lines can be configured.

LCD Dimension	10.1"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:85 / D:85, R/L:85
Pixel Size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2408MHz ~ 2478MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmitting Distance	Max. 300m
Decompression Form	H.264
Modulation	FHSS
Delay	Min. 130ms
Storage	Micro SD Card, up to 128G
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1.5W/8Ω
Operating Temp. & Humidity	-20~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® 10.1 inch Digital Wireless Vehicle Monitor?

wireless vehicle monitor

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Wireless vehicle Monitor

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

wireless camera system

Open transmission distance up to 984ft (300m)

wireless vehicle monitor

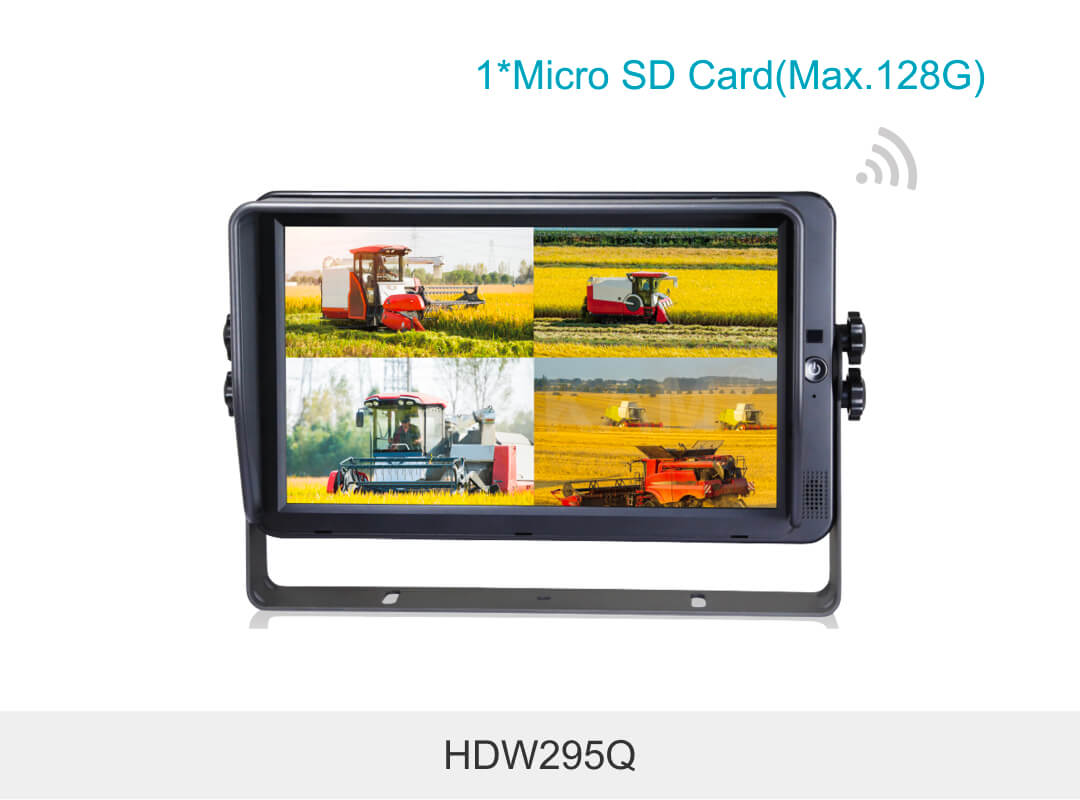

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

wireless vehicle monitor

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Digital Wireless vehicle Monitor,

Touch screen optional

Digital Wireless lcd Monitor

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Crane	Planter

Applications

STONKAM® Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.

10.1 Digital Wireless Vehicle Monitor

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

Support 4CH wireless camera and wireless transmitter.

Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

Supports both manual and automatic pairing.

Supporting 1080P/720P camera input.

Touch screen optional.

Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.

Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.

Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.

Support power fail safeguard by super-capacitor.

Rear view parking lines can be configured.

LCD Dimension

10.1"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:85 / D:85, R/L:85

Pixel Size

0.1506(W) x 0.1432(H)

Aspect Ratio

16:9

Channel

4 CH

Operating Frequency

2408MHz ~ 2478MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmitting Distance

Max. 300m

Decompression Form

H.264

Modulation

FHSS

Delay

Min. 130ms

Storage

Micro SD Card, up to 128G

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1.5W/8Ω

Operating Temp. & Humidity

-20~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® 10.1 inch Digital Wireless Vehicle Monitor?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Open transmission distance up to 984ft (300m)

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Touch screen optional

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor can be applied to various vehicles, such as forklift, crane, harvester, etc.

Harvester

Excavator

Farm

Forklift

Crane

Planter

Applications

STONKAM® Digital Wireless Vehicle Monitor can be applied to various vehicles by easy installation without running long cables.
