5.6-inch HD 4:3 TFT LCD Car Rearview Monitor

5.6-inch HD 4:3 TFT LCD Car Rearview Monitor

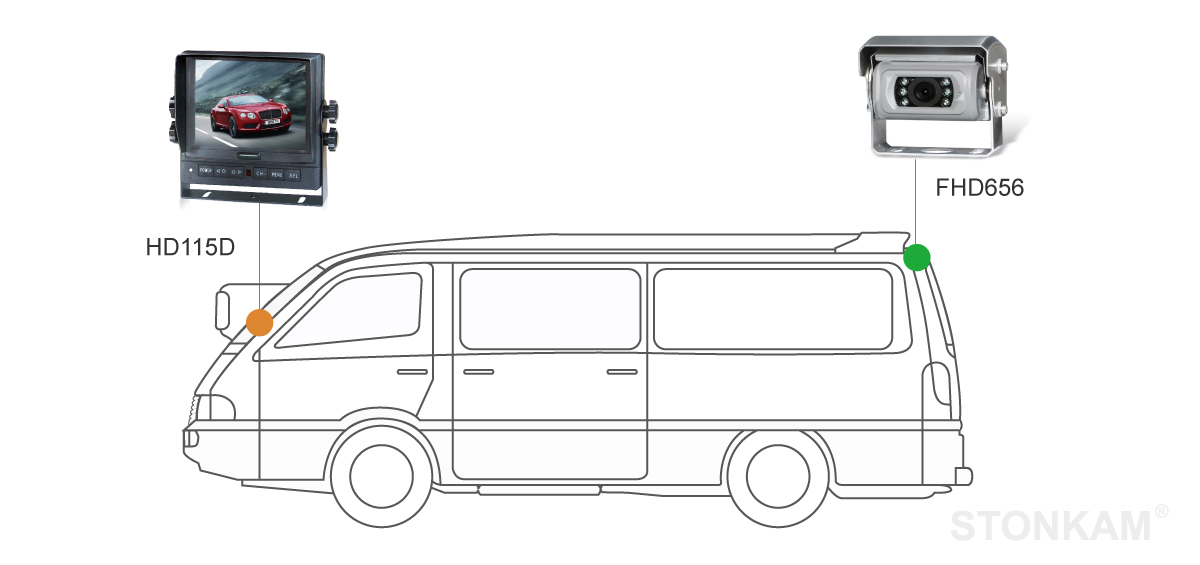

HD115D,FHD656

STONKAM 5.6-inch HD 4:3 TFT LCD Car Rearview Monitor with digital screen.Picture image adjustable for vertical, mirror and normal viewing.4 cameras input, 4 reversing trigger wire.Operates from 10 - 32V. Supports 12V or 24V automobile battery,etc.

Anfrage

hinterlassen Sie Ihre Nachricht und Kontaktdaten, wir werden uns schnellstmöglich melden!

Merkmale

4:3 TFT LCD monitor with digital screen
Picture image adjustable for vertical, mirror and normal viewing
8 languages selectable for user operation:English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
Multiple video formats available:1080P30/1080P25/720P30/720P25/PAL/NTSC
Automatic backlighting for screen, automatic adjust to the brightness of environment
Full-function remote control
Support mechanical buttons with backlighting
Speaker available and users can control the sound level from control panel
4 cameras input, 4 reversing trigger wire
Operates from 10 - 32V. Supports 12V or 24V automobile battery

Power supply	Automobile storage battery (10-32V)
Power consumption	about 10W
Active area	112.896mm (W) × 84.672mm (H)
Module size	126.5mm (W) × 100mm (H) × 5.7mm (D)
Dot pitch	0.0588(W) × 0.1764(H)mm
Resolution	640 x 3(RGB) x 480
Contrast	500:1
Brightness	200cd/m²
Viewing angle	U: 50°,D: 70°, R/L: 70°/70°
Operating temperature	-20ºC~+70ºC,RH90%
Storage temperature	-30ºC~+80ºC,RH90%

Applications

TFT LCD Car Rearview Monitor

hinterlassen Sie Ihre Nachricht und Kontaktdaten, wir werden uns schnellstmöglich melden!

Merkmale

4:3 TFT LCD monitor with digital screen

Picture image adjustable for vertical, mirror and normal viewing

8 languages selectable for user operation:English, French, Portuguese, Spanish, Russian, Dutch, German, Italian

Multiple video formats available:1080P30/1080P25/720P30/720P25/PAL/NTSC

Automatic backlighting for screen, automatic adjust to the brightness of environment

Full-function remote control

Support mechanical buttons with backlighting

Speaker available and users can control the sound level from control panel

4 cameras input, 4 reversing trigger wire

Operates from 10 - 32V. Supports 12V or 24V automobile battery

Power supply

Automobile storage battery (10-32V)

Power consumption

about 10W

Active area

112.896mm (W) × 84.672mm (H)

Module size

126.5mm (W) × 100mm (H) × 5.7mm (D)

Dot pitch

0.0588(W) × 0.1764(H)mm

Resolution

640 x 3(RGB) x 480

Contrast

500:1

Brightness

200cd/m²

Viewing angle

U: 50°,D: 70°, R/L: 70°/70°

Operating temperature

-20ºC~+70ºC,RH90%

Storage temperature

-30ºC~+80ºC,RH90%

Applications
