1080P Waterproof 170° Image Correction Automotive Camera

1080P Waterproof 170° Image Correction Automotive Camera

FHD685

STONKAM® supplies the best 1080P automotive cameras featuring high definition, IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

1080P high definition
IP69K rating
Lens distortion correction 170°
Night vision distance: 8m~10m (26.25ft~32.81ft)
Anti-vibration: ISO 16750-3 (Max. 5.9G)
Working temperature: -20ºC ~ +70ºC
Mirror / Normal image

Image Device	1/2.9” CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
Signal to Noise Ratio	38dB
White Balance	Auto
Exposure	Auto
Dynamic Range	105dB
Power Supply	DC12V
Operating Temp. & humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & humidity	–30℃ ~ 80℃, RH95%MAX.
Waterproof Rating	IP69K
Viewing Angle after Correction	Horizontal 170° Vertical 84°
Audio	Yes
Minimum Illumination	0 Lux
Night Vision Distance	8~10m
Image Mode	Mirror/Normal image switchable

Horizontal Angle Comparision

STONKAM® Automotive camera-High Definition with Image Correction

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Normal Camera

Viewing Angle: 110° (H)

Vertical Angle Comparision

HD Camera with Image Correction

Viewing Angle: 84° (V)

HD Normal Camera

Viewing Angle: 60° (V)

Correction and Distortion Comparision

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Original Camera

Viewing Angle: 175° (H)

Applications

STONKAM® 1080P waterproof automotive cameras can be applied to various vehicles.

E.g. for trucks

HD camera

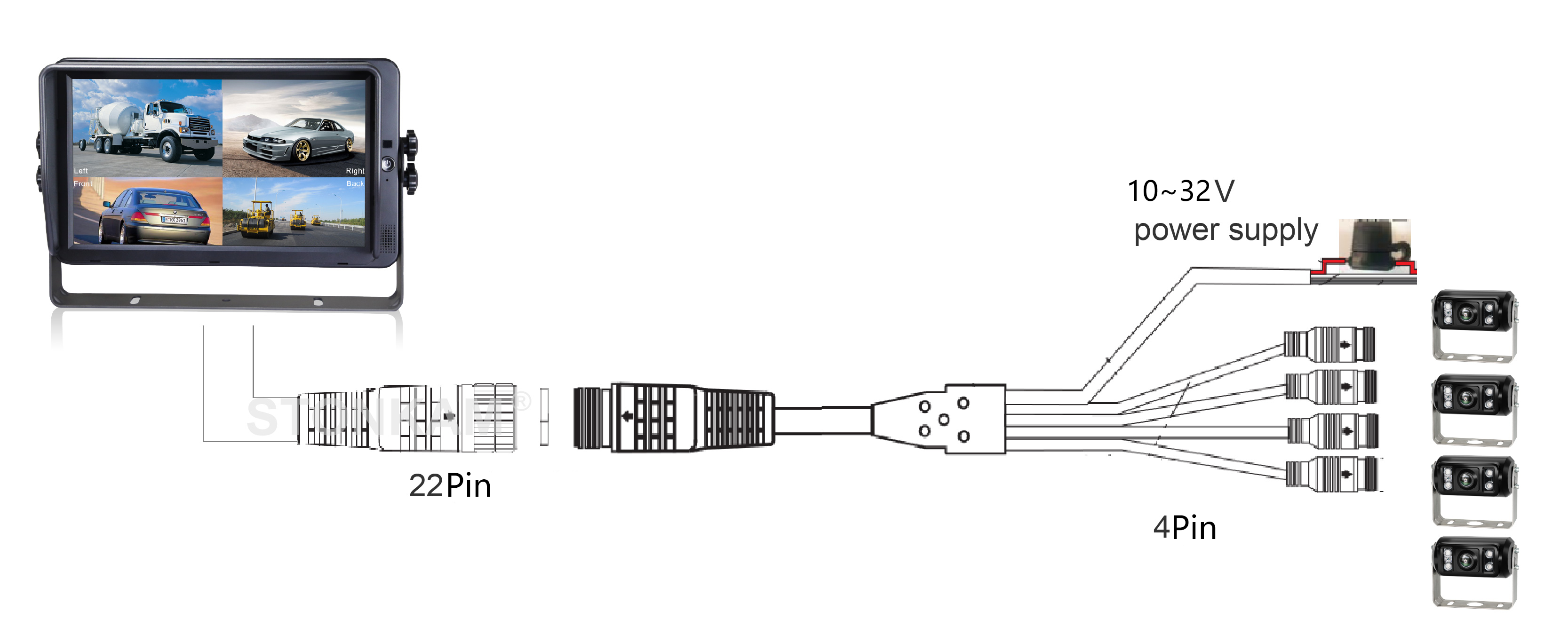

Connection

HD camera

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

1080P high definition

IP69K rating

Lens distortion correction 170°

Night vision distance: 8m~10m (26.25ft~32.81ft)

Anti-vibration: ISO 16750-3 (Max. 5.9G)

Working temperature: -20ºC ~ +70ºC

Mirror / Normal image

Image Device

1/2.9” CMOS

Frame Rate

25/30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.8 μm x 2.8 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

Signal to Noise Ratio

38dB

White Balance

Auto

Exposure

Auto

Dynamic Range

105dB

Power Supply

DC12V

Operating Temp. & humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & humidity

–30℃ ~ 80℃, RH95%MAX.

Waterproof Rating

IP69K

Viewing Angle after Correction

Horizontal 170° Vertical 84°

Audio

Yes

Minimum Illumination

0 Lux

Night Vision Distance

8~10m

Image Mode

Mirror/Normal image switchable

Horizontal Angle Comparision

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Normal Camera

Viewing Angle: 110° (H)

Vertical Angle Comparision

HD Camera with Image Correction

Viewing Angle: 84° (V)

HD Normal Camera

Viewing Angle: 60° (V)

Correction and Distortion Comparision

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Original Camera

Viewing Angle: 175° (H)

Applications

STONKAM® 1080P waterproof automotive cameras can be applied to various vehicles.

E.g. for trucks

Connection
