Vehicle Rear View & Reversing Monitoring System (UN ECE R158)

Vehicle Rear View & Reversing Monitoring System (UN ECE R158)

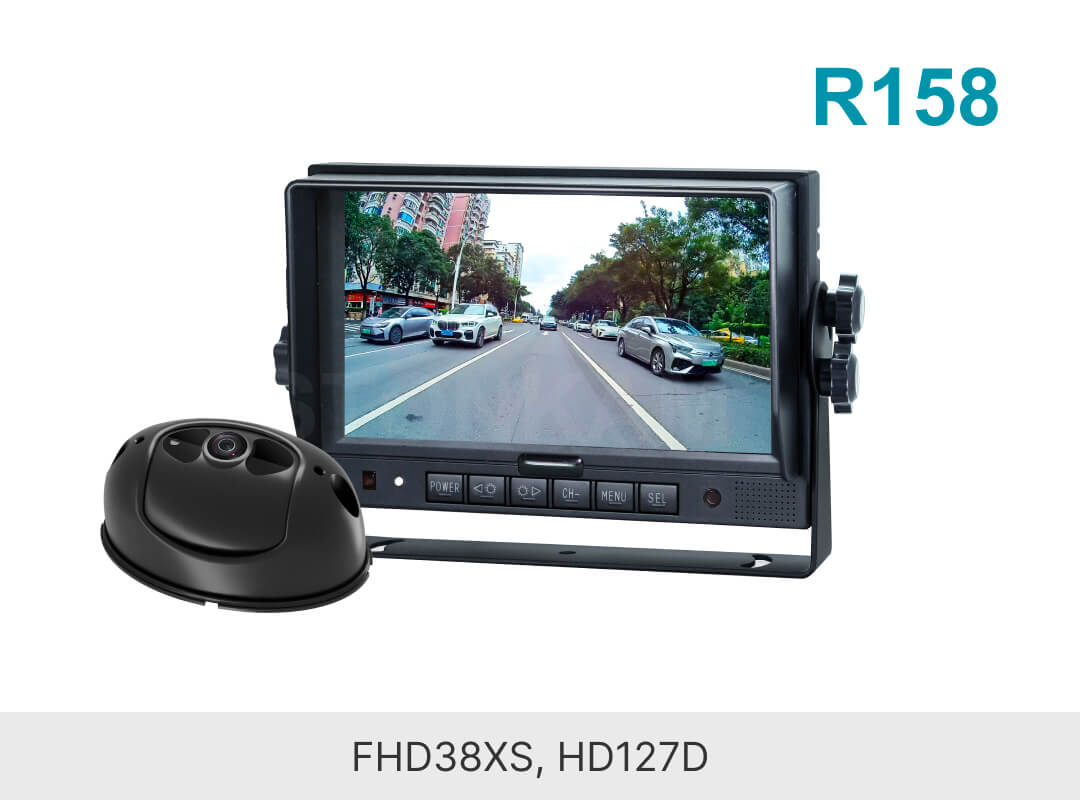

FHD38XS, HD127D

STONKAM Vehicle Rear View and Reversing Monitoring System complies with the UN ECE R158 technical requirements for RVCS (Rear View Camera System). It effectively monitors the area behind the vehicle and displays real-time images to the driver, enhancing the driver's awareness of vulnerable road users in the rear blind spot and helping to prevent collisions while reversing. Compact and lightweight, the system is easy to install and ideal for trucks, buses, coaches, and other types of commercial vehicles.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

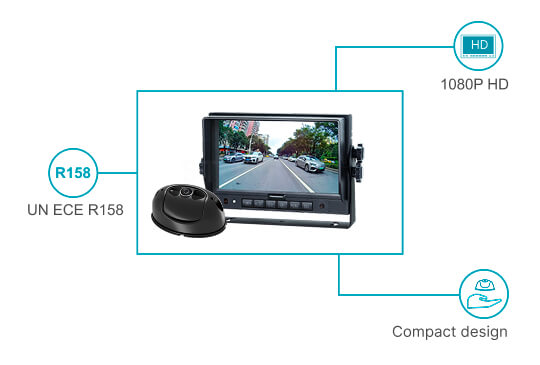

Merkmale

【UN ECE R158-Compliant Solution】Expands rear blind spot visibility to significantly improve reversing safety.

【Compact Design】Easily adaptable to various vehicle types with simple installation.

【1080P HD】Delivers clear and reliable visual support for enhanced driver awareness.

Image Device	1/2.9＂CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
Signal to Noise Ratio	38dB
White Balance	Auto
Exposure	Auto
Dynamic Range	81dB
Power Supply	DC12V
Operating Temp. & humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & humidity	–30℃ ~ 80℃, RH95%MAX.
Viewing Angle after Correction	Horizontal: 141° Vertical: 77°
Lens	4G
Image Mode	Color
Power Consumption	No IR: 1.000W (±10%) / With IR: 2.000W (±10%)

Worried about reversing safety and regulatory barriers for your products?

1. Large rear blind spots lead to frequent accidents, making it difficult to ensure driver and pedestrian safety.
2. Strict safety regulations in overseas markets make it challenging for products to meet compliance requirements and gain market access.

Reversing Monitoring System

STONKAM Rear View and Reversing Monitoring System — Your Reliable Solution!
Effectively addresses the safety and compliance challenges above.

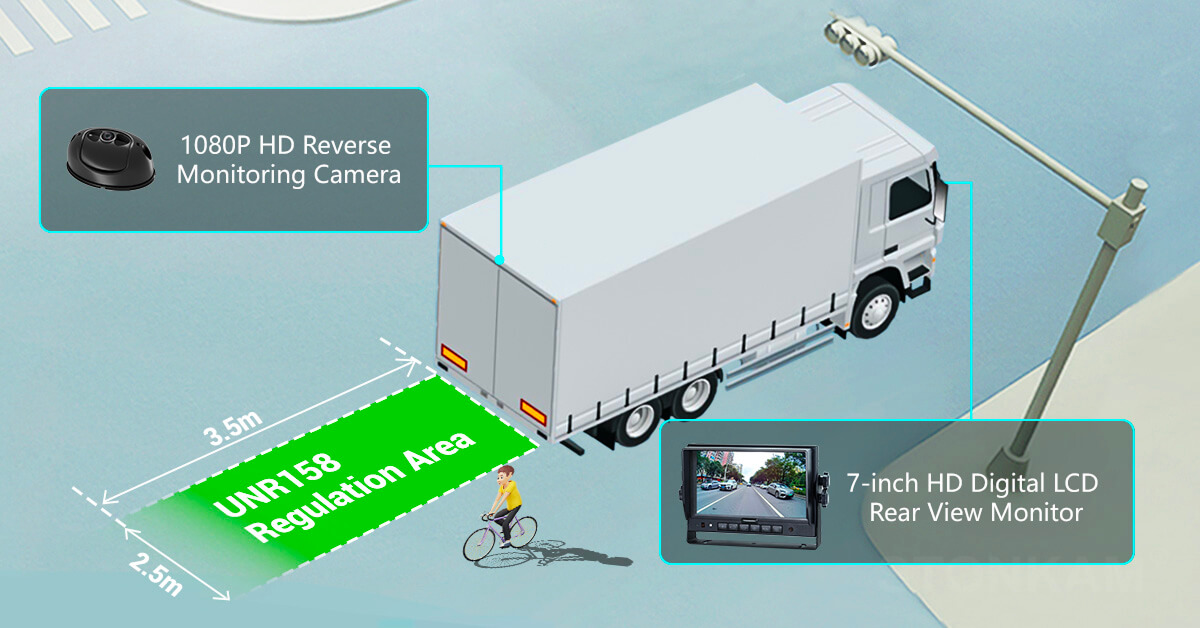

R158 Compliant — Enhancing Reversing Safety

STONKAM 1080P HD Vehicle Rear View and Reversing Monitoring System covers the vehicle’s rear blind spot, allowing the driver to clearly see potential hazards via the in-cab display — especially vulnerable road users such as pedestrians and cyclists. This helps effectively reduce the risk of collisions and significantly improves reversing safety.

Vehicle Rear View & Reversing Monitoring System

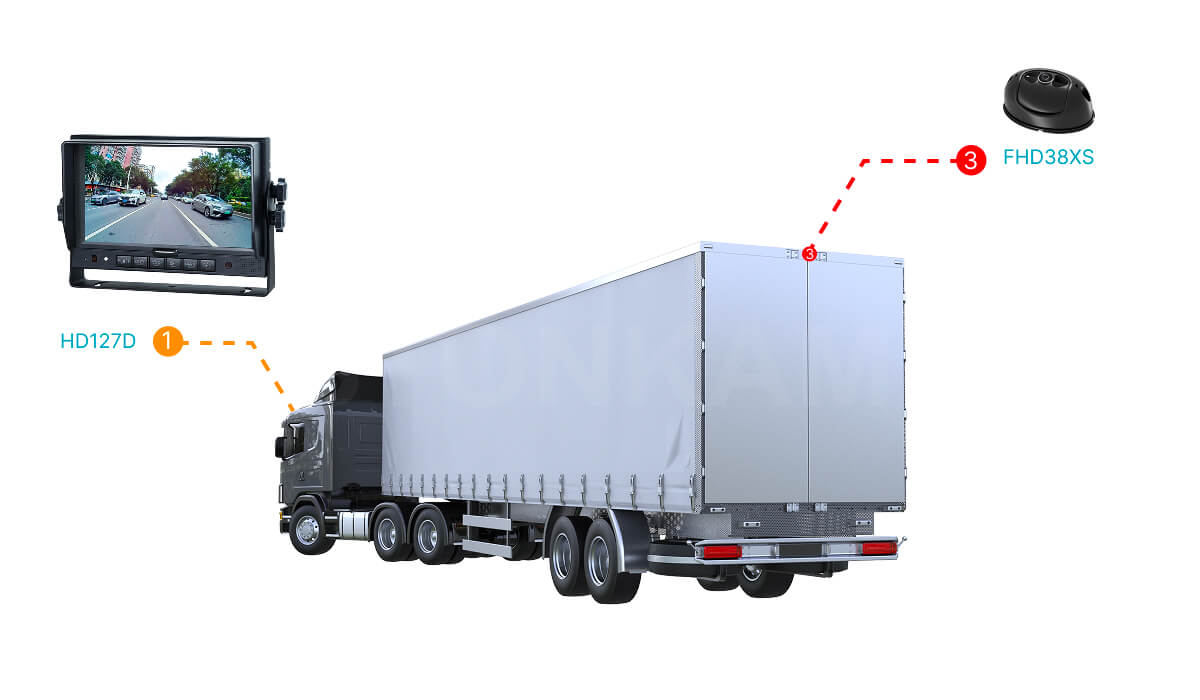

Application

STONKAM 1080P HD Rear View and Reversing Monitoring System meets UN ECE R158 requirements, providing drivers with a clear and wide rear view. It’s an ideal solution for improving reversing safety and achieving smooth regulatory approval in global markets.

UN ECE R158 Compliant

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

【UN ECE R158-Compliant Solution】Expands rear blind spot visibility to significantly improve reversing safety.

【Compact Design】Easily adaptable to various vehicle types with simple installation.

【1080P HD】Delivers clear and reliable visual support for enhanced driver awareness.

Image Device

1/2.9＂CMOS

Frame Rate

25/30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.8 μm x 2.8 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

Signal to Noise Ratio

38dB

White Balance

Auto

Exposure

Auto

Dynamic Range

81dB

Power Supply

DC12V

Operating Temp. & humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & humidity

–30℃ ~ 80℃, RH95%MAX.

Viewing Angle after Correction

Horizontal: 141° Vertical: 77°

Lens

4G

Image Mode

Color

Power Consumption

No IR: 1.000W (±10%) / With IR: 2.000W (±10%)

STONKAM Rear View and Reversing Monitoring System — Your Reliable Solution! Effectively addresses the safety and compliance challenges above.

R158 Compliant — Enhancing Reversing Safety

Application

STONKAM 1080P HD Rear View and Reversing Monitoring System meets UN ECE R158 requirements, providing drivers with a clear and wide rear view. It’s an ideal solution for improving reversing safety and achieving smooth regulatory approval in global markets.
