AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System

AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System

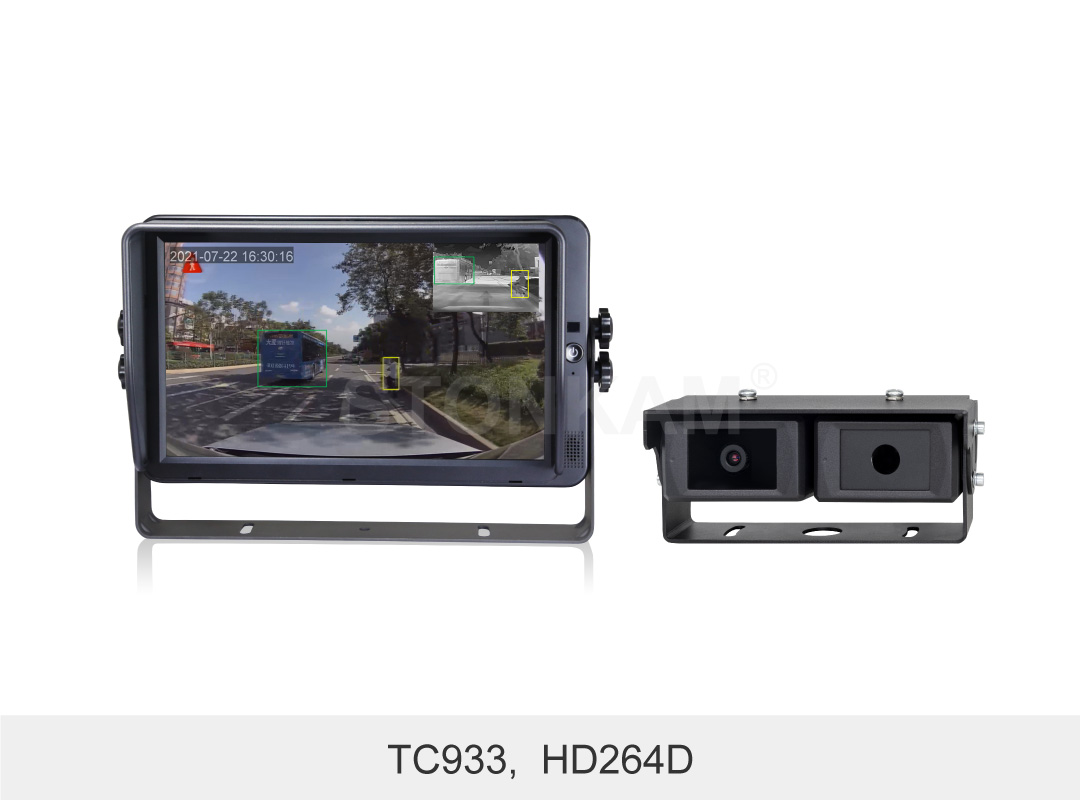

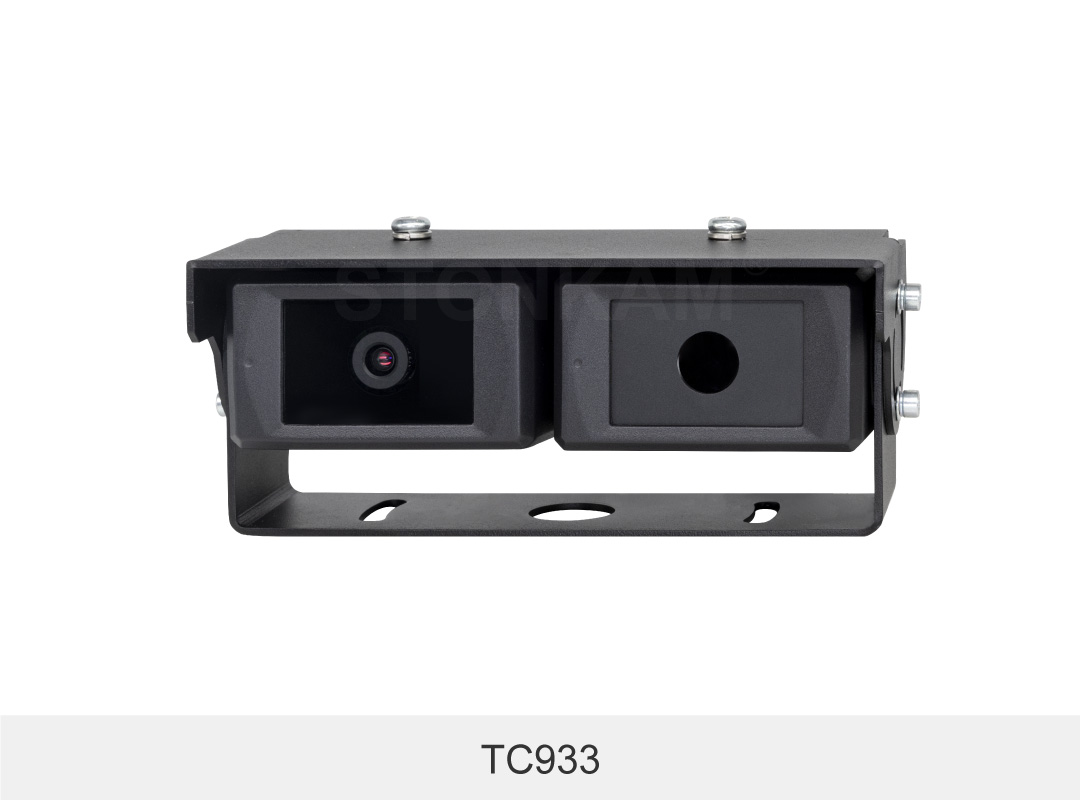

TC933, HD264D

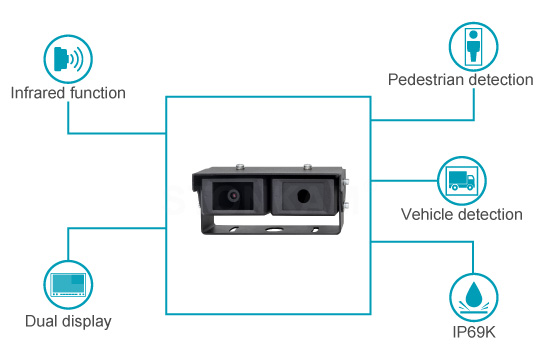

AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System can solve visual problems in dark night, foggy day and glare environment by combining thermal imaging with visible light detection on pedestrians & vehicles and displaying their images at the same time. This system also features quick and accurate recognition, stability and easy installation. It can be widely applied to construction machines to ensure operation safety.

Anfrage

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

Easy installation
IP69K waterproof and dustproof; 5.3g anti-vibration rating
Pedestrian detection range: 0.5M-15M
Vehicle detection range: 0.5M-40M
Infrared camera lens: 3.2mm, 53° horizontal viewing angle
Visible light camera lens: 6mm/2.3mm, 50°/140° horizontal viewing angle
FHD 1920X1080P video output (with pedestrian & vehicle detection frame and alarm frame)
Dual display, infrared image overlapping a small part of normal image
Alarm audio output to monitor or other devices with loudspeaker for sending sound alarms
Settings and calibration on web on mobile phone by connecting with WIFI hotspot
Automatic upgrading by USB flash drive

Power Supply	10 ~ 36V DC
Power Consumption	MAX. 2.5W
External Connector	8Pin mouse male connector on device; 4pin mouse female connector(power, video, audio), USB2.0 female connector and I/O alarm output wire on transition cable
Infrared Camera Module	256X192/25f
Built-in Visible Light Camera Module	1920X1080P/25f or 1920X1080P/30f
Video Output	1CH,AHD,1920X1080P
Operating Temperature	-20 ~ +70°C
Storage Temperature	-40 ~ 85℃
Infrared Camera Size	83X73X38(mm)
Visible Light Camera Size	95X60X70(mm)
Weight	640g
Color	Black

Why do we need AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System?

Construction machines work in complicated environment, where roads are too dark to be seen at night and bad weather or strong light often affect driving vision. Drivers cannot see pedestrians and vehicles clearly in these situations, which is a big challenge to driving safety!

Infrared Thermal Imaging Driver Assistance System

STONKAM AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System solves driving vision problem!

hd infrared waterproof camera

Dual display, double protection

STONKAM AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System can display visible light image and strong light image at the same time to ensure clear field of view on roads no matter what kind of environment you are in!

AI Dual Vision Infrared Thermal Imaging

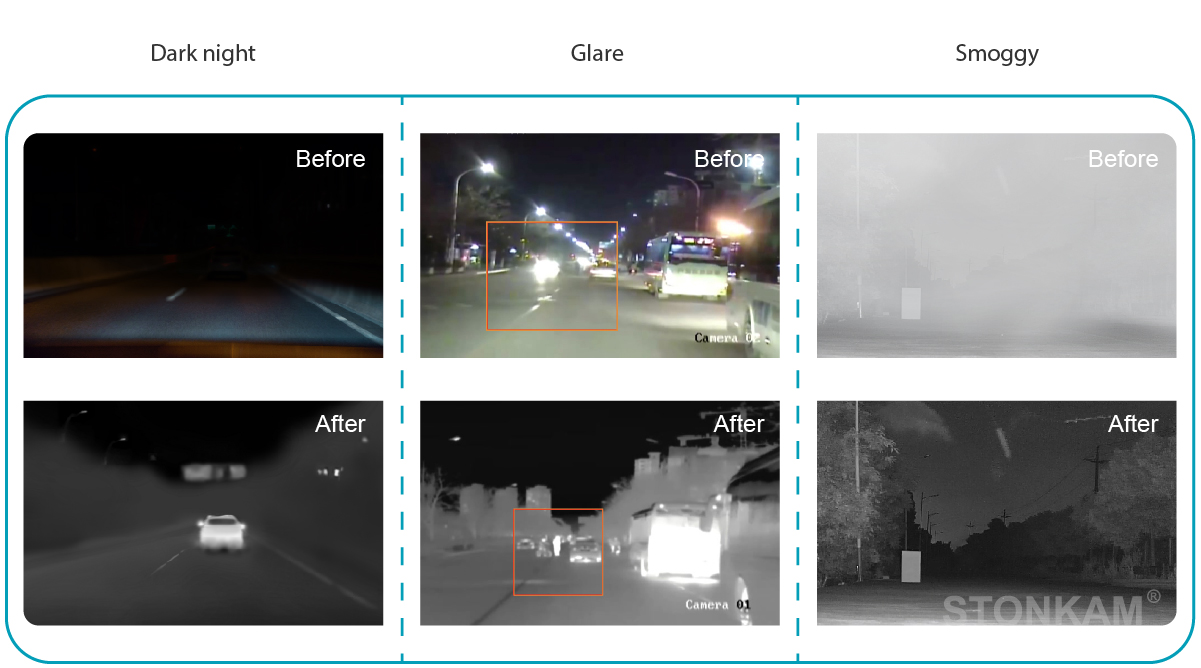

Anti-glare and penetrating smog

This thermal imaging device can protect driving vision against opposite vehicle headlights to ensure driving safety.

hd infrared waterproof camera

Detect pedestrian and vehicles to alert potential dangers

Applications

STONKAM AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System can be widely applied to various vehicles machines to ensure operation safety!

hd infrared waterproof camera

STONKAM® bedient ausschließlich Unternehmen. Bitte stellen Sie sicher, dass die E-Mail-Adresse des Unternehmens sowie die Angaben zum Land/der Region korrekt sind. Wir werden Ihnen so schnell wie möglich antworten!

Merkmale

Easy installation

IP69K waterproof and dustproof; 5.3g anti-vibration rating

Pedestrian detection range: 0.5M-15M

Vehicle detection range: 0.5M-40M

Infrared camera lens: 3.2mm, 53° horizontal viewing angle

Visible light camera lens: 6mm/2.3mm, 50°/140° horizontal viewing angle

FHD 1920X1080P video output (with pedestrian & vehicle detection frame and alarm frame)

Dual display, infrared image overlapping a small part of normal image

Alarm audio output to monitor or other devices with loudspeaker for sending sound alarms

Settings and calibration on web on mobile phone by connecting with WIFI hotspot

Automatic upgrading by USB flash drive

Power Supply

10 ~ 36V DC

Power Consumption

MAX. 2.5W

External Connector

8Pin mouse male connector on device; 4pin mouse female connector(power, video, audio), USB2.0 female connector and I/O alarm output wire on transition cable

Infrared Camera Module

256X192/25f

Built-in Visible Light Camera Module

1920X1080P/25f or 1920X1080P/30f

Video Output

1CH,AHD,1920X1080P

Operating Temperature

-20 ~ +70°C

Storage Temperature

-40 ~ 85℃

Infrared Camera Size

83X73X38(mm)

Visible Light Camera Size

95X60X70(mm)

Weight

640g

Color

Black

Construction machines work in complicated environment, where roads are too dark to be seen at night and bad weather or strong light often affect driving vision. Drivers cannot see pedestrians and vehicles clearly in these situations, which is a big challenge to driving safety!

Dual display, double protection

STONKAM AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System can display visible light image and strong light image at the same time to ensure clear field of view on roads no matter what kind of environment you are in!

Detect pedestrian and vehicles to alert potential dangers

Applications

STONKAM AI Dual Vision Infrared Thermal Imaging Pedestrian & Vehicle Detection System can be widely applied to various vehicles machines to ensure operation safety!
